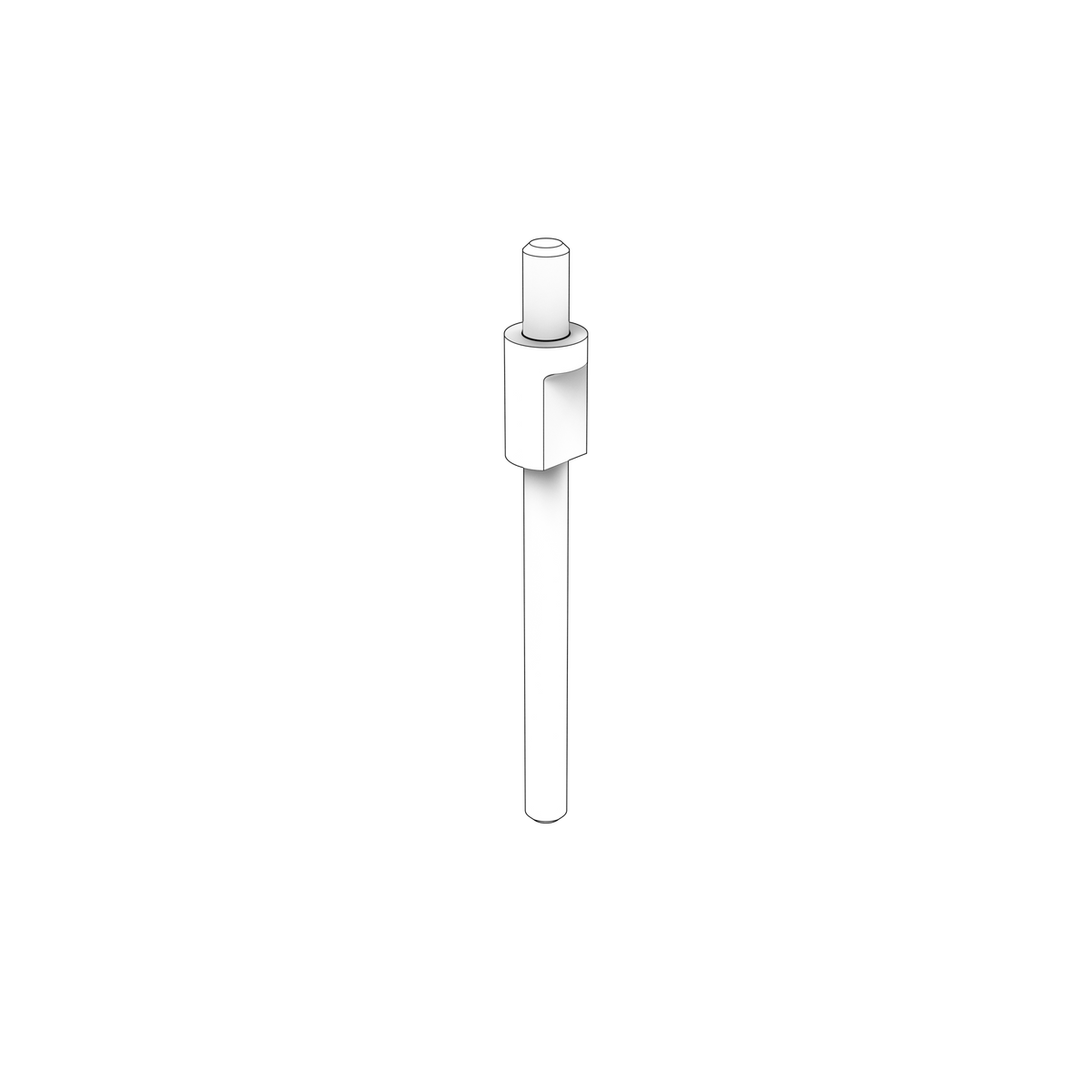

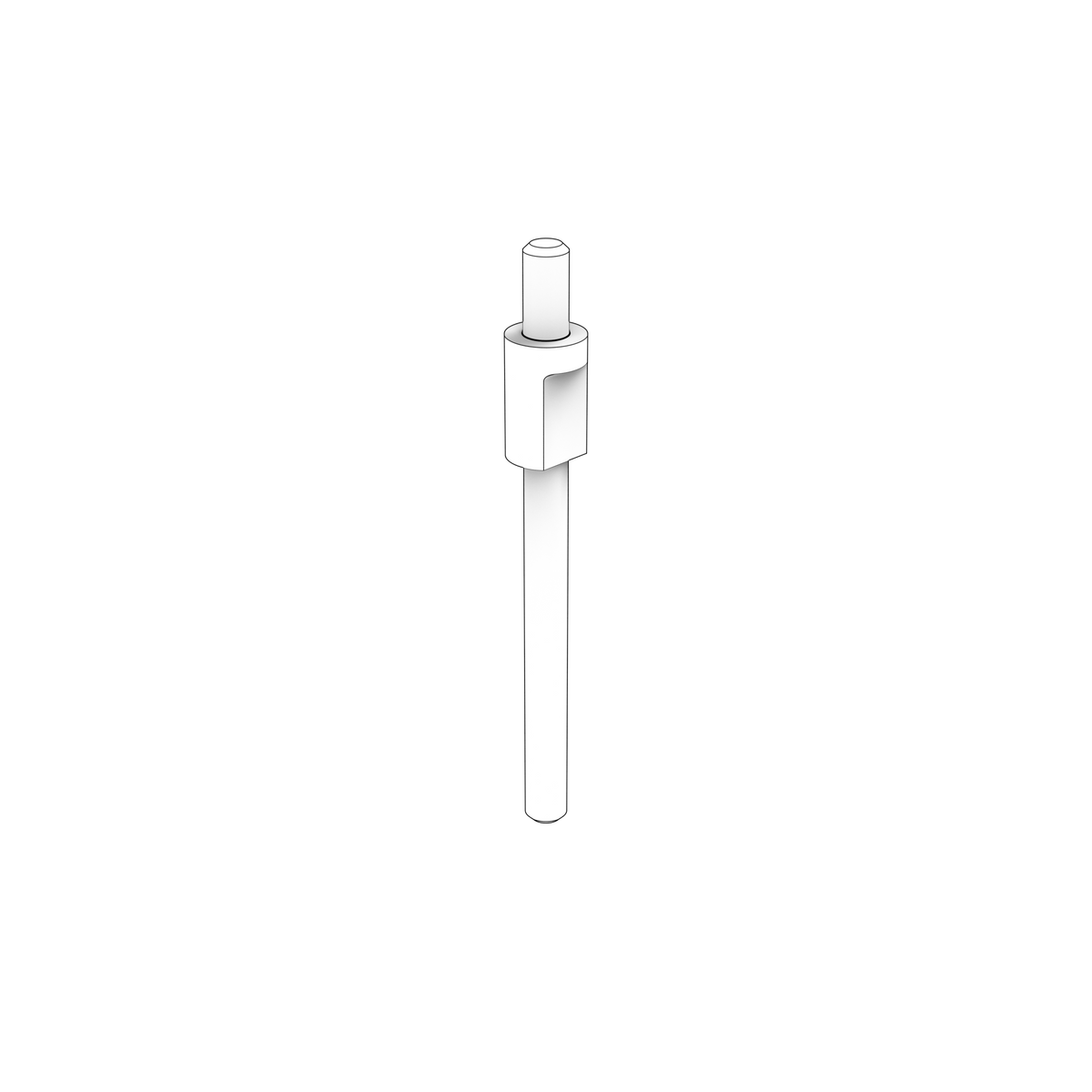

21211781 Rod | Genuine Volvo Penta Part

🔧 Product Description

Genuine threaded rod used in metal-hull transom-anode mounting kit 21211763. It mechanically secures and electrically bonds the anode components using the specified nuts, washers, O-rings and shim.

🚤 Compatibility

• Engine Family: IPS, D, V, DPH, DPI, DPR
• HP Range: 140-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Component of mounting kit 21211763
• Provides mechanical retention and electrical bonding
• Factory thread and installed length
• Designed for metal-hull corrosion-protection systems
• Supplied as one rod only
• 2 used per assembly

🔌 Function

The rod secures and bonds the anode-mounting components so sacrificial corrosion protection can operate correctly.

⚠️ Common Signs of Failure

• Corroded or damaged threads
• Loose anode assembly
• Poor electrical bonding
• Protected components corroding despite anode material remaining
• Water leakage around damaged O-rings

🛠️ Service Notes

• Check the rod for straightness and its ends for wear or damage before fitting — a bent rod cannot be corrected by refitting and will bind or carry its load off-line
• Note its orientation and fitted position on removal; many rods are handed or are only correct one way round
• Fit without forcing, secure all locknuts, pins and clips, and tighten to the figures in the workshop manual for your engine
• Check it moves freely through its full travel by hand, with no tight spot or fouling, before the engine is run

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21211763 - Complete mounting-kit reference
• 21211765 - Mounting shim; ordered separately
• 975692 - O-rings; ordered separately
• 975652 - O-rings; ordered separately
• 991657 - Hexagon nut; ordered separately
• 991658 - Washers; ordered separately
• 991659 - Washers; ordered separately
• 991660 - Toothed washer; ordered separately
• 23172846 - Applicable anode-kit references by installation version
• 23172853 - Applicable anode-kit references by installation version

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-C-J, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-CE-O, V6-240-J, V6-240-C-J
• Volvo Penta V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-380-CE-N, V8-430-CE-N
• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-400A-F
• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C5-B MP, D13C6-A MP, D13C4-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-E MP
• Volvo Penta D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta IPS15-C, IPS15-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
• Volvo Penta DPI-A
• Volvo Penta DPR-D
• Volvo Penta IPS2-C
• Volvo Penta IPS40-A
