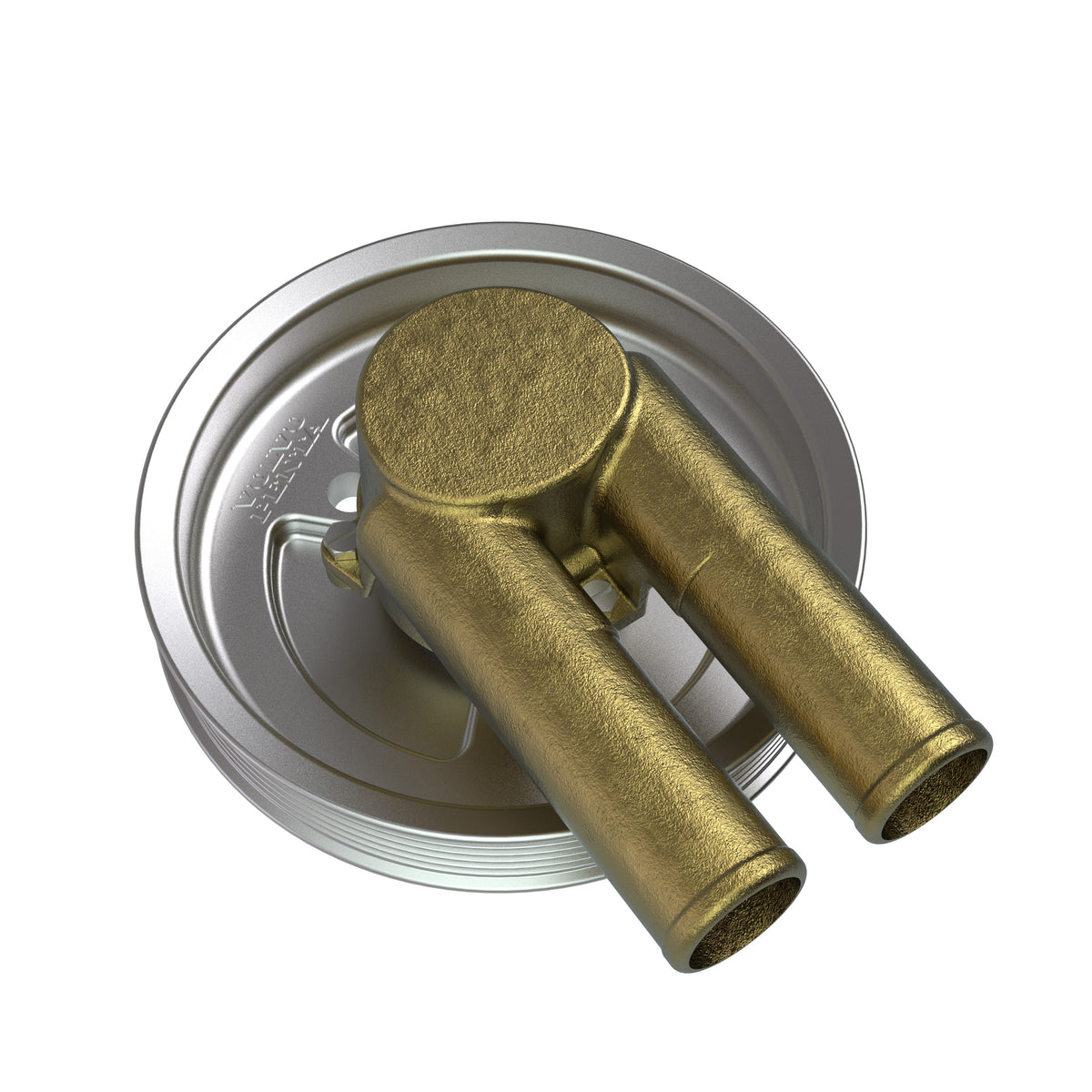

21214599 Seawater Pump | Genuine Volvo Penta Part

🔧 Product Description

Genuine flexible-impeller seawater pump for selected Volvo Penta GM-based petrol engines using the serpentine-pulley pump layout.

🚤 Compatibility

Full model list at the end of this description.

⚙️ Key Features

• Serpentine-drive petrol-engine seawater pump
• Used across inline-four, V6 and V8 engine families
• Verified Johnson and JMP cross-references
• Flexible-impeller positive-displacement design
• Rebuild components remain serviceable

🔌 Function

The pump draws seawater through the intake and circulates it through the engine, heat exchanger, oil cooler and wet-exhaust system as applicable.

⚠️ Common Signs of Failure

• Reduced or intermittent exhaust-water discharge
• Missing, cracked or permanently set impeller vanes
• Seawater leakage from the shaft seal
• Bearing or pulley noise
• Scored cover plate or worn pump cam
• Loss of prime caused by air leakage or corrosion

🛠️ Service Notes

• Close the seacock before starting work, and make sure it is fully open again before the engine is started
• Never let the pump run dry — an impeller can be ruined in seconds without water, so fill the strainer or pour water into the pump housing to help it pick up prime after fitting
• Renew the O-rings, gaskets and hose clips on refitting, and check the hoses and strainer for perishing, softening and blockage while access is good
• Check drive belt condition and pulley alignment where the pump is belt driven, and turn the engine over by hand before starting to be sure nothing binds
• Start up and confirm a strong, steady discharge with the exhaust water, then check the pump body and joints for weeps and check again after the first proper run

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21214599 → Supersedes 3812693 → Supersedes 3862482 → Supersedes 3857202

OEM / Related Numbers

• 3812693 earlier number superseded by this part
• 3862482 earlier number superseded by this part
• 3857202 earlier number superseded by this part
• 3857954 - Stop lug used on specified versions; ordered separately

Other-Brand OEM Numbers

• Johnson Pump 10-13468-01
• Johnson 09-5000 / Poseidon Marine PM3858229 family - Rebuild-kit references requiring pump confirmation

Aftermarket / Verified Equivalents

• JMP Marine: JPR-VP4599G

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GSiPEFS, 5.7GXi-A, 5.7GXi-B, 5.7GXi-C, 5.7GXi-CF, 5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF, 5.7GXi-F, 5.7OSXi-D, 5.7OSXi-DF, 5.7GXiI-C, 5.7GXiI-D, 5.7GXiI-E, 5.7GXiI-F, 5.7OSi-A, 5.7OSi-AF, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF, 5.7OSXi-A, 5.7OSXi-AF, 5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF, 5.0OSi-DF, 5.0OSi-E, 5.0OSi-EF, 5.7Gi-A, 5.7Gi-B, 5.7Gi-BF, 5.7Gi-C, 5.7Gi-CF, 5.7Gi-D, 5.7Gi-DF, 5.7Gi-E, 5.7Gi-EF, 5.7OSi-D, 5.7OSi-DF, 5.7GiI-A, 5.7GiI-B, 5.7GiI-C, 5.7GiI-D, 5.7GiI-E, 5.0GiPEFS, 5.0GXi-D, 5.0GXi-DF, 5.0GXi-E, 5.0GXi-EF, 5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0GXi-A, 5.0GXi-B, 5.0GXi-BF, 5.0GXi-C, 5.0GXi-CF, 5.0OSi-BF, 5.0OSi-B, 4.3GIPEFS, 4.3GXi-A, 4.3GXi-B, 4.3GXi-BF, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3OSi-BF, 4.3OSi-B, 4.3OSi-C, 4.3OSi-CF, 4.3OSi-D, 4.3OSi-DF, 4.3OSi-E, 4.3OSi-EF, 3.0GSPEFS
