21220706 Dp-H Trim Sender Kit | Genuine Volvo Penta Part

🔧 Product Description

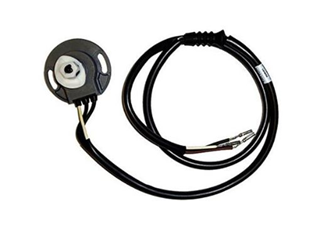

A genuine Volvo Penta trim-position sender kit for DPH-A and DPR-A drives. The sealed sender and cable report drive angle to the EVC / trim instrument system so the operator can monitor and limit drive trim. The kit is the service replacement for the drive-mounted trim-sender assembly and is associated with earlier sender reference 889064 in supplier catalogues.

🚤 Compatibility

• Engine Family: D, TSK, DPH, DPR
• HP Range: 225-400 HP
• Year Range: Approximately 2000s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta DPH-A / DPR-A trim-sender kit
• Drive-angle feedback for trim display and control
• Sealed marine sender and cable assembly
• Factory mounting and adjustment geometry
• Earlier related sender reference 889064
• Engine type: Volvo Penta Aquamatic sterndrive trim-position system

📋 Kit Contents

• 21220706 trim-position sender assembly - 1
• 21220706 integral sender cable / harness - 1
• 21220706 sealing components - 1 set
• 21220706 mounting and adjustment hardware - 1 set
• Volvo Penta does not publish separate service numbers for the internal kit pieces; all included parts are serviced under kit number 21220706

🔌 Function

The sender converts the mechanical drive angle into an electrical signal used by the trim gauge, EVC system and trim-limit functions.

⚠️ Common Signs of Failure

• Trim display is blank, erratic or inaccurate
• Drive-angle value jumps as the drive moves
• Sender cable is cut, water-damaged or corroded
• Trim limit or beach-range indication is incorrect

🛠️ Service Notes

• Zero the sender with the drive trimmed dead amidships before final adjustment, so the EVC trim display and any trim-limit function read correctly from that reference point
• This kit supersedes 3809335 and, before that, 889064 — an installation still listed under either older number takes the same sender assembly
• It is commonly supplied as a special-order item that becomes non-returnable once the order is processed, so confirm the exact drive type (DPH-A vs DPR-A) before ordering, not just the engine model

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21220706 → Supersedes 3809335 → Supersedes 889064

OEM / Related Numbers

• 3809335 earlier number superseded by this part
• 889901 earlier number superseded by this part
• 889064 related reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-330A-D, D6-330A-C, D6-370A-D, D6-330A-E, D6-370A-E, D6-280I-D, D6-310I-D, D6-330I-C, D6-330I-D, D6-280A-C, D6-310A-C, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-400A-E
• Volvo Penta D4-260A-C, D4-260A-D, D4-260A-E, D4-300A-C, D4-300A-D, D4-300A-E, D4-225I-C, D4-225I-D, D4-225A-C, D4-225A-D, D4-225A-E
• Volvo Penta DPH-A
• Volvo Penta DPR-A
• Volvo Penta TSK DPH-A
