21221046 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

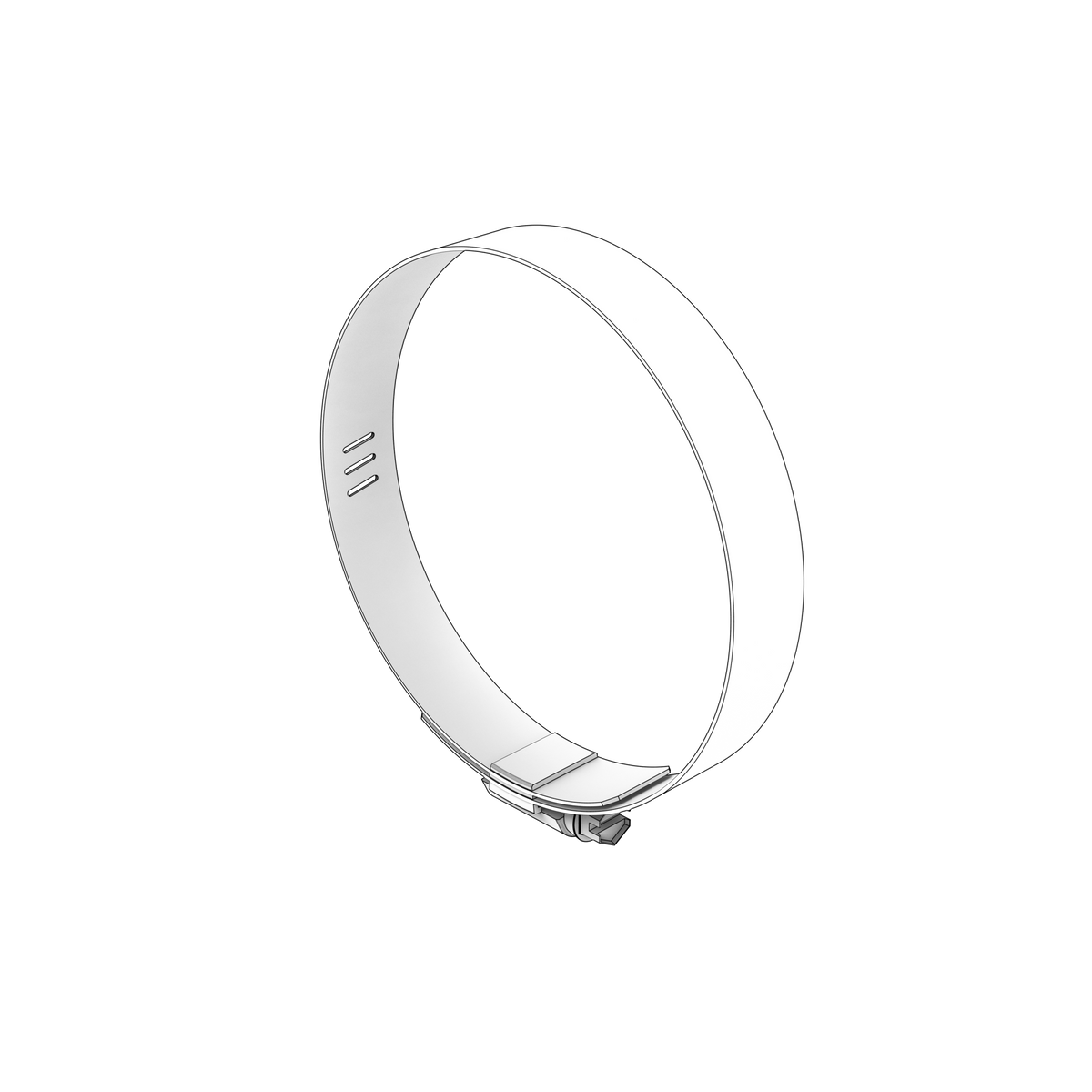

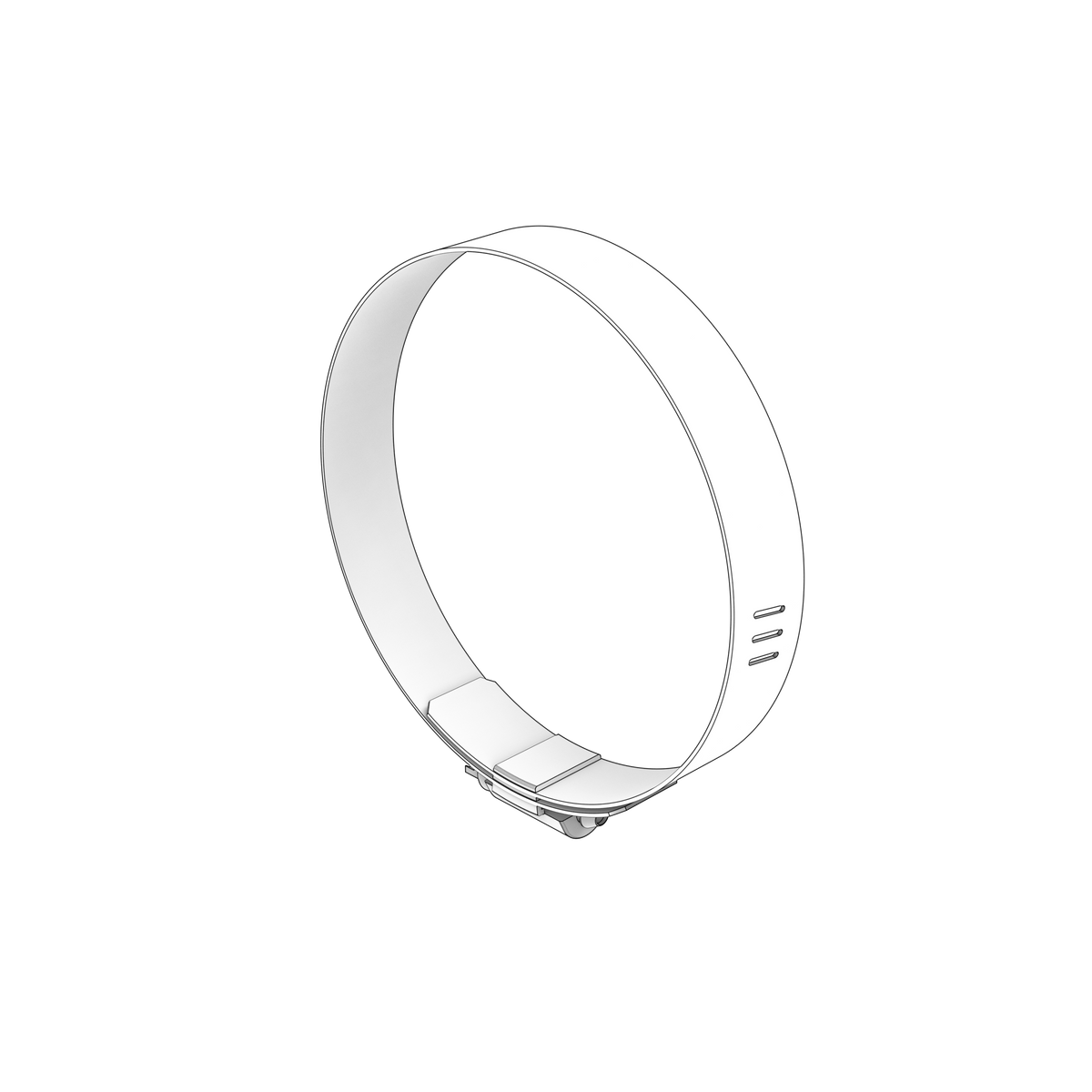

Genuine hose clamp used at the throttle-body and flame-arrester hose connection of selected Volvo Penta V8 petrol marine engines. It must provide an airtight seal without distorting the throttle-body hose.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Confirmed throttle-body air-intake application
• Used on 5.0GXi and V8-300/V8-320 engine configurations
• Correct factory clamping range
• Designed for intake vacuum, heat and vibration
• Maintains an airtight intake connection

🔌 Function

The clamp secures the intake hose or flame-arrester connection to the throttle body and prevents unmetered air leakage.

⚠️ Common Signs of Failure

• Loose intake hose
• Whistling or intake-air leakage
• Unstable idle
• Clamp band cracking or distortion
• Damaged screw mechanism

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21141689 - Throttle body; ordered separately
• 3849022 - Throttle-body gasket; ordered separately
• 3858964 - Stud; ordered separately
• 21651300 - Bracket; ordered separately
• 3887565 - Flame arrester; ordered separately
• 3853546 - Related hose; ordered separately
• 21697113 - Outer sheath; ordered separately

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXiE-P, 5.7GXi-P, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiC-JF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A
