21223174 Cylinder Liner Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta complete single-cylinder overhaul kit for later-revision D12 marine and industrial engines. It contains the liner, piston, rings, piston pin, clips and sealing components required to rebuild one cylinder. The later liner design applies from engine serial 1012638800. On engines built before this change, Volvo requires all six cylinders to be converted together using overhaul kit 21223179.

🚤 Compatibility

Typically suits:

• Volvo Penta D12C-A MP
• Volvo Penta D12D-A MG
• Volvo Penta D12D-A MH
• Volvo Penta D12D-A MP
• Volvo Penta D12D-B MH
• Volvo Penta D12D-C MH
• Volvo Penta D12D-E MG
• Volvo Penta D12D-E MH
• Volvo Penta D12D-G MH
• Volvo Penta TMD122A
• Volvo Penta TAMD122A
• Volvo Penta TAMD122A/C
• Volvo Penta TAMD122P-A
• Volvo Penta TAMD122P-B
• Volvo Penta TAMD122P-C

• Engine Family: D, TMD, TAMD
• Year Range: Approximately 2000s - 2010s
• Serial Range: From serial number 1012638800., When replacing the cylinder liner for engines up to SN-1012638800, all cylinder liners should be replaced. Also order 6pcs of connecting rod 21160343.

⚙️ Key Features

• Genuine Volvo Penta later-revision D12 cylinder kit
• Applies from engine serial 1012638800
• One complete kit for one cylinder
• Six kits required for a complete later engine
• Engine type: Volvo 12.1-litre inline 6-cylinder turbocharged diesel
• 6 used per assembly

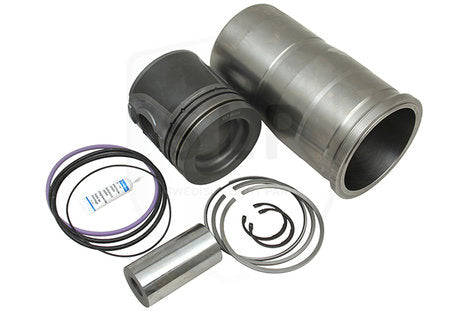

📋 Kit Contents

• 21223174 cylinder liner - 1
• 21099425 piston - 1
• 21223178 piston ring kit - 1
• 3155115 gudgeon / piston pin - 1
• 914530 piston-pin snap ring - 2
• 270950 cylinder-liner sealing and gasket kit - 1

🔌 Function

The kit restores the piston, cylinder bore, compression seal, oil control and liner-to-block coolant sealing for one cylinder.

⚠️ Common Signs of Failure

• Compression is low or crankcase blow-by is excessive
• Liner is scored, cavitated or cracked
• Piston or rings are damaged
• Coolant enters the crankcase around the liner seals
• Early and late liner designs have been mixed in one engine

🛠️ Service Notes

• Clean the liner seats and the O-ring grooves in the block thoroughly and check them for corrosion pitting or fretting before any liner goes in — a poor seat is the usual cause of a repeat failure
• Measure liner protrusion above the block face dry, without the O-rings fitted, taking readings at several points around each liner and comparing them with the figures in the workshop manual for your engine — and do not try to correct insufficient protrusion by stacking extra rings or shims under the liner flange
• Keep each liner with its own bore position once measured, and fit the O-rings in the order and orientation specified, lubricated as the manual directs
• Fit the liners with an appropriate press or drawing arrangement so they go in square, never by hammering
• Protect the finished bores from rust and knocks until the pistons go in, and never run a new liner against worn or reused rings

🔄 Supersession & Cross Reference

OEM Supersession Chain

• Early engines must be converted as a complete set with 21223179

OEM / Related Numbers

• 21223178 included piston-ring-kit family
• 21099425 included piston family
• 3155115 included gudgeon pin
• 914530 included snap ring
• 270950 included cylinder sealing / gasket kit
• 21223179 six-cylinder conversion / overhaul kit

Aftermarket / Verified Equivalents

• SLP: CLK-174
• Mopa / heavy-engine suppliers: D12 liner kit by comparison number 21223174

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
