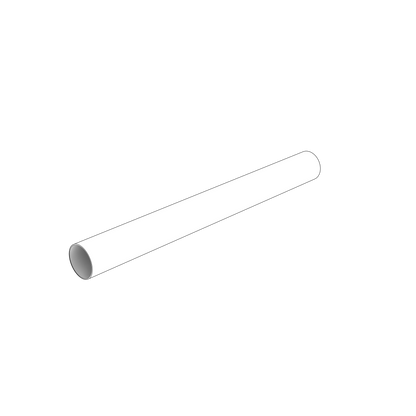

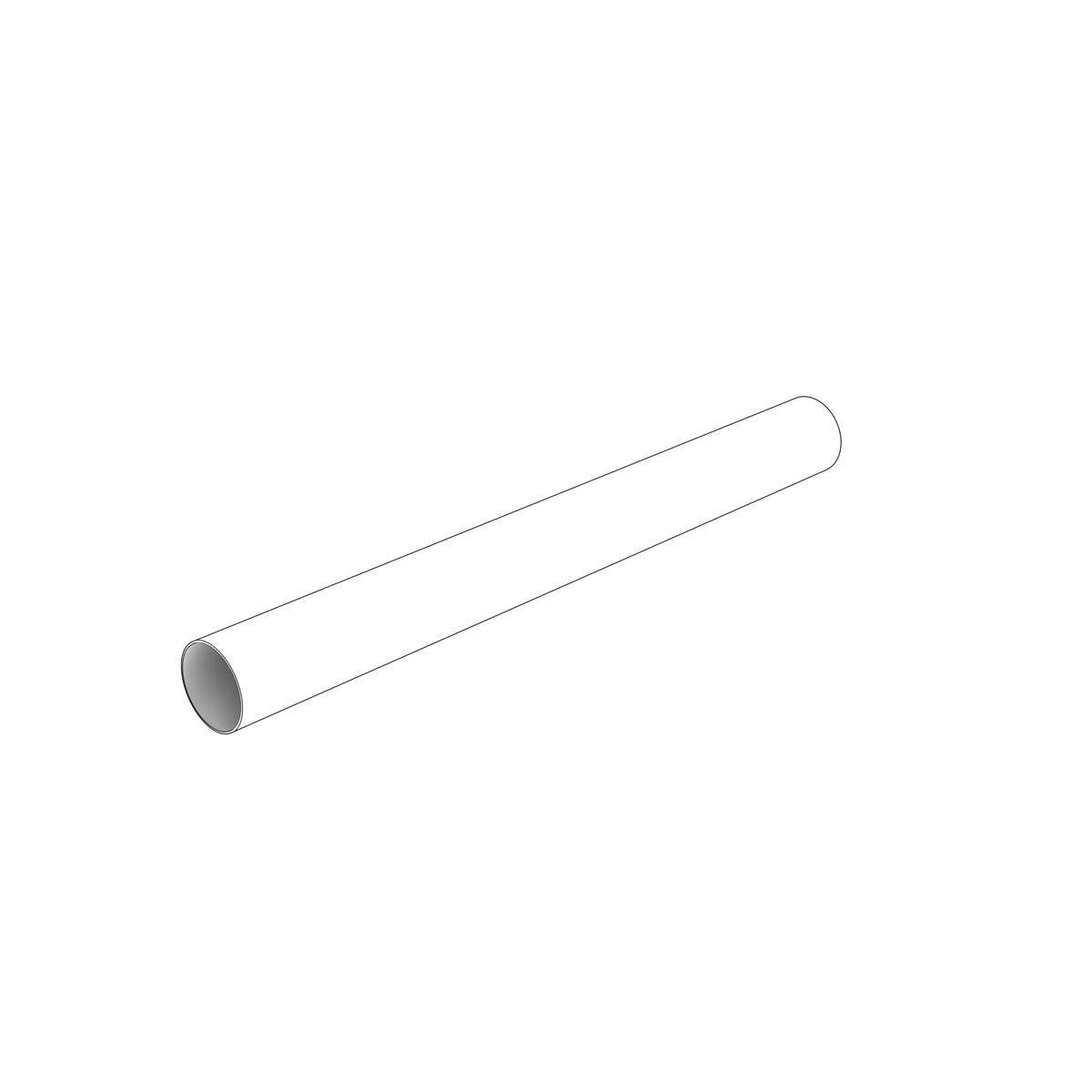

21227463 Exhaust Hose | Genuine Volvo Penta Part

🔧 Product Description

A formed wet-exhaust hose for Volvo Penta D13 IPS installations with approximately 1100-1200 mm jack-shaft spacing. Its length and flexibility allow the engine exhaust outlet to be connected without imposing excessive load on adjoining components.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C2-B MP
• Volvo Penta D13C2-A MP
• Volvo Penta D13C4-A MP
• Volvo Penta D13B-L MP
• Volvo Penta D13B-G MP
• Volvo Penta D13B-K MP
• Volvo Penta D13B-C MP
• Volvo Penta IPS30-E
• Volvo Penta D13C6-A MP
• Volvo Penta IPS3-C
• Volvo Penta D13C4-B MP
• Volvo Penta D13C5-B MP
• Volvo Penta D13C5-A MP
• Volvo Penta IPS30-D
• Volvo Penta IPS3-A
• Volvo Penta D13C7-B MP
• Volvo Penta D13C8-B MP

• Engine Family: D, IPS

⚙️ Key Features

• Nominal 8-inch diameter
• Intended for approximately 1100-1200 mm spacing
• Reinforced for marine exhaust service
• Direct replacement where part number 21227463 is specified
• Engine type: D13 inline-six turbocharged marine diesel

🔌 Function

Carries the water-cooled exhaust stream while absorbing vibration and relative movement between the engine and fixed exhaust system.

⚠️ Common Signs of Failure

• Cracked or softened hose wall
• Exhaust-gas or cooling-water leakage
• Hose bulging under load
• Internal delamination
• Clamp imprinting or damaged reinforcement

🛠️ Service Notes

• Use only hose rated for marine wet exhaust duty; ordinary coolant or water hose softens and collapses at exhaust temperature
• Push the hose fully onto the spigot and double-clamp each connection where the fitting allows, using corrosion-resistant clamps staggered so the screws sit on opposite sides
• Support the run on brackets or slings along its length so that nothing hangs on the joints, and keep a continuous fall away from the engine with no sag that can pond water back towards the exhaust valves
• Keep the hose clear of sharp edges and hot metal, protect it wherever it can chafe, and make sure engine movement is not being absorbed by the hose alone
• Run the engine after fitting and check the joints for water weeping and for exhaust smell or soot streaks, then re-check the clamps once the hose has bedded in

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21609813 - exhaust hose clamp

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
