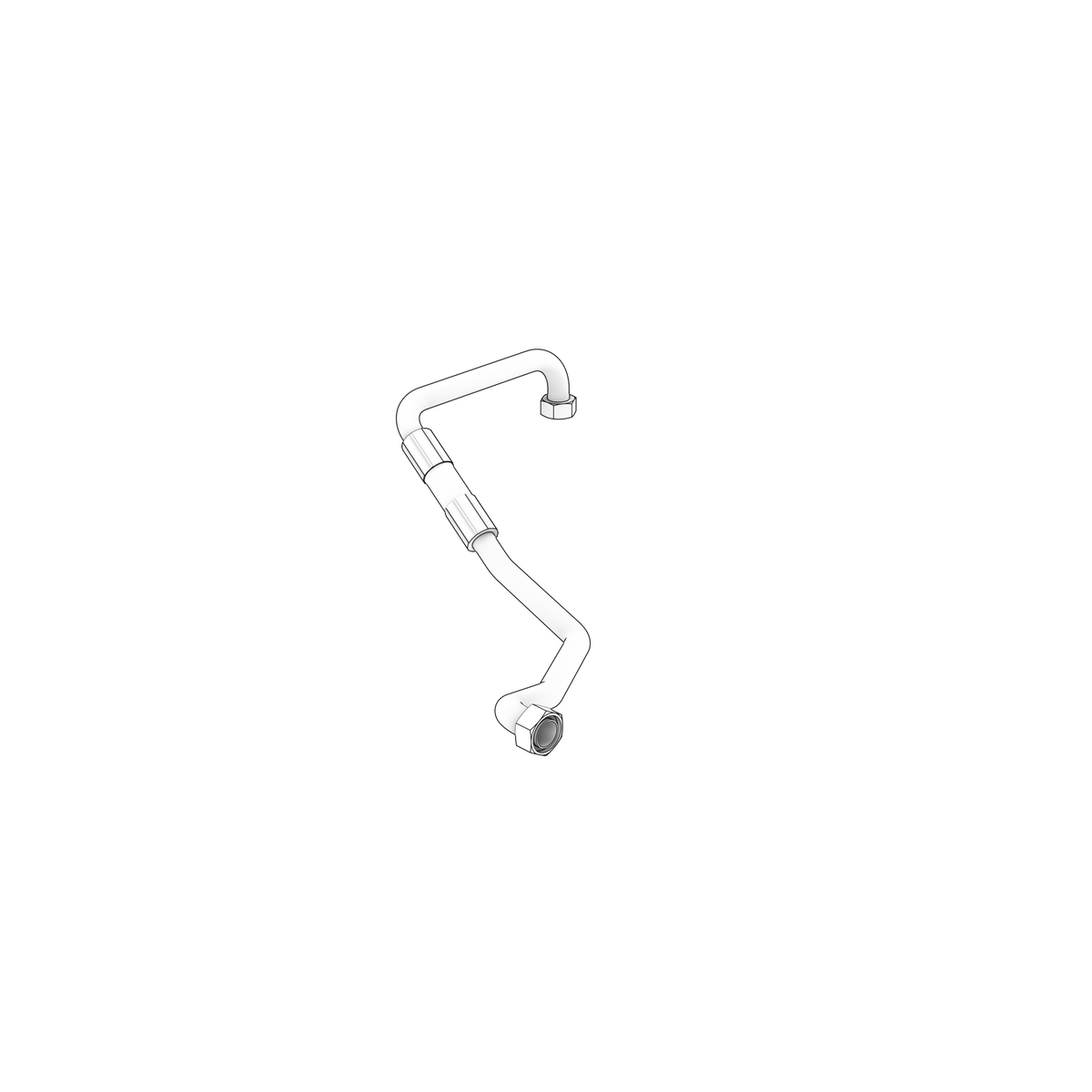

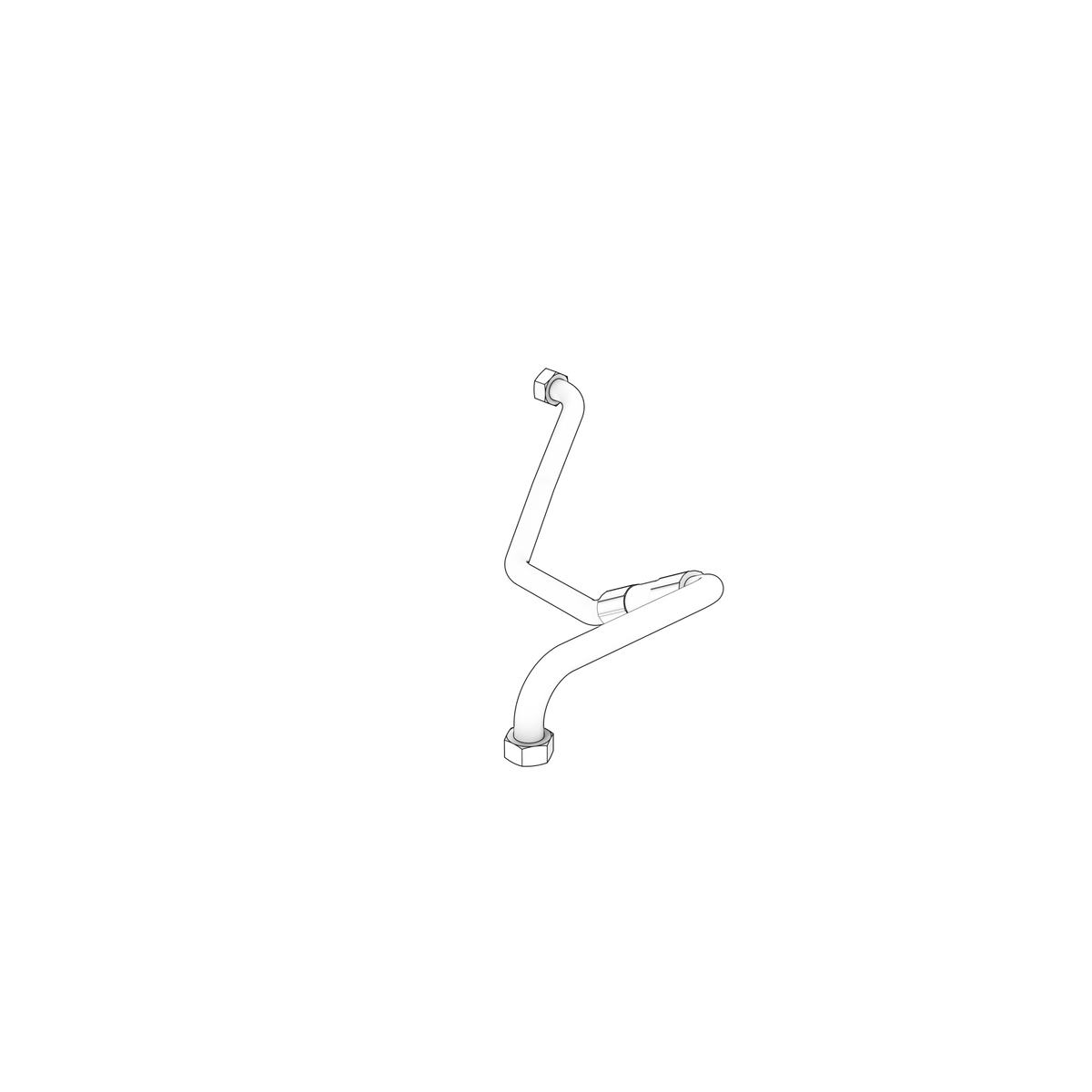

21239152 Oil Line | Genuine Volvo Penta Part

🔧 Product Description

A formed engine-oil line used in the oil-filter housing and lubrication circuit of selected Volvo Penta D11 marine engines. Fitment varies across engine serial breaks and IPS or conventional propulsion arrangements.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C1-A MP
• Volvo Penta D11C3-A MP
• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D11B3-A MP
• Volvo Penta D11B4-A MP
• Volvo Penta D11A-A
• Volvo Penta D11A-B
• Volvo Penta D11A-C
• Volvo Penta D11A-E
• Volvo Penta D11B2-A MP
• Volvo Penta D11A-C MP
• Volvo Penta D11A-D MP
• Volvo Penta D11A-E MP
• Volvo Penta D11A-C (IPS)
• Volvo Penta D11B1-A MP

• Engine Family: D

⚙️ Key Features

• Correct formed routing and end fittings
• Pressure- and temperature-resistant construction
• Direct replacement where part number 21239152 is specified
• Engine type: D11 inline-six turbocharged marine diesel

🔌 Function

Transfers pressurised or return engine oil between the filter housing and lubrication circuit.

⚠️ Common Signs of Failure

• Oil leakage at the unions
• Cracks caused by vibration
• Missing or broken support clamp
• Oil spray around the filter housing

🛠️ Service Notes

• Work clean and cap or plug both the line and its ports as soon as they are open — anything that gets into an oil line ends up at a bearing or in the turbocharger
• Renew the sealing washers, O-rings or gaskets at each end rather than reusing them, and start unions by hand so the seal is not loaded sideways
• Do not bend or reshape a line to make it reach; a line strained into place fatigues and cracks at the union
• Refit every clip and support bracket in its original position — an unsupported oil line chafes and fails through vibration
• After fitting, check oil level, run the engine and check the unions for leaks and the oil pressure for normal reading, then check again once hot

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21239152 → Supersedes 3885725

OEM / Related Numbers

• 3885725 earlier number superseded by this part
• 22685331 - later oil line
• 22689554 - lubrication pipe
• 21364605 - bracket
• 21363770 - clamp
• 21363776 - protective cover

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
