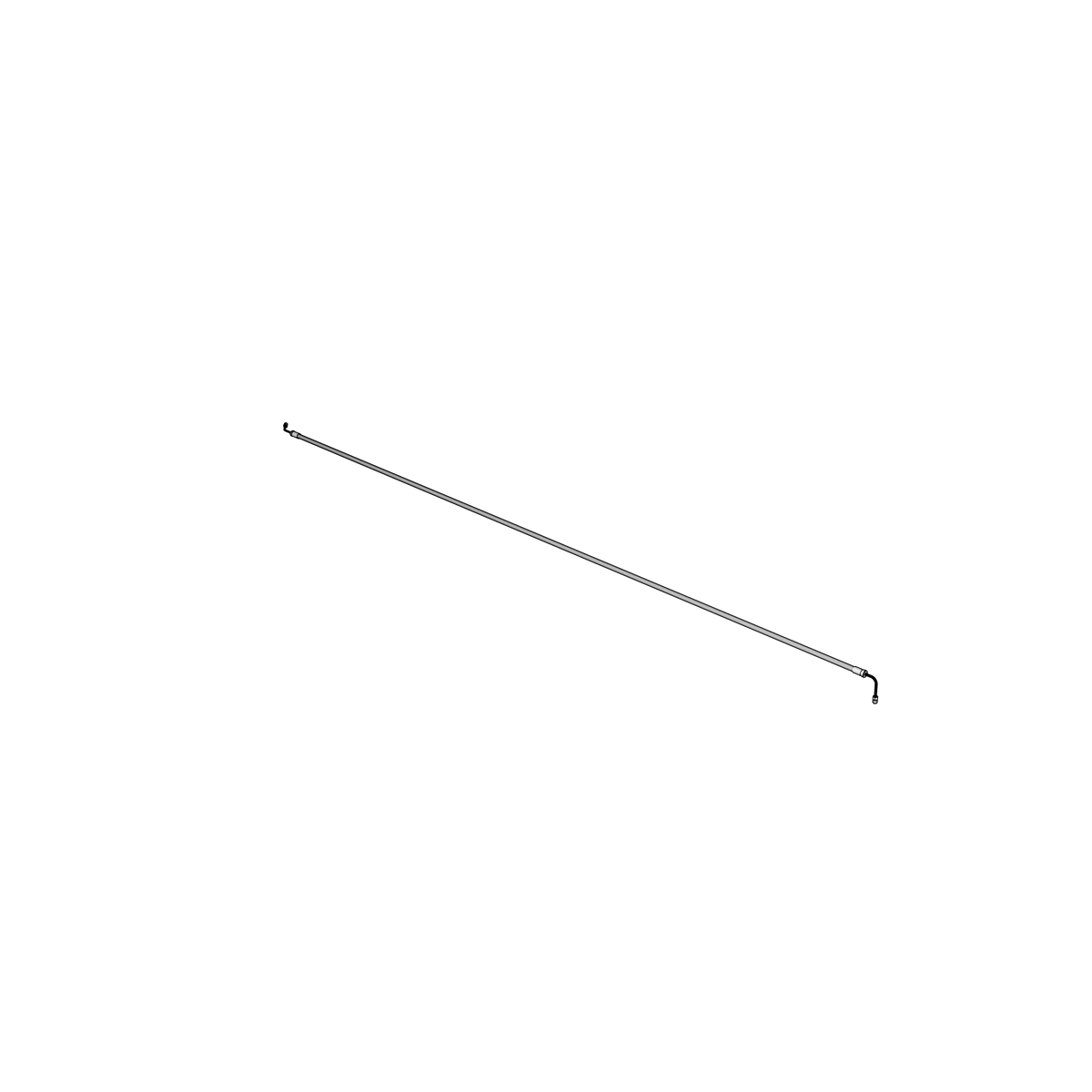

  • 21254107 Hydraulic Hose | Genuine Volvo Penta Part - photo 2 of 2
1 2

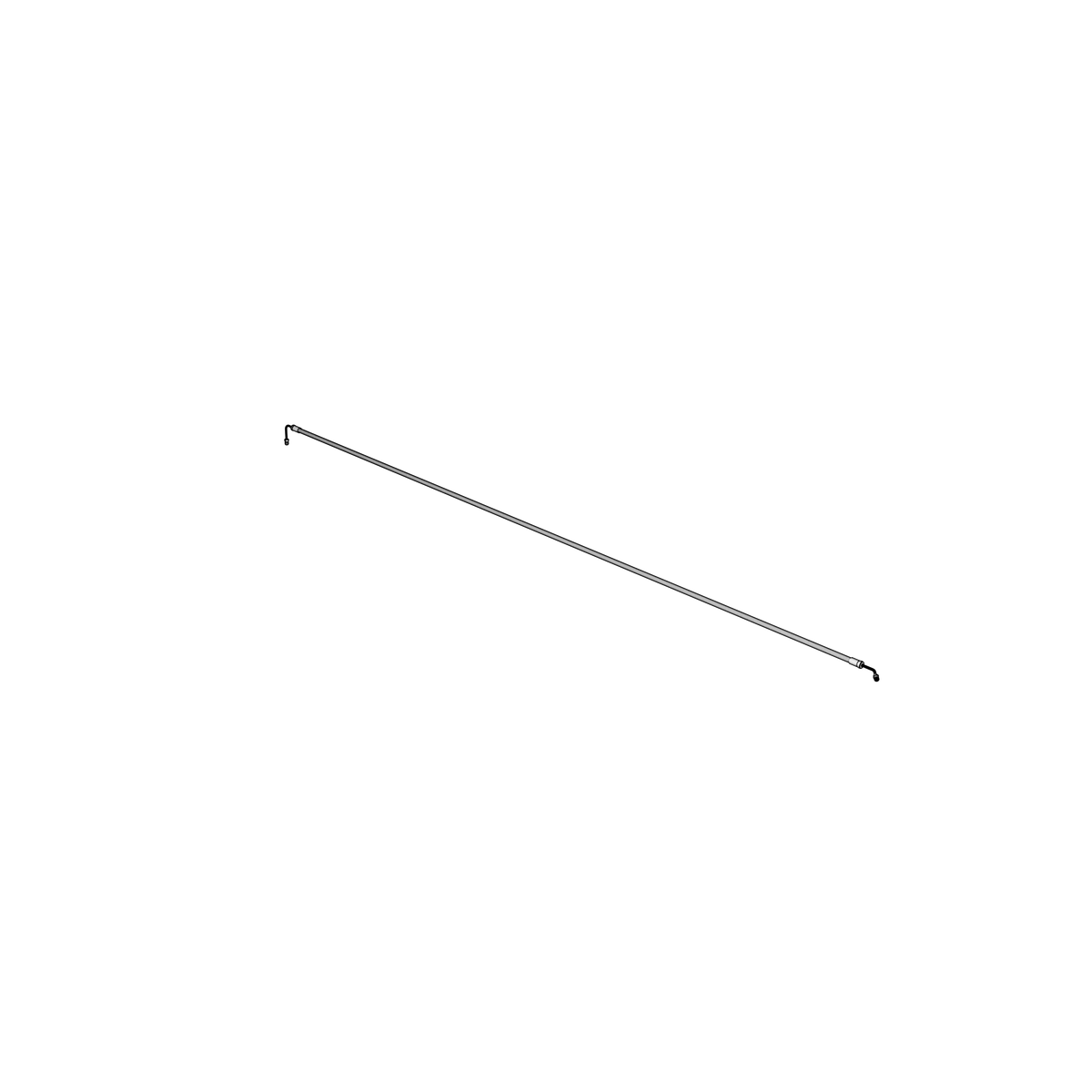

21254107 Hydraulic Hose | Genuine Volvo Penta Part

21254107 Hydraulic Hose | Genuine Volvo Penta Part

$345.27 AUD
$345.27 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine hydraulic hose installed at the designated steering-cylinder or valve connection on Volvo Penta DPH and DPR drives.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D
  • HP Range: 150-400 HP

⚙️ Key Features

  • Genuine Volvo Penta steering hose
  • Correct pressure rating and internal diameter
  • Factory-fitted hydraulic connectors
  • Designed for electronic steering systems
  • Flexible construction accommodates drive movement

🔌 Function

The hose transfers hydraulic pressure between the steering valve and actuator.

⚠️ Common Signs of Failure

  • Steering lag
  • Heavy or uneven steering
  • Hose rubbing or chafing
  • Bulging outer cover
  • Loose or leaking end fitting

🛠️ Service Notes

  • Cleanliness decides how long the job lasts — cap the open ends, keep dirt out of the ports, and wipe fittings before making them up, because contamination is what wrecks steering and trim components
  • Fit the hose without twist, holding the hose body while tightening the union so it is not wound up as the nut turns, and renew the sealing washers or O-rings rather than reusing them, tightening unions to the figure in the workshop manual for your engine
  • Route the hose with a generous sweep, clear of hot parts and sharp edges, and clip it so it cannot chafe or be pulled at either end through the full range of movement
  • Top up and bleed the system afterwards, cycle it through full travel several times, then recheck the fluid level and inspect the connections for weeps under pressure
  • Never search for a pressurised leak by hand — fluid escaping under pressure can penetrate skin

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
