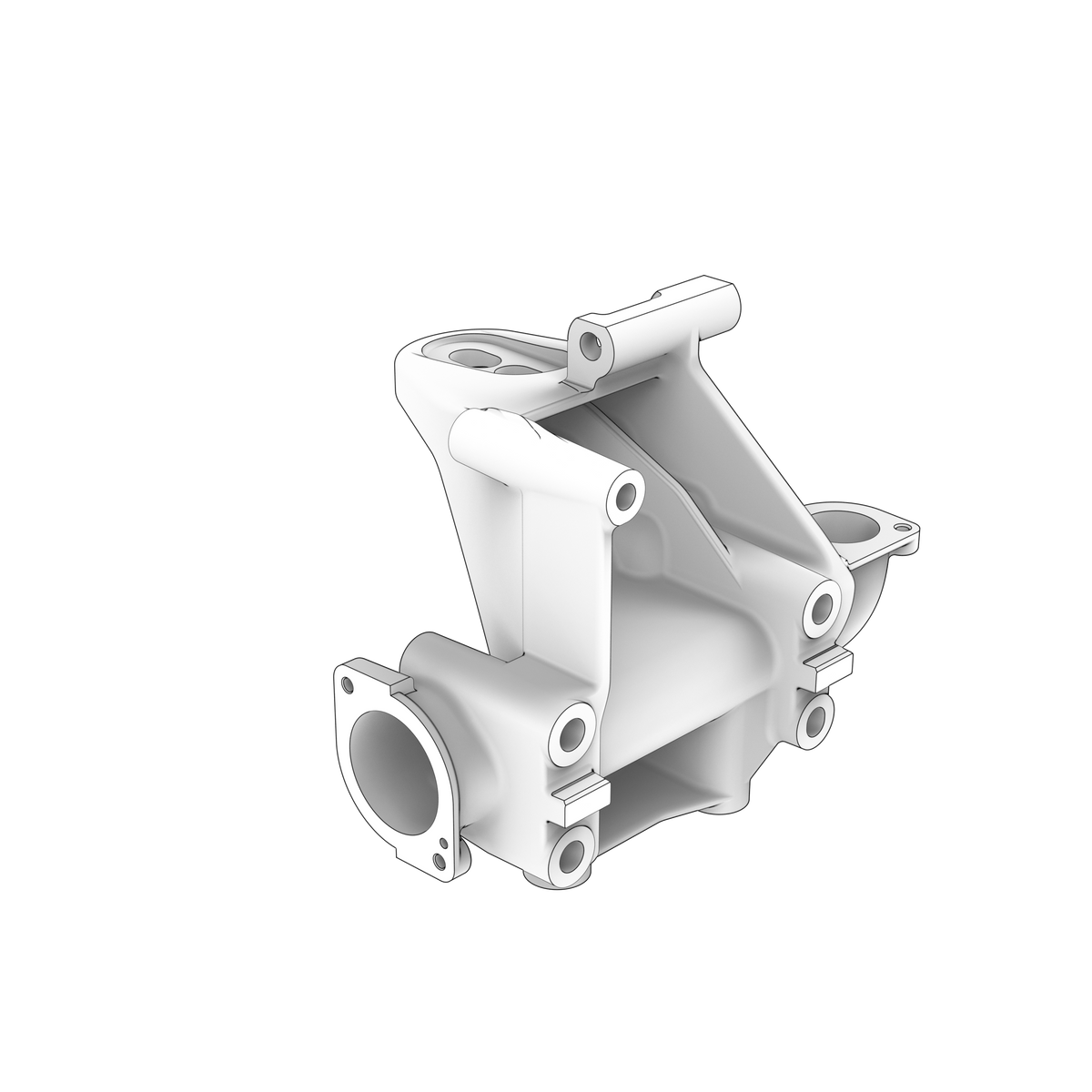

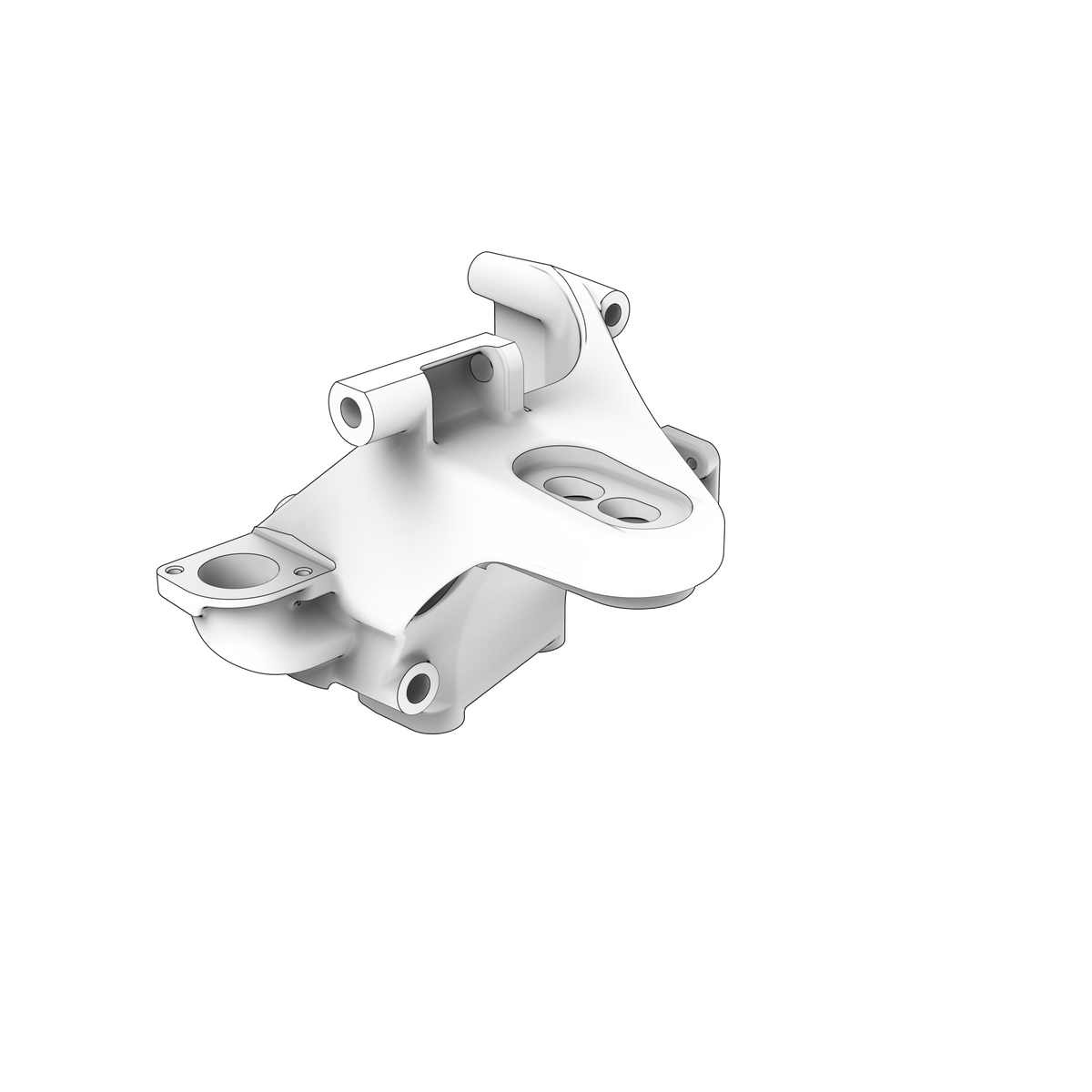

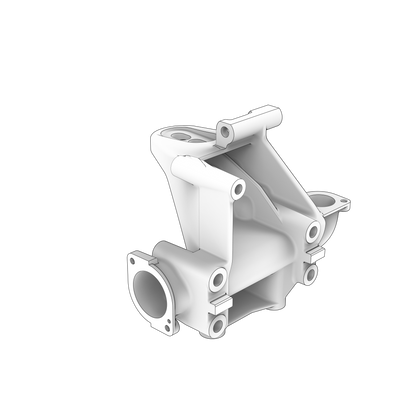

21256248 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine heavy-duty bracket used in the alternator, charging and electric-drive installation of Volvo Penta D13 marine propulsion engines.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta structural engine bracket
• Supports alternator and electrical-drive components
• Correct D13 mounting geometry
• Heavy-duty cast or fabricated construction
• Maintains belt and component alignment

🔌 Function

The bracket supports the alternator or associated electrical-drive hardware and maintains correct alignment under belt load and engine vibration.

⚠️ Common Signs of Failure

• Belt misalignment
• Alternator movement
• Fretting around bolt holes
• Broken or loose mounting fasteners

🛠️ Service Notes

• Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
• Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
• Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
• Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-C MH, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG
