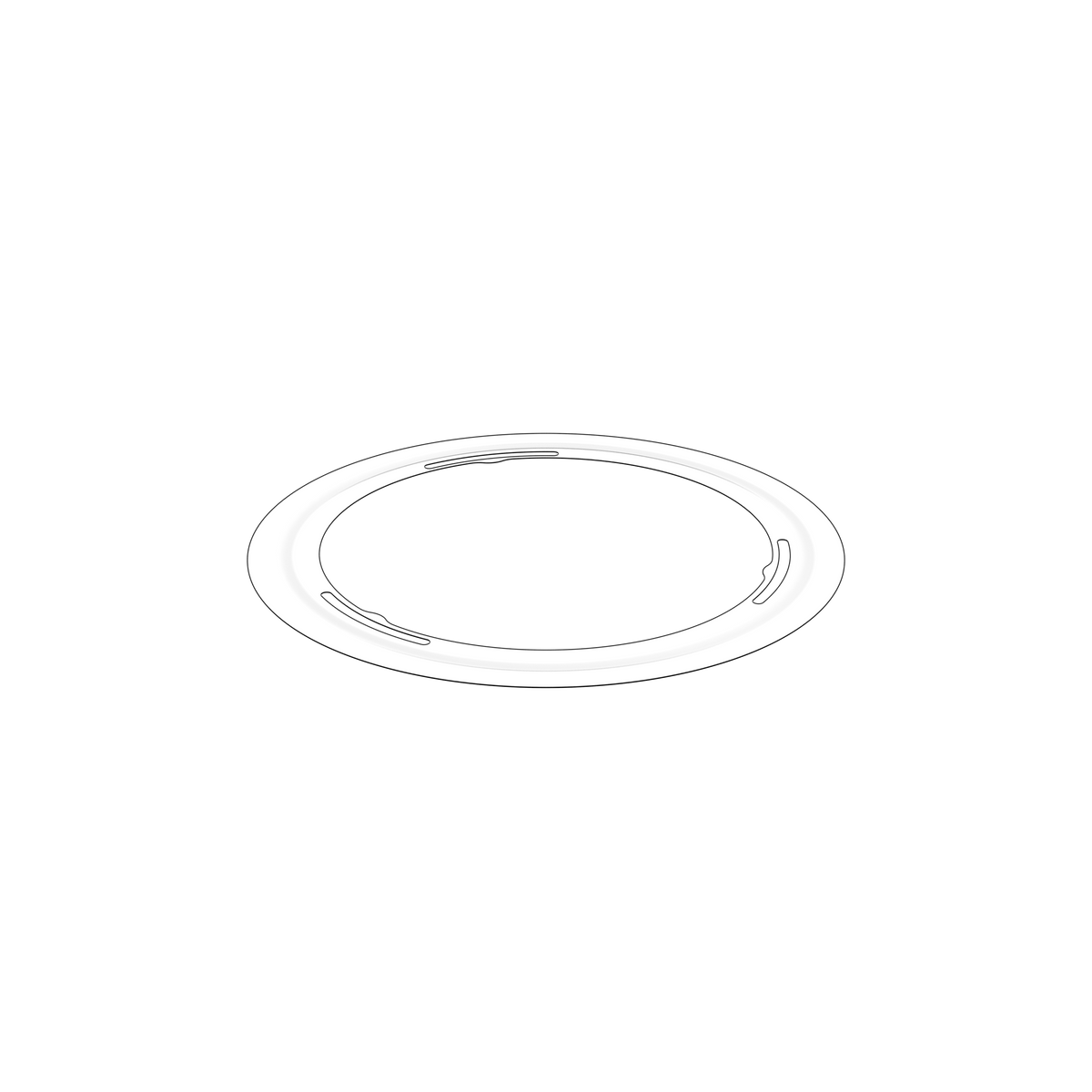

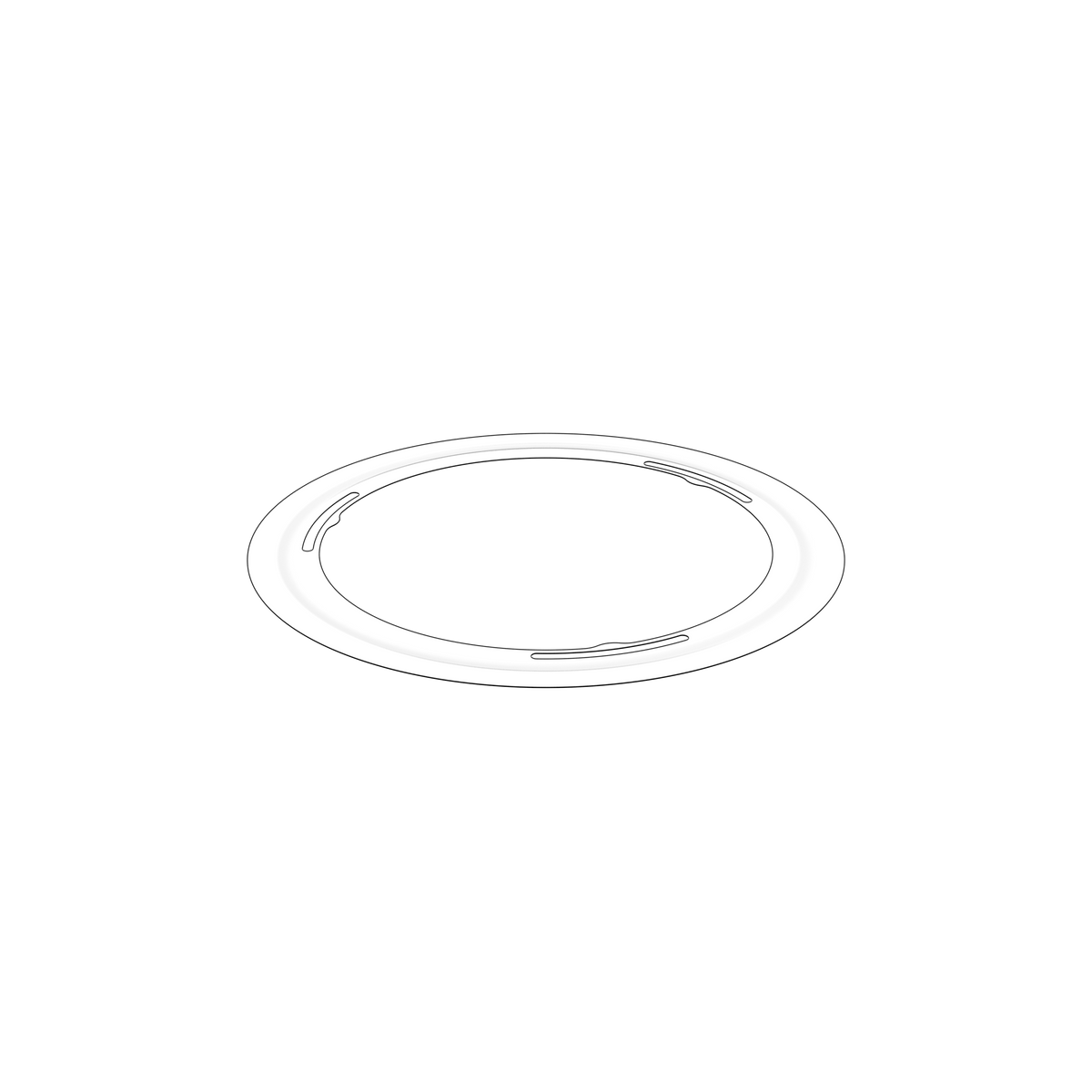

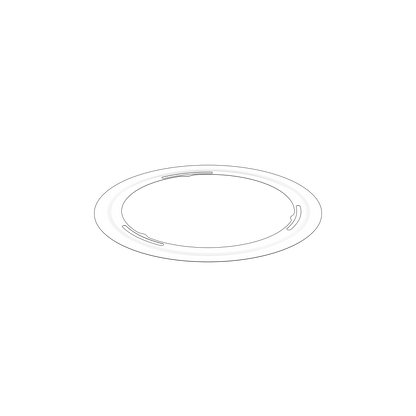

21269861 Gasket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta high-temperature gasket used in the turbocharger, exhaust and bypass-pipe assembly on D13C MP marine engines. The gasket seals a position-specific hot-side flange exposed to exhaust pressure, temperature cycling and vibration.

🚤 Compatibility

• Engine Family: D, TWD

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta high-temperature exhaust gasket
• Confirmed D13C MP application
• Used in the turbocharger/bypass/exhaust assembly
• Correct profile for the designated flange
• Single-use sealing component during turbo or pipe service
• Engine type: Volvo Penta D13 inline-six common-rail marine diesel
• Quantity varies by assembly, most commonly two

🔌 Function

Seals the assigned turbocharger or exhaust-pipe flange to retain exhaust pressure and prevent hot-gas leakage.

⚠️ Common Signs of Failure

• Ticking or puffing exhaust noise from the turbocharger area, worst when cold
• Soot streaks or black staining at the flange
• Exhaust smell in the engine compartment
• Reduced boost and sluggish response
• Gasket found blown through or unevenly crushed when the joint is opened

🛠️ Service Notes

• Single-use sealing component: renew whenever the turbo, bypass pipe or exhaust flange is separated
• Check the flange faces for distortion and the fasteners for stretch or corrosion before refitting

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C8-B MP
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG
• Volvo Penta TWD1683VE
