21281968 Sump | Genuine Volvo Penta Part

🔧 Product Description

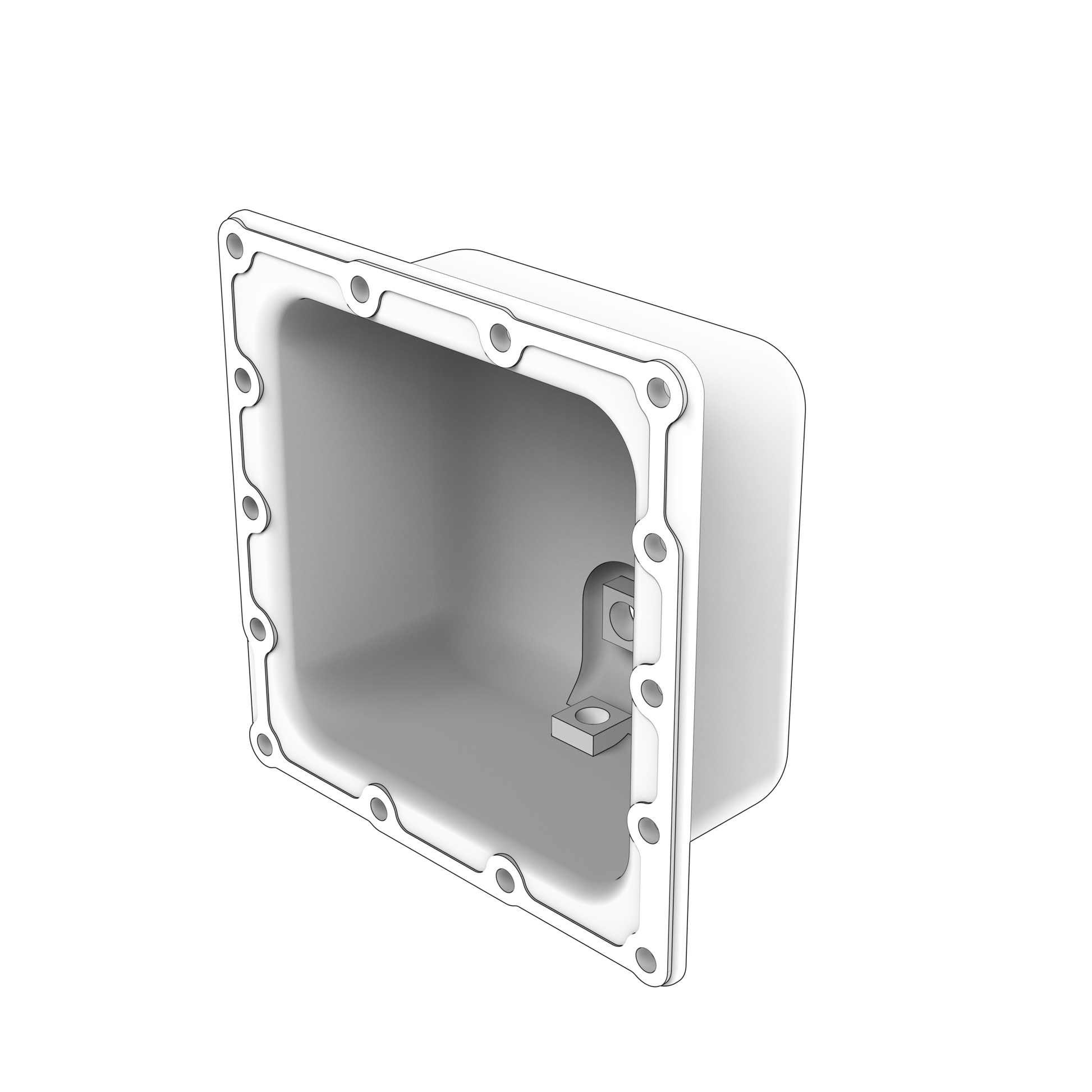

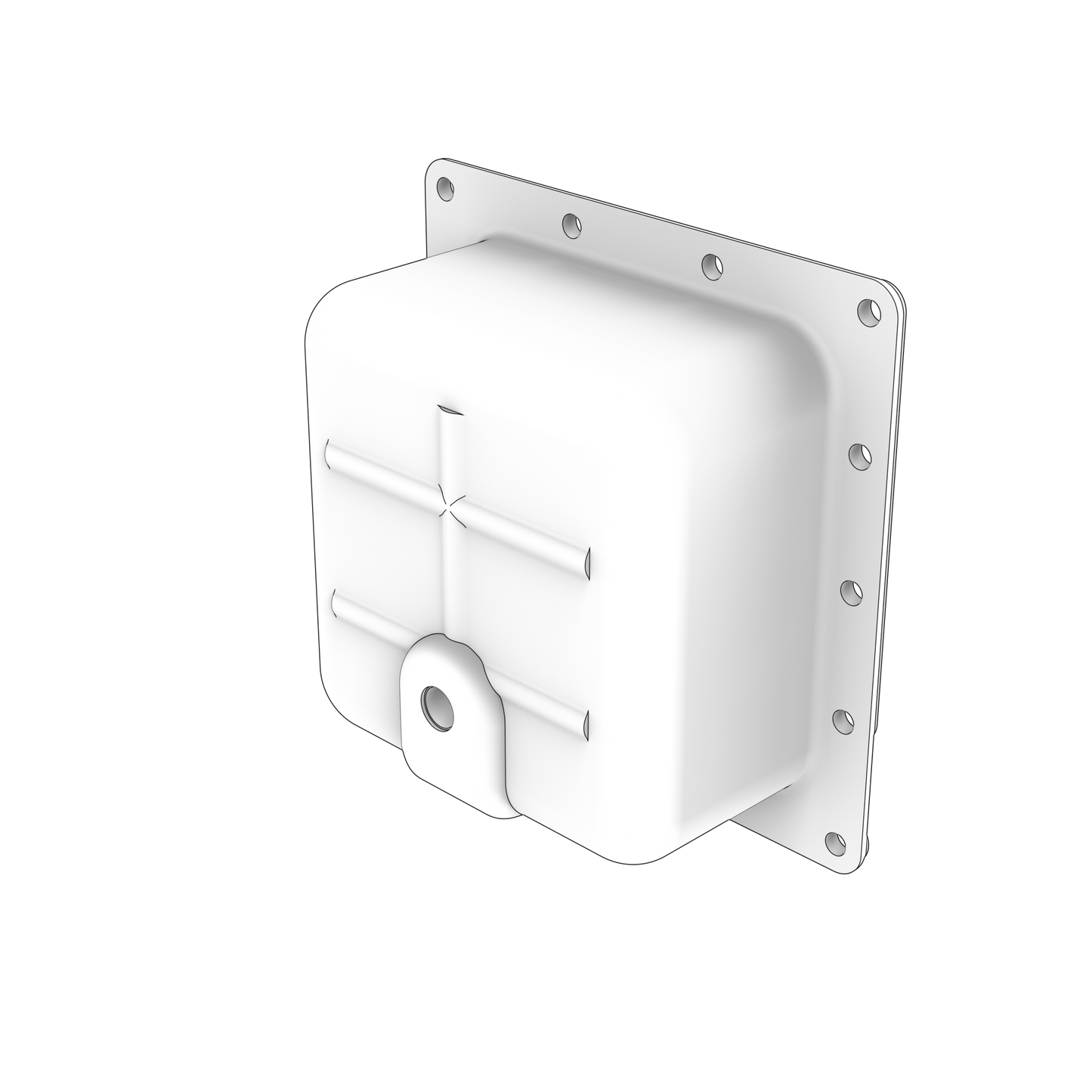

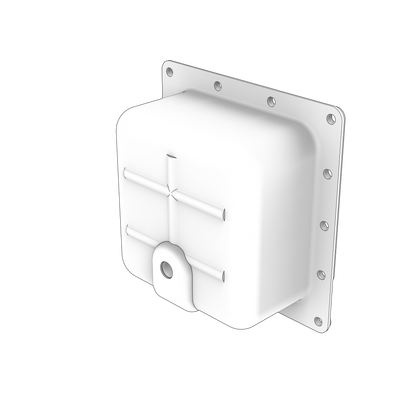

Genuine Volvo Penta pressed or cast engine oil sump for D1-13F marine diesels. It forms the lower crankcase reservoir, collects returning engine oil and provides the mounting surface for the drain, pickup and sealing gasket.

🚤 Compatibility

Typically suits:

• Volvo Penta D1-13F

• Engine Family: D
• HP Range: 13 HP

⚙️ Key Features

• Genuine Volvo Penta D1 oil sump
• Confirmed D1-13F application
• Correct oil capacity and internal clearance
• Interfaces with the oil pickup, drain and gasket
• Inspect flange flatness and corrosion before installation
• Engine type: Volvo Penta D1 two-cylinder marine diesel

🔌 Function

Stores the engine oil supply and collects oil returning from the bearings, cylinder head and crankcase.

⚠️ Common Signs of Failure

• Oil leakage from corrosion, cracking or a distorted flange
• Impact damage reducing crankshaft or pickup clearance
• Internal sludge or metal debris
• Damaged drain threads
• Low oil pressure caused by pickup interference or oil loss

🛠️ Service Notes

• Drain the oil warm and completely, and make sure the engine is properly supported before anything holding the sump is disturbed
• Clean both flange faces without scoring them and without dropping debris inside, removing every trace of old gasket or sealant
• Use the gasket or sealing compound the workshop manual for your engine specifies, applied dry where it says dry, and locate the sump correctly against its end faces before pulling anything down
• Tighten progressively from the centre outwards in stages to the manual figures; a sump flange is easy to pull out of shape and then it leaks for good
• Fit a new drain plug seal, refill with the correct grade to the correct level, then run and check for leaks and for oil pressure coming up as it should

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21281968 → Supersedes 21185760

OEM / Related Numbers

• 3808604 earlier number superseded by this part
• 3581741 earlier number superseded by this part
• 861832 earlier number superseded by this part
• 21185760 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
