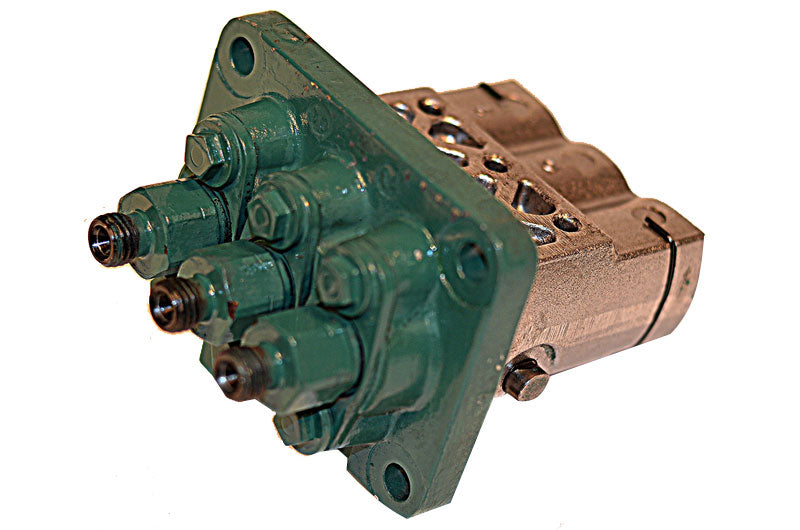

21286760 Injection Pump | Genuine Volvo Penta Part

🔧 Product Description

A complete mechanical diesel injection pump for selected Volvo Penta MD2040 marine engines. The pump meters, pressurises and distributes fuel to the engine injectors in the correct firing sequence.

🚤 Compatibility

• HP Range: Approximately 40 HP

⚙️ Key Features

• Calibrated for the MD2040 engine family
• Replaces earlier injection-pump reference 3580127
• Requires correct timing and fuel-system bleeding during installation
• Engine type: Four-cylinder naturally aspirated marine diesel

🔌 Function

Meters and pressurises diesel fuel and delivers it to each injector at the correct point in the combustion cycle.

⚠️ Common Signs of Failure

• Difficult starting or failure to start
• Uneven idle or cylinder misfire
• Excessive black or white exhaust smoke
• Diesel leakage from the pump
• Incorrect injection timing or unstable engine speed

🛠️ Service Notes

• Cleanliness decides whether the job lasts — cap every opening as soon as it is disconnected, work with clean tools, and never let dirt or water into the pump or its lines
• The pump is a calibrated assembly: do not attempt to alter internal settings on board, and have any testing or calibration done on proper equipment by a qualified shop
• Set timing and mounting by the procedure in the workshop manual for your engine, and fit new seals, gaskets and sealing washers on refitting
• Renew the fuel filters and cure the cause of any failure before running a replacement pump; contaminated or watered fuel will destroy the new one too
• Prime and bleed the system properly before cranking, and note that electronically controlled pumps may need parameters set with Volvo Penta diagnostic equipment before the engine will run correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21286760 → Supersedes 3580127

OEM / Related Numbers

• 3580127 earlier number superseded by this part
• 131017531 related reference
• SBA131017510

Other-Brand OEM Numbers

• Zexel 53010
• Zexel 104135-3010

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
