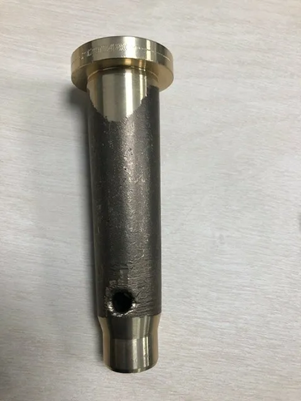

21293480 Propeller Nut | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta propeller nut, part of the installation hardware for Volvo Penta IPS 1, IPS 10 (type T/TS propellers).

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Retains the forward propeller on the propeller shaft
• Designed for Type T and TS DuoProp systems
• Included in the complete propeller cone kit
• Engine type: Volvo Penta IPS
• Propeller nut.
• Listed for Volvo Penta IPS 1, IPS 10 (type T/TS propellers).
• Fits: Volvo Penta IPS 1, IPS 10 (type T/TS propellers)
• Also supersedes Volvo part number 3861208

🔌 Function

Secures the forward propeller to the IPS propeller shaft at the specified torque.

⚠️ Common Signs of Failure

• Propeller movement on the shaft
• Corrosion or galling
• Nut will not retain the specified torque
• Damage caused by incorrect removal tooling

🛠️ Service Notes

• Assemble the thrust washer, cone and any spacers in the order the manual gives onto a clean, undamaged thread — the propeller is clamped by the whole assembly, not held by the nut alone
• Tighten to the figure given in the workshop manual for your drive; a nut merely nipped up lets the propeller work on the shaft and ruins the hub and the taper
• Fit a new locking device where one is used — a lock or tab washer bent onto the flats, or a new split pin — and never reuse one that has already been bent
• Renew the nut if the thread is stretched, galled or corroded, or if the locking tabs or their seats are damaged; a corroded nut is also the reason a propeller will not come off next time
• Check the nut and its locking after the first run and at every haul-out — a slack propeller nut is a common cause of vibration and of lost propellers

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21293480 → Supersedes 3861207

OEM / Related Numbers

• 3886126 earlier number superseded by this part
• 3861207 earlier number superseded by this part
• Propeller cone kit 23779449 includes 1 × 22072153 Propeller Cone
• 1 × 963699 Hex Socket Screw
• 1 × 3861088 Lock Plate
• 1 × 3861209 Lock Ring
• 1 × 3861087 Lock Nut
• 23062729 - line cutter
• 3862454 - flow deflector
• 23284156 - locking fluid

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
