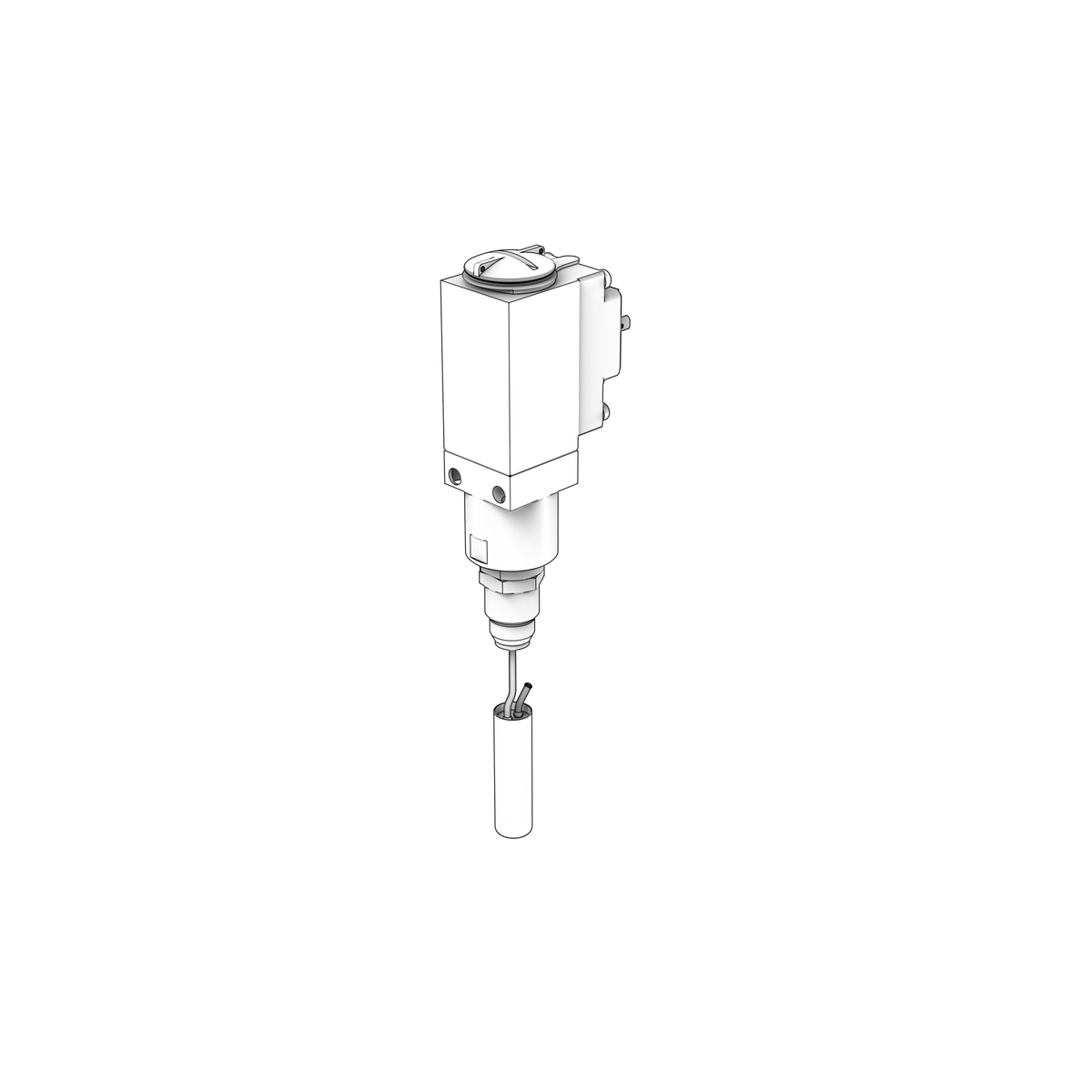

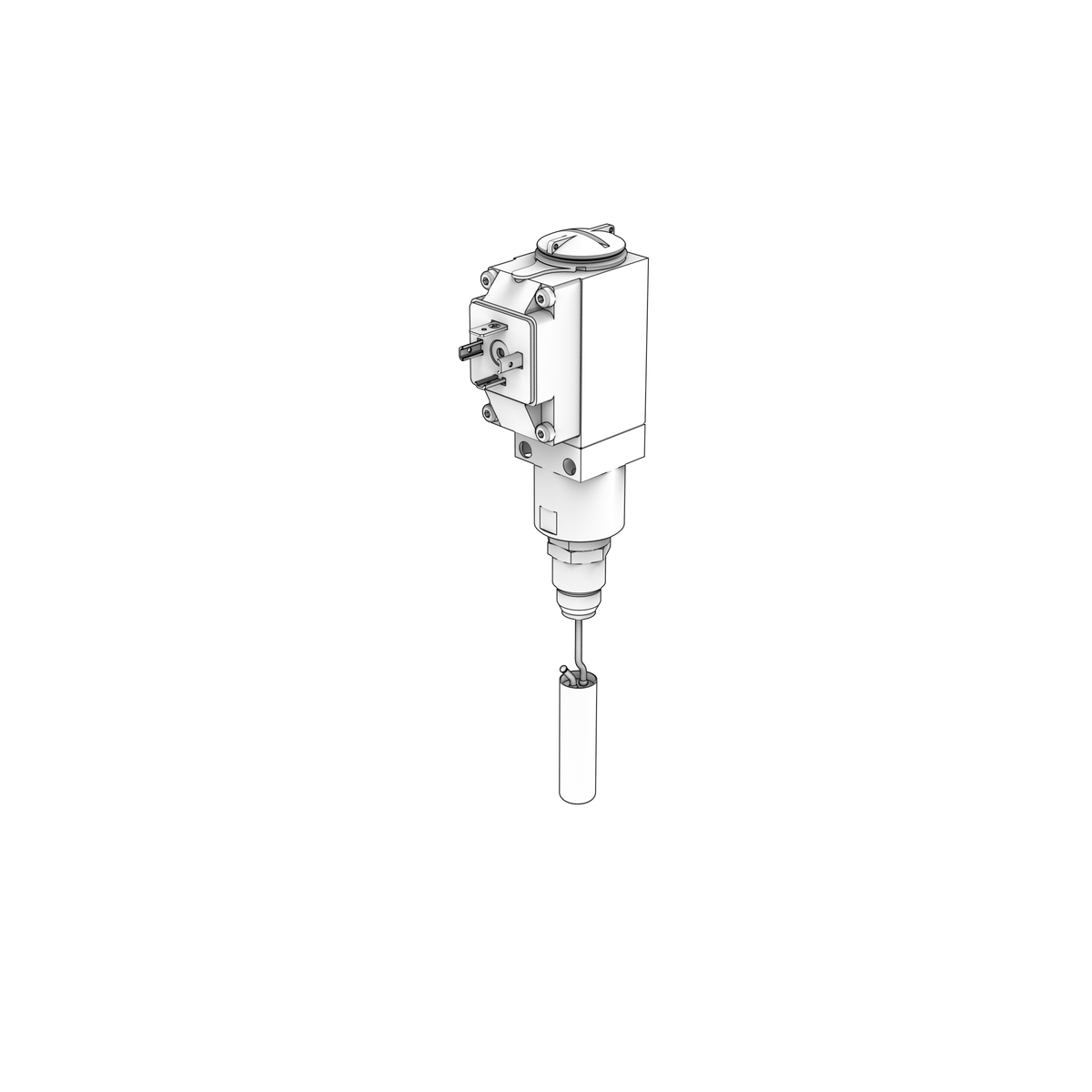

21294565 Thermo Monitor | Genuine Volvo Penta Part

🔧 Product Description

A temperature-operated monitoring switch used in engine alarm and shutdown systems. It activates the protection circuit when coolant temperature reaches the specified limit.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Used in alarm and automatic shutdown systems
• Fixed switching temperature for engine protection
• Suitable for selected D9 and D13 marine engines
• Engine type: D9 or D13 turbocharged marine diesel

🔌 Function

Closes or opens the warning circuit when coolant temperature reaches the calibrated threshold.

⚠️ Common Signs of Failure

• High-temperature alarm does not activate
• False over-temperature alarm
• Engine shutdown with normal coolant temperature
• Open-circuit or short-circuit switch
• Corroded terminal
• Coolant leakage around the threaded body

🛠️ Service Notes

• Check the replacement is the one specified for your engine and for its electrical system voltage before fitting; monitoring units are built for a particular system and are not interchangeable on appearance
• Isolate the batteries before disconnecting it and note the connections so it goes back exactly as it came off
• Make the terminals off clean and tight with a good earth, and protect the connections against damp — a corroded terminal or poor earth gives false readings and false alarms
• Where the unit screws into a housing or waterway, use only the sealing washer or thread treatment the workshop manual for your engine specifies; extra sealant can upset both the seal and the earth path
• After fitting, run the engine up and satisfy yourself the reading or warning behaves sensibly against a known good reference before relying on it at sea

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C3-A MP, D13C4-A MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13B-D MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D16C-A MG, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D11C3-A MP, D11B3-A MP, D11B4-A MP
