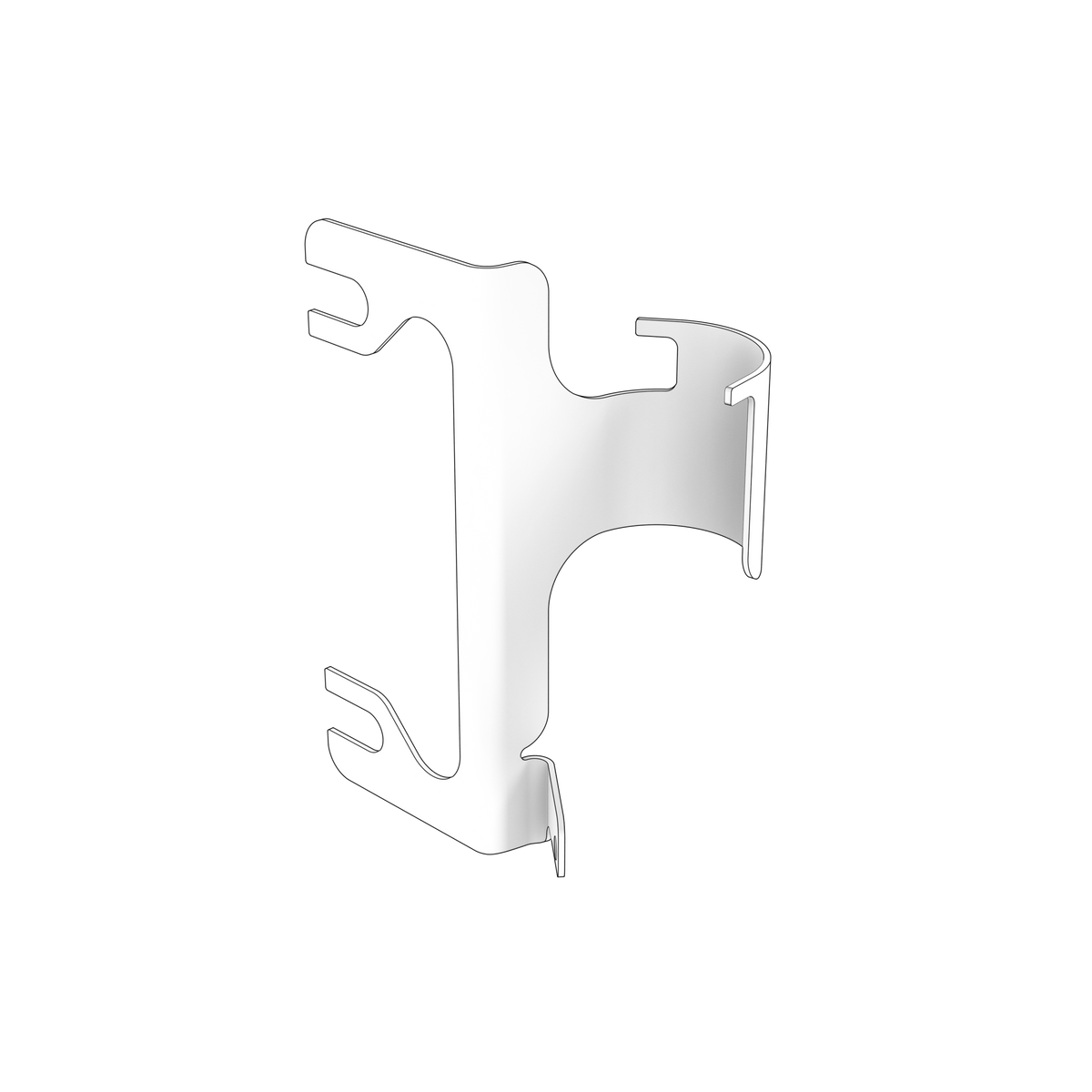

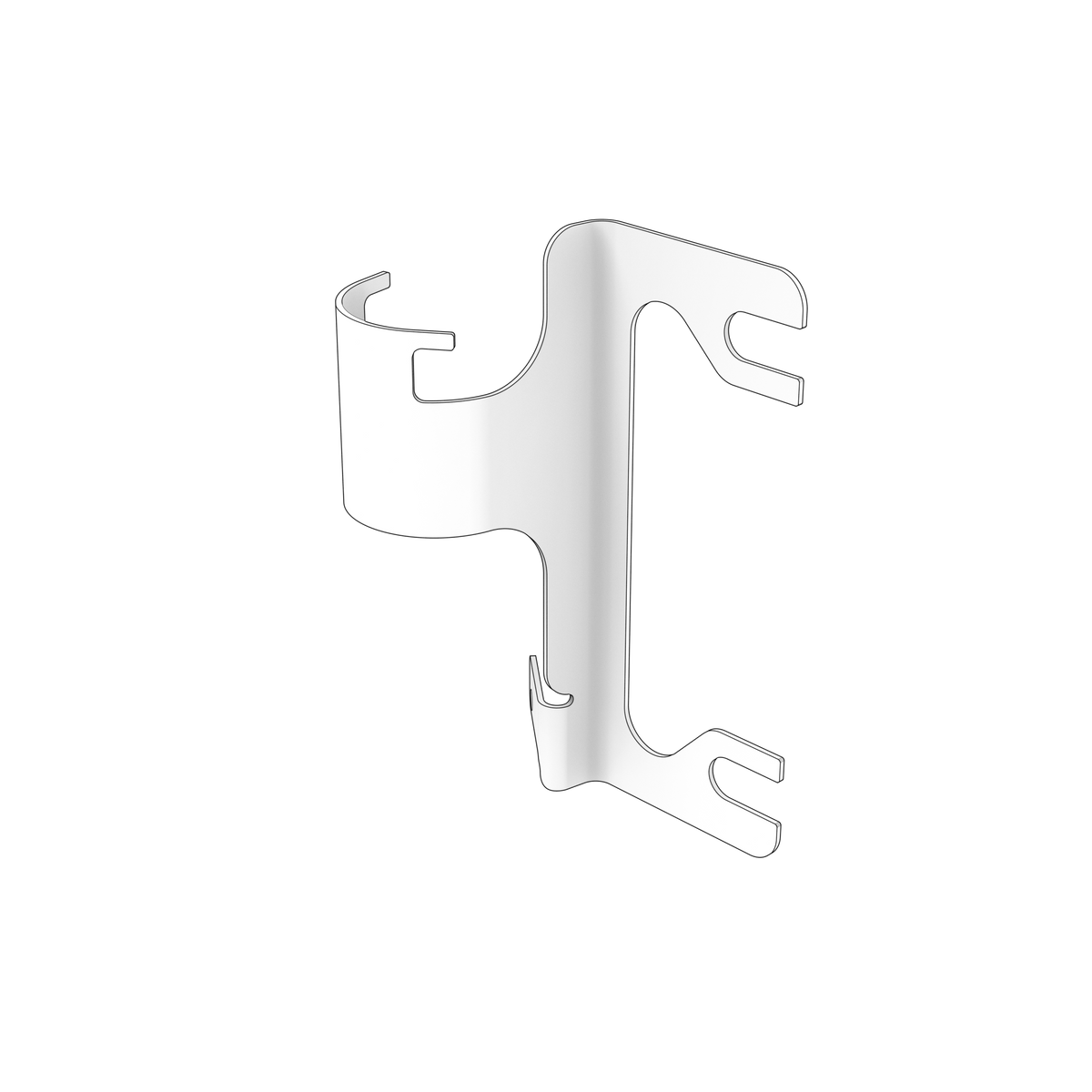

21300619 Bracket | Genuine Volvo Penta Part

🔧 Product Description

A mounting bracket used to support the low-pressure fuel feed pump on selected Volvo Penta D3 G-generation marine engines. It supersedes earlier bracket 3581698.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Supersedes 3581698
• Maintains fuel-pump and hose alignment
• Designed for D3 G-generation engines
• Engine type: D3 five-cylinder turbocharged marine diesel

🔌 Function

Supports the fuel feed pump and maintains correct hose routing and vibration isolation.

⚠️ Common Signs of Failure

• Cracked mounting point
• Fuel-pump movement
• Repeated hose or fitting leakage
• Excessive pump vibration
• Bracket distortion after impact or incorrect installation

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21300619 → Supersedes 3581698

OEM / Related Numbers

• 3581698 - earlier bracket
• 21120406 - fuel feed pump
• 21300622 → 22345973 - related fuel hose
• 21300624 → 22363670 - related fuel hose
• 21282656 - grommet
• 961663, 952624 and 961671 - hose clamps
• 976011 - O-ring
• 18665 - gasket

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
