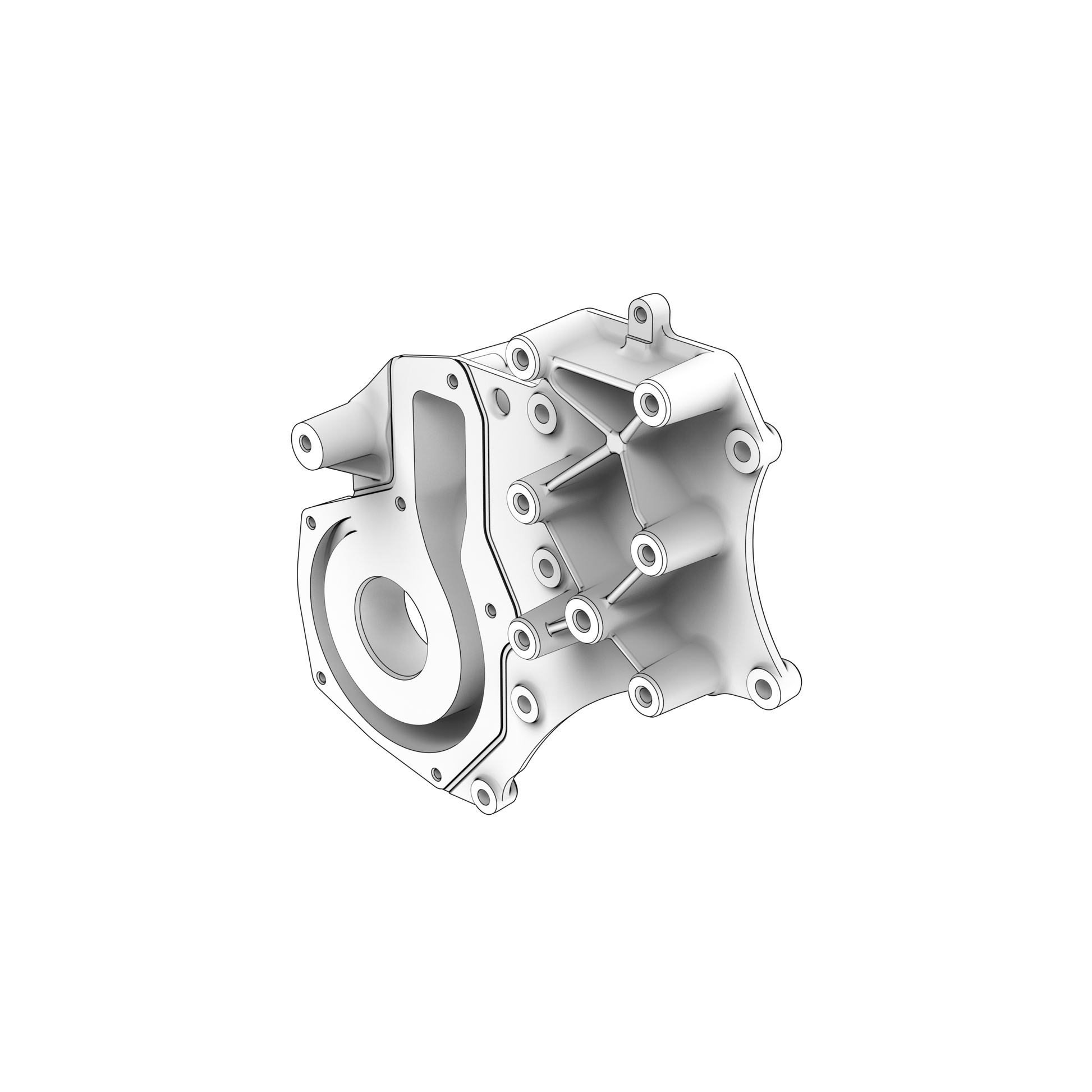

21305392 Coolant Pump Housing | Genuine Volvo Penta Part

🔧 Product Description

A complete housing for the engine coolant pump and thermostat system on selected Volvo Penta D9 and D11 marine diesel engines. It supersedes earlier housing 3808593.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C1-A MP
• Volvo Penta D11C3-A MP
• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D11B3-A MP
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11B1-A MP
• Volvo Penta D9A2J
• Volvo Penta D9A2G
• Volvo Penta D9A2L MH
• Volvo Penta D9A2D
• Volvo Penta D9A2B
• Volvo Penta D9A2F
• Volvo Penta D9A2K
• Volvo Penta D9A2H
• Volvo Penta D9A2M MP
• Volvo Penta D9A2A
• Volvo Penta D9A2C
• Volvo Penta D9A2E

• Engine Family: D

⚙️ Key Features

• Supersedes 3808593
• Correct pump, pipe and thermostat interfaces
• Designed for D9 and D11 marine engines
• Engine type: D9 or D11 inline-six turbocharged marine diesel

🔌 Function

Supports the coolant pump and directs engine coolant through the pump, thermostat and connecting pipes.

⚠️ Common Signs of Failure

• Cracked mounting flange
• Pump or thermostat misalignment
• Repeated seal failure

🛠️ Service Notes

• Clean both mating faces without scoring them — avoid steel scrapers and blades on alloy faces, and check the faces for flatness and for corrosion pitting around the ports before assembly
• Renew every gasket, O-ring and shaft seal that comes out with the housing, and fit dry unless the workshop manual for your engine specifies a sealant
• Inspect the housing bore, the seal seat and the drain or weep hole; old or wrongly mixed coolant erodes and pits these housings, and a blocked weep hole hides a failing seal until the bearing has gone
• Check that the impeller turns freely and that the running clearances are within the figures the manual for your engine gives before the housing goes back on
• Tighten the fasteners to the manual torque and in the specified sequence, since an alloy housing pulled down unevenly will distort and leak, then refill with the coolant specification for your engine, bleed the system and run up to temperature to check for leaks at the joint and at the weep hole

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21305392 → Supersedes 22398835 → Supersedes 3801619 → Supersedes 3808593 → Supersedes 21682088 → Supersedes 3801484 → Supersedes 3836310

OEM / Related Numbers

• 3808593 earlier number superseded by this part
• 3801418 → 22195450 – related pump-unit chain
• 21415427 and 21103569 – rubber mouldings
• 3583822 – drain nipple
• 3594389 – pulley

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
