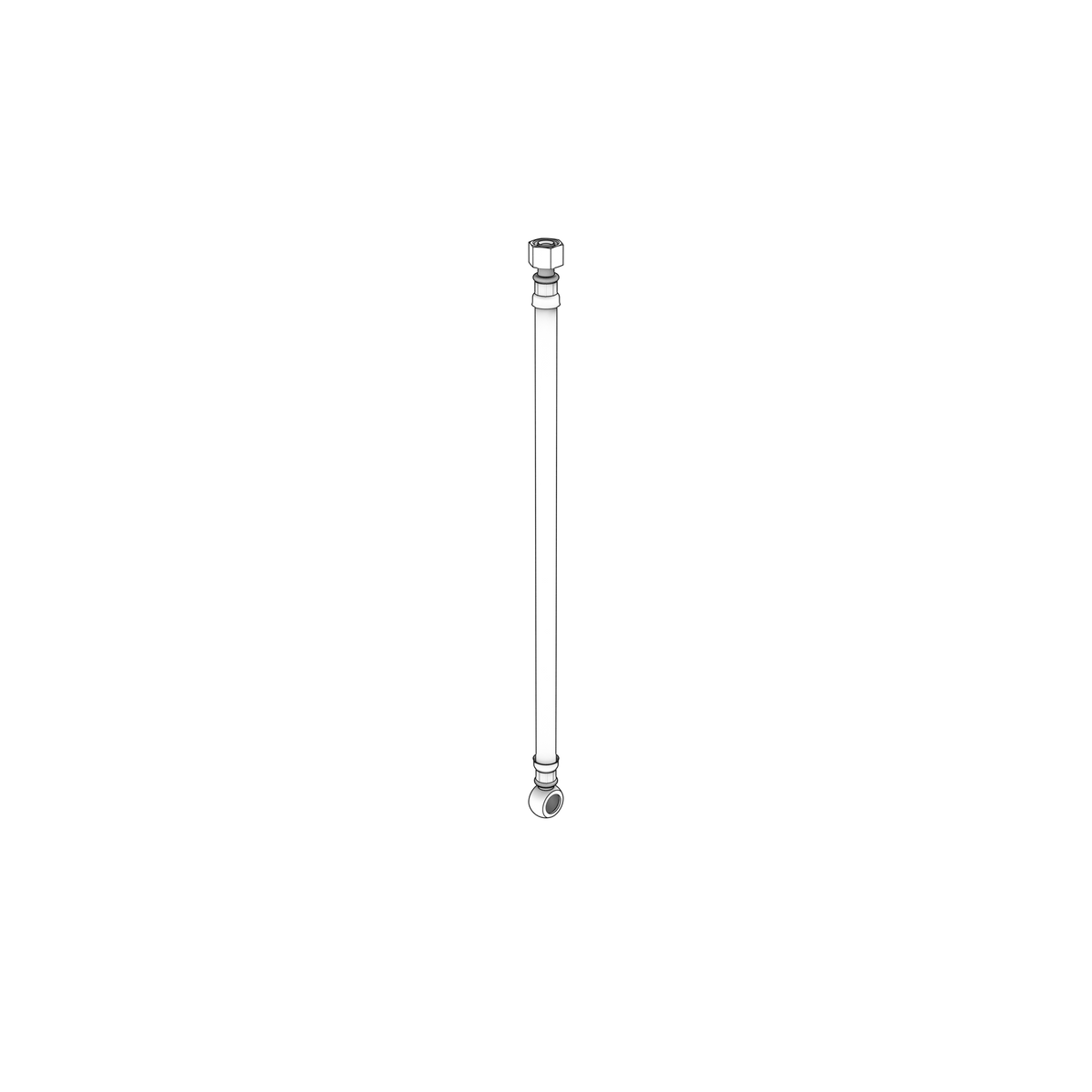

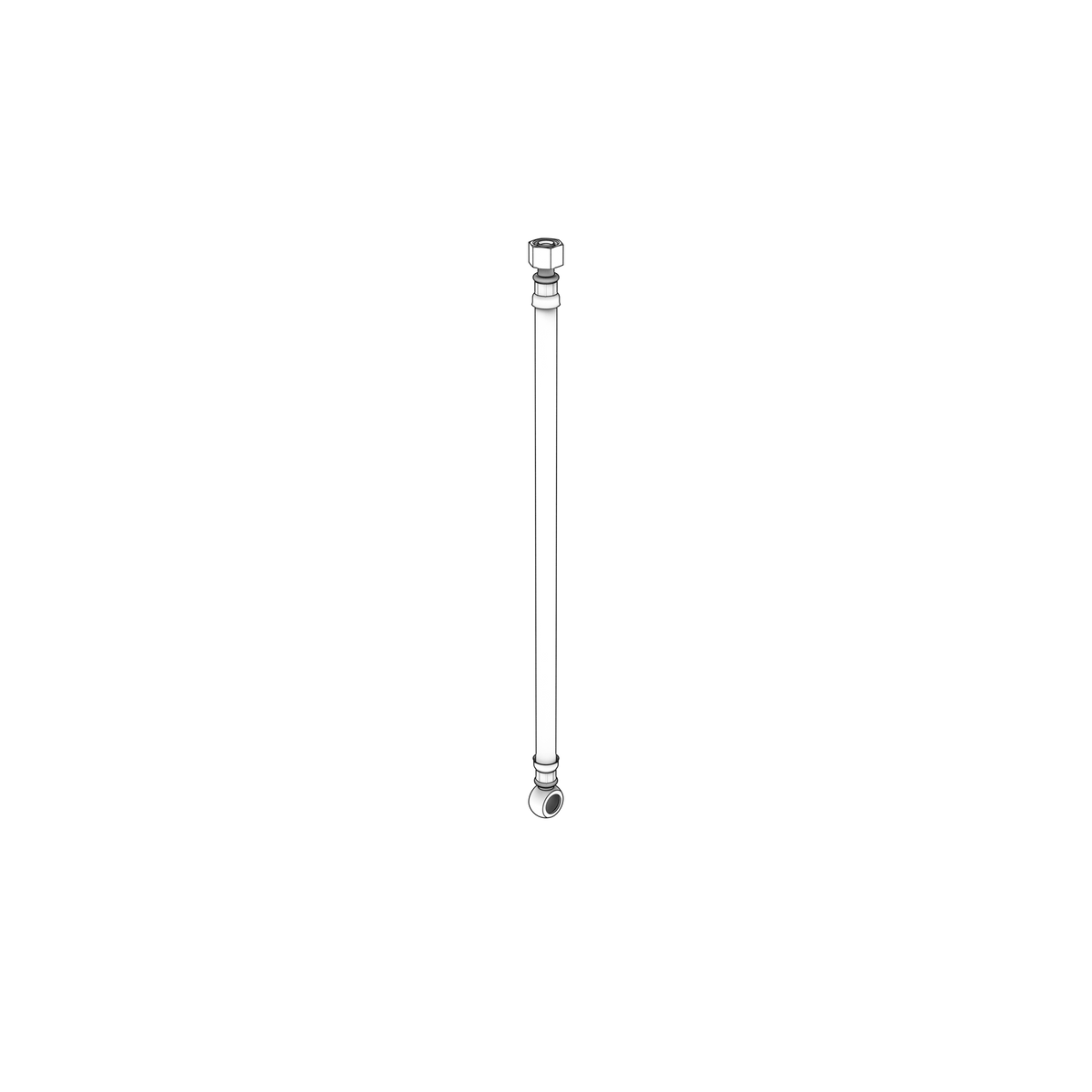

21311221 Fuel Pipe | Genuine Volvo Penta Part

🔧 Product Description

A rigid OEM fuel pipe formed for the designated supply, delivery, vent or return position in the Volvo Penta fuel system.

🚤 Compatibility

• Engine Family: TAD, TWD
• Serial Range: SN2016134495-

Full model list at the end of this description.

⚙️ Key Features

• Factory-formed bends
• Correct fuel-system connections
• Maintains clearance from hot and moving parts
• Designed for diesel fuel service
• Also supersedes Volvo part numbers 20521609, 20776975 and 20909808

🔌 Function

The pipe carries fuel through the designated stage of the fuel system while maintaining a leak-free connection.

⚠️ Common Signs of Failure

• Diesel leakage or fuel odour
• Cracked flare or damaged fitting
• Chafing or vibration marks

🛠️ Service Notes

• Work clean: cap or plug every open union and injector as soon as it is disconnected, and fit the new pipe straight from its packaging — dirt introduced at a fuel joint is the most common cause of trouble afterwards
• Offer the pipe up so it lines up on both unions without strain, and never bend, twist or reshape a pipe to make it fit; a pipe that has been sprung into place fatigues and cracks in service
• High-pressure delivery pipes are treated as single-use in workshop practice — the union faces seal by deforming, so refit new pipes rather than reusing them, and tighten to the figure and sequence in the workshop manual for your engine
• Refit all original support clips and brackets in their proper positions so the pipe cannot chafe or vibrate against surrounding parts
• Bleed the system, then check the joints for leaks with the engine running and again once warm — never search for a diesel leak by hand, since fuel at injection pressure will penetrate skin

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21311221 → Supersedes 21316275

OEM / Related Numbers

• 22035823 - Fuel filter housing
• 22677520 - Fuel pump
• 21193225 - Fuel hose

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
