21325765 V-Clamp | Genuine Volvo Penta Part

🔧 Product Description

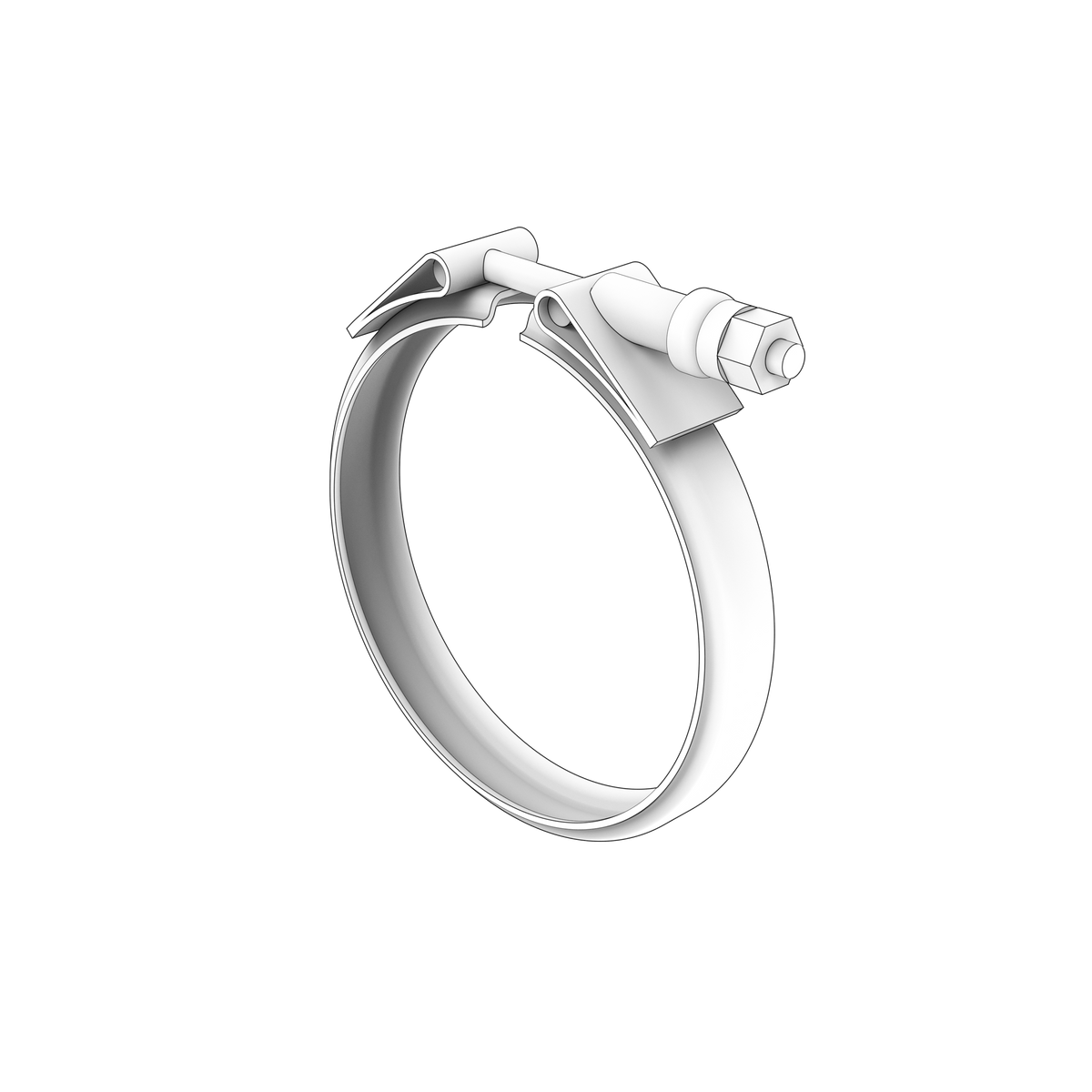

A high-temperature V-band clamp used to secure the assigned Volvo Penta exhaust-pipe or elbow connection.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G

• Engine Family: D
• HP Range: 300-440 HP

⚙️ Key Features

• Even circumferential flange load
• Corrosion-resistant material
• Correct flange diameter and profile

🔌 Function

The clamp draws the two exhaust flanges together and maintains a gas- and water-tight joint.

⚠️ Common Signs of Failure

• Soot or water leakage
• Cracked or distorted band
• Seized fastener
• Joint movement or increased noise

🛠️ Service Notes

• Bring the two flanges squarely together before the clamp goes on — a V-clamp centres and holds a joint but cannot pull a misaligned pipe into line
• Seat the clamp evenly round the flanges and nip it up lightly, then tap around the circumference with a soft mallet so the band settles and the flanges centre before final tightening
• Tighten in stages to the figure in the workshop manual for your engine and no further; the clamp is meant to pinch the flanges while still allowing for expansion and vibration, and overtightening distorts the band or the flanges
• Renew the clamp if the band is stretched, cracked or corroded, or if the bolt, nut or trunnion is damaged — a fatigued clamp can let the joint go completely
• Recheck the clamp after the first run up to working temperature, and again at the next service

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21325765 → Supersedes 842993

OEM / Related Numbers

• 860000 earlier number superseded by this part
• 842993 earlier number superseded by this part
• 861289 - Related exhaust elbows
• 859963 - Related exhaust elbows
• 21684826 - Related exhaust elbows
• 845261 - Related exhaust elbows

Aftermarket / Verified Equivalents

• HGE Marine HGE5765

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
