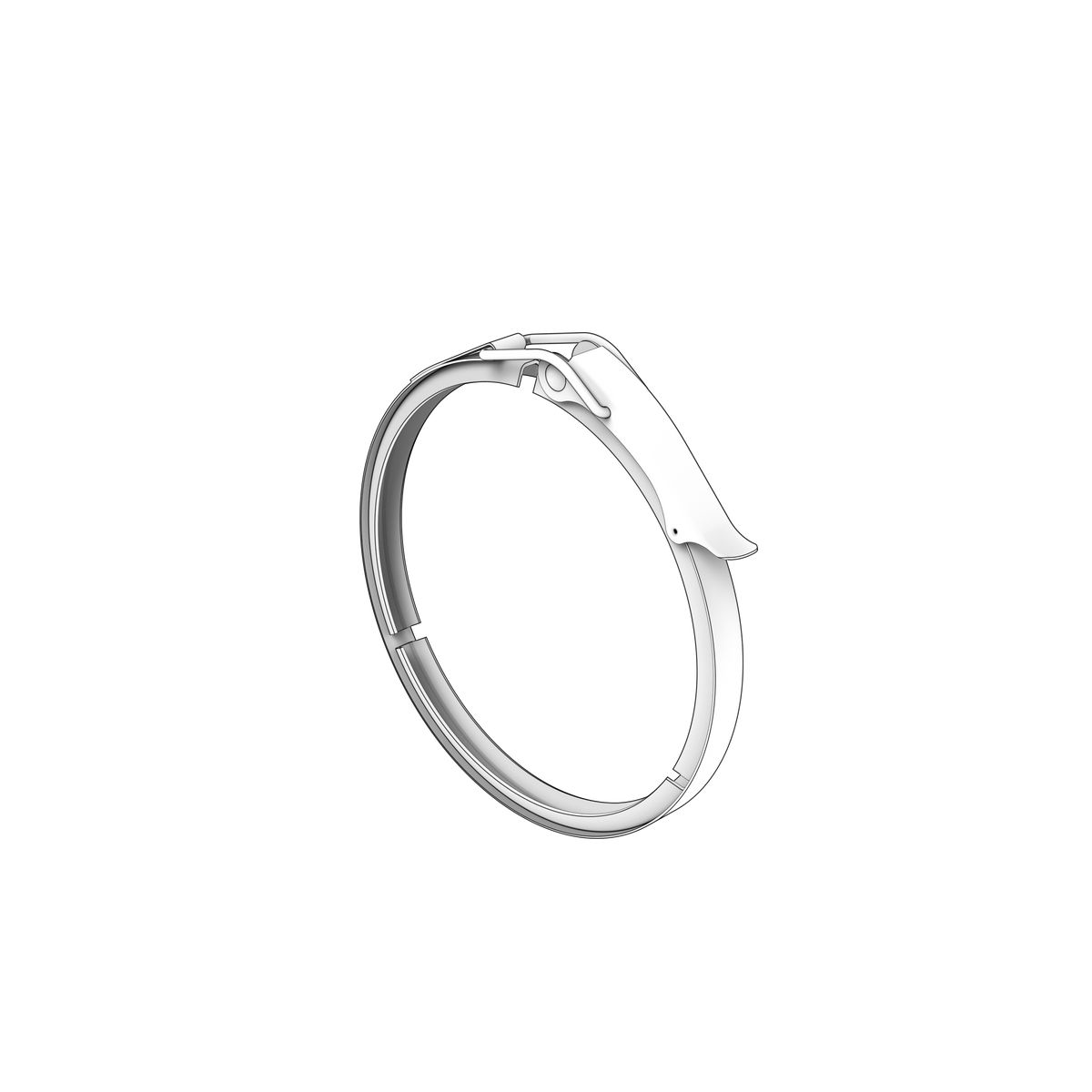

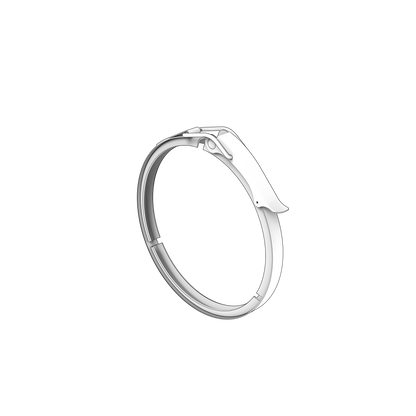

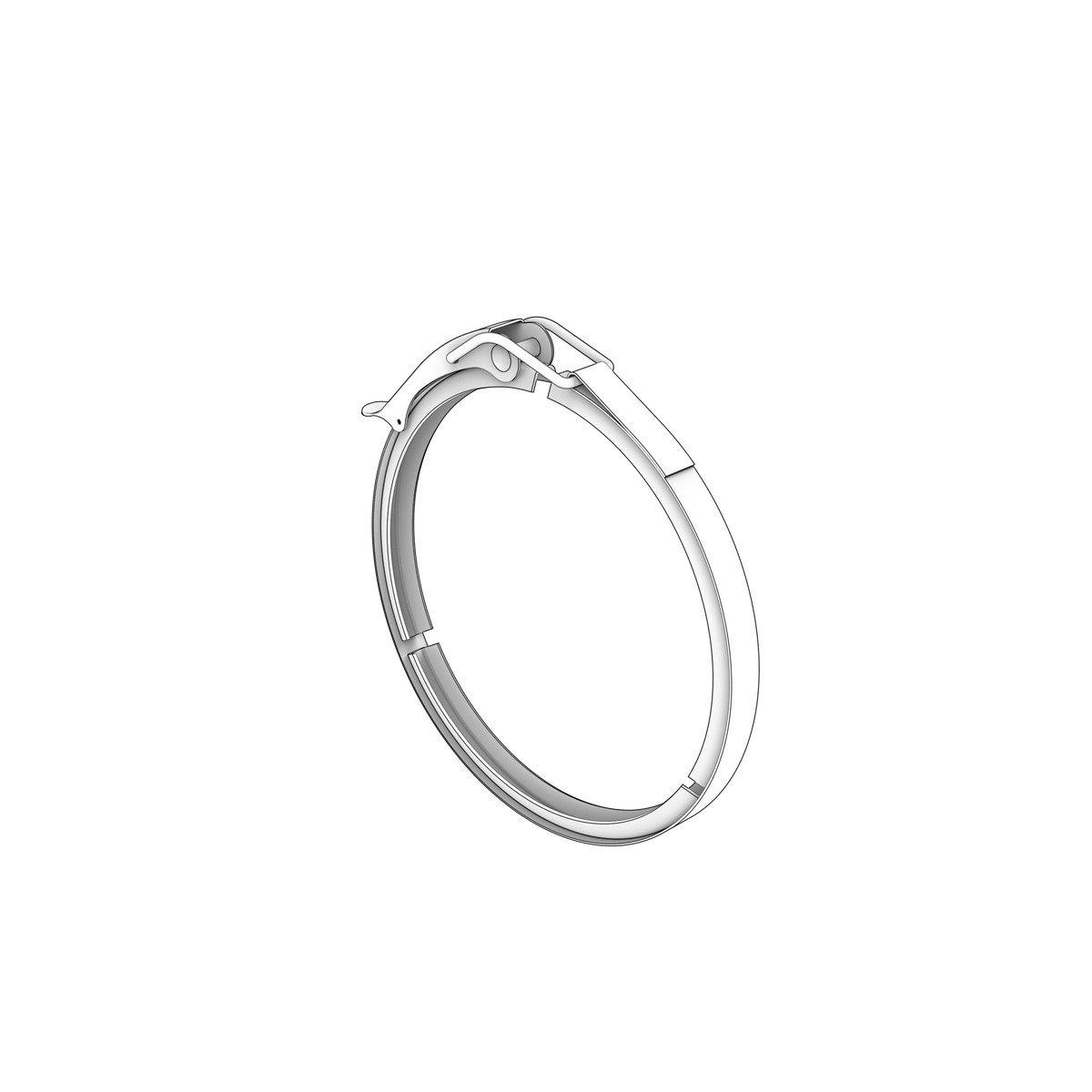

21368508 V-Clamp | Genuine Volvo Penta Part

🔧 Product Description

Genuine V-clamp used to secure the cover or housing joint of the Volvo Penta D4/D6 engine-mounted seawater filter. It provides uniform circumferential clamping around the filter assembly.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• D4/D6 seawater-filter clamp
• Approximate catalogue weight: 0.28 kg
• Uniform V-band clamping
• Used with strainer 21368504 and O-ring 995147
• Designed for wet marine cooling-system service

🔌 Function

The clamp secures the seawater-filter cover or housing and compresses the sealing O-ring evenly.

⚠️ Common Signs of Failure

• Water leakage around the filter
• Clamp band cracking or distortion
• Damaged tightening bolt
• Cover movement
• Air entering the seawater pump suction

🛠️ Service Notes

• Bring the two flanges squarely together before the clamp goes on — a V-clamp centres and holds a joint but cannot pull a misaligned pipe into line
• Seat the clamp evenly round the flanges and nip it up lightly, then tap around the circumference with a soft mallet so the band settles and the flanges centre before final tightening
• Tighten in stages to the figure in the workshop manual for your engine and no further; the clamp is meant to pinch the flanges while still allowing for expansion and vibration, and overtightening distorts the band or the flanges
• Renew the clamp if the band is stretched, cracked or corroded, or if the bolt, nut or trunnion is damaged — a fatigued clamp can let the joint go completely
• Recheck the clamp after the first run up to working temperature, and again at the next service

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21368500 - Seawater-filter housing
• 21368504 - Strainer element
• 995147 - O-ring
• 21445782 - Outer sheath

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300I-F, D6-330I-C, D6-370I-C, D6-280I-C, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435I-C, D6-435I-E, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-480A-G
• Volvo Penta D4-260I-F, D4-180I-F, D4-225I-F, D4-300I-E, D4-300I-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP, D8A7-A MP, D8A8-A MP
