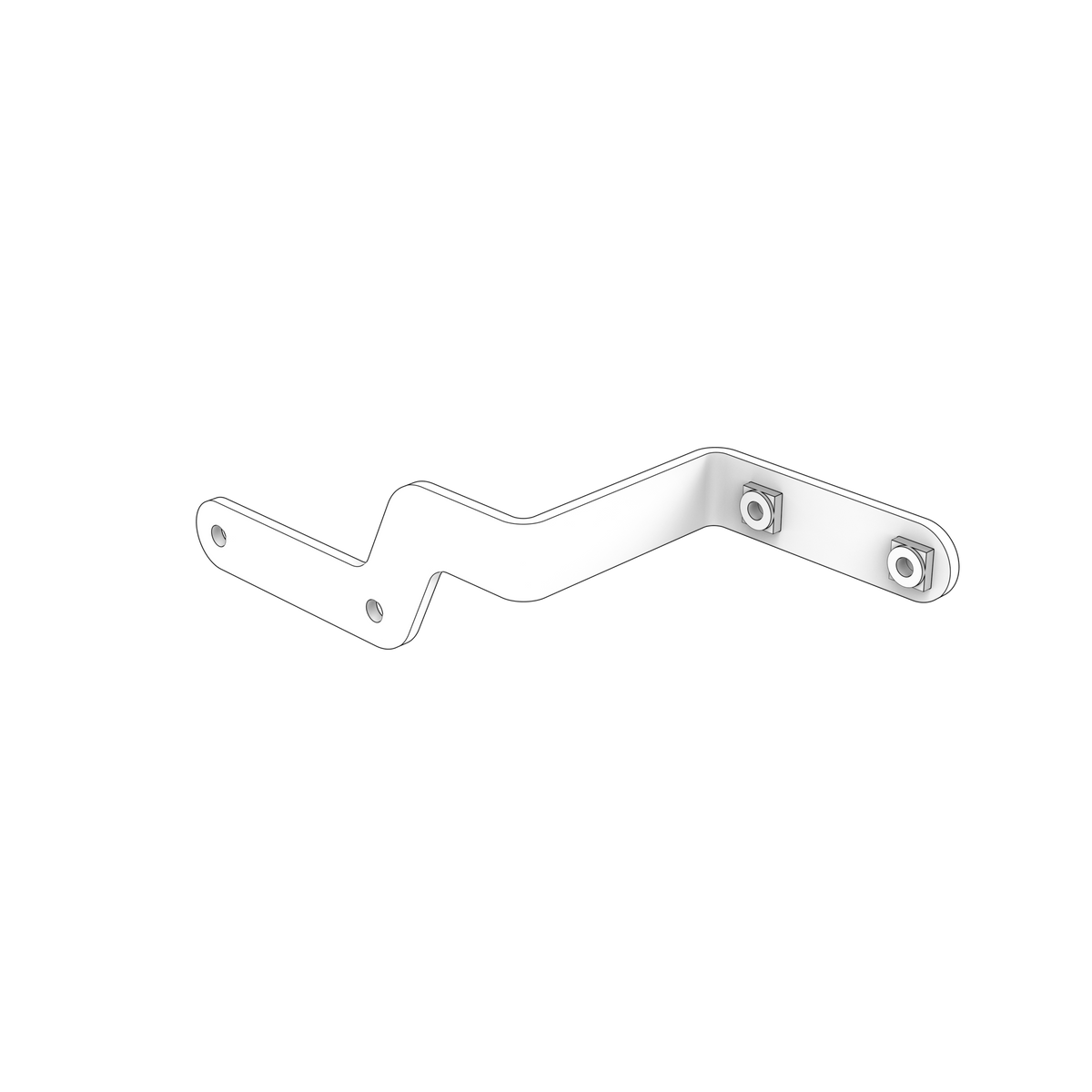

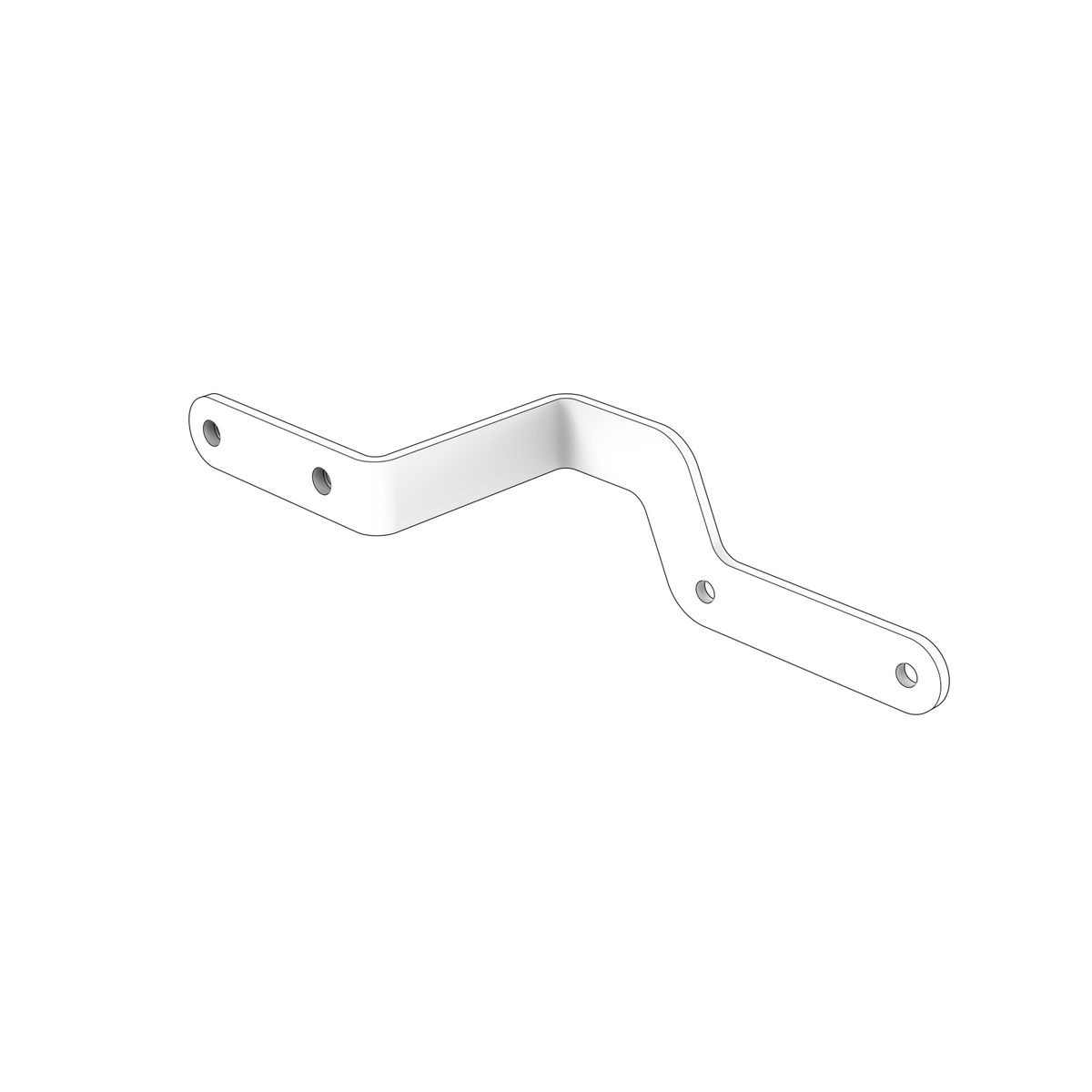

21385680 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine mounting bracket used in the turbocharger and heat-insulation area of Volvo Penta D13 marine engines. This bracket occupies the adjoining position to bracket 21385677 and helps secure the applicable shield, pipe or exhaust-system support assembly.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta engine bracket
• Used in the D13 inlet and exhaust-system assembly
• Supports turbocharger-area heat insulation or adjoining components
• Precision formed for correct mounting alignment
• Helps reduce vibration and fatigue loading
• Companion bracket to Volvo Penta 21385677

🔌 Function

The bracket maintains the correct position of the associated turbocharger-area or heat-insulation component. It prevents unsupported movement and reduces stress on adjoining pipes, shields, clamps and fasteners.

⚠️ Common Signs of Failure

• Metallic rattling during operation
• Cracked mounting ears
• Distorted bracket profile
• Loose heat shield or pipe support
• Fretting around bolt holes
• Contact between the supported component and nearby engine parts
• Repeated loosening or breakage of mounting hardware

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C1-A MP, D13C3-A MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C4-B MG, D13C2-B MG, D13C2-A MG, D13C1-A MG
