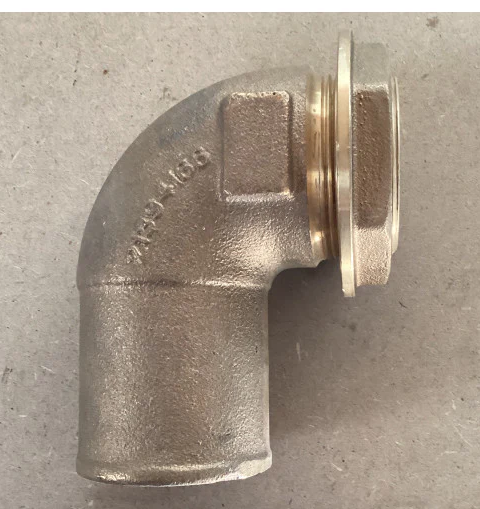

21394166 Hose Connection | Genuine Volvo Penta Part

🔧 Product Description

Two-inch hose connection used in the seawater intake and strainer circuit on specified Volvo Penta marine engines. The fitting connects the flexible intake hose to the strainer or adjoining water-inlet hardware and provides the correct bore, flange and thread geometry for high-volume raw-water flow.

🚤 Compatibility

Typically suits:

• Volvo Penta D8A2-A MP
• Volvo Penta D13C2-A MP
• Volvo Penta D13C4-A MP
• Volvo Penta D13B-E MH
• Volvo Penta D13B-E MH (FE)
• Volvo Penta D13B-N MH
• Volvo Penta D13B-N MH (FE)
• Volvo Penta D8A4-A MP
• Volvo Penta D13C6-A MP
• Volvo Penta D13C1-A MH
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11A-C MP
• Volvo Penta D11A-D MP
• Volvo Penta D11A-C (IPS)
• Volvo Penta D13C5-A MP

• Engine Family: D

⚙️ Key Features

• Genuine Volvo Penta 2-inch seawater hose connection
• Used in raw-water intake and strainer assemblies
• Correct internal bore for high-volume cooling-water flow
• Two connections used in specified installations
• Compatible with the associated Volvo strainer and valve hardware
• Engine type: Volvo Penta marine diesel with seawater-cooled heat-exchanger circuit

🔌 Function

Provides the sealed transition between the flexible seawater hose and the rigid strainer/valve assembly so the raw-water pump receives unrestricted cooling-water supply.

⚠️ Common Signs of Failure

• Water leakage or salt deposits around the joint
• Corrosion, cracking or damaged hose-barb surface
• Hose loosening or repeated clamp movement
• Restricted flow from internal scale or marine growth
• Air entering the suction side and causing poor seawater-pump priming

🛠️ Service Notes

• Check the connection and the hose bore are clean and undamaged, and push the hose fully onto the spigot past the bead before clamping
• Position the clamp on the parallel part of the spigot behind the bead, and tighten it enough to seal without cutting into the hose
• Renew the O-ring, gasket or sealing washer where the connection screws or bolts into a housing, and check the thread and the seat are clean and dry
• Support the pipework so the joint is not carrying the load or the pull of the hose — a connection loaded sideways will weep
• Fill, vent and pressurise the system, then check the joint cold and again at operating temperature, retightening the clamp if it has taken up

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 848321 - associated seawater strainer
• 848323 - associated flange nut
• 3837938 - associated ball valve

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
