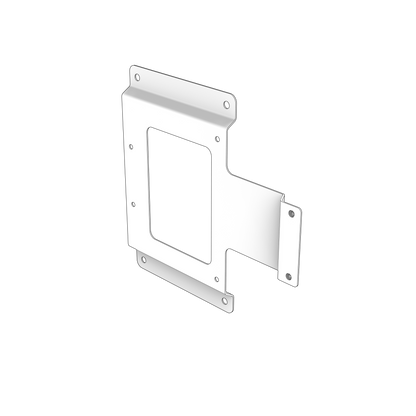

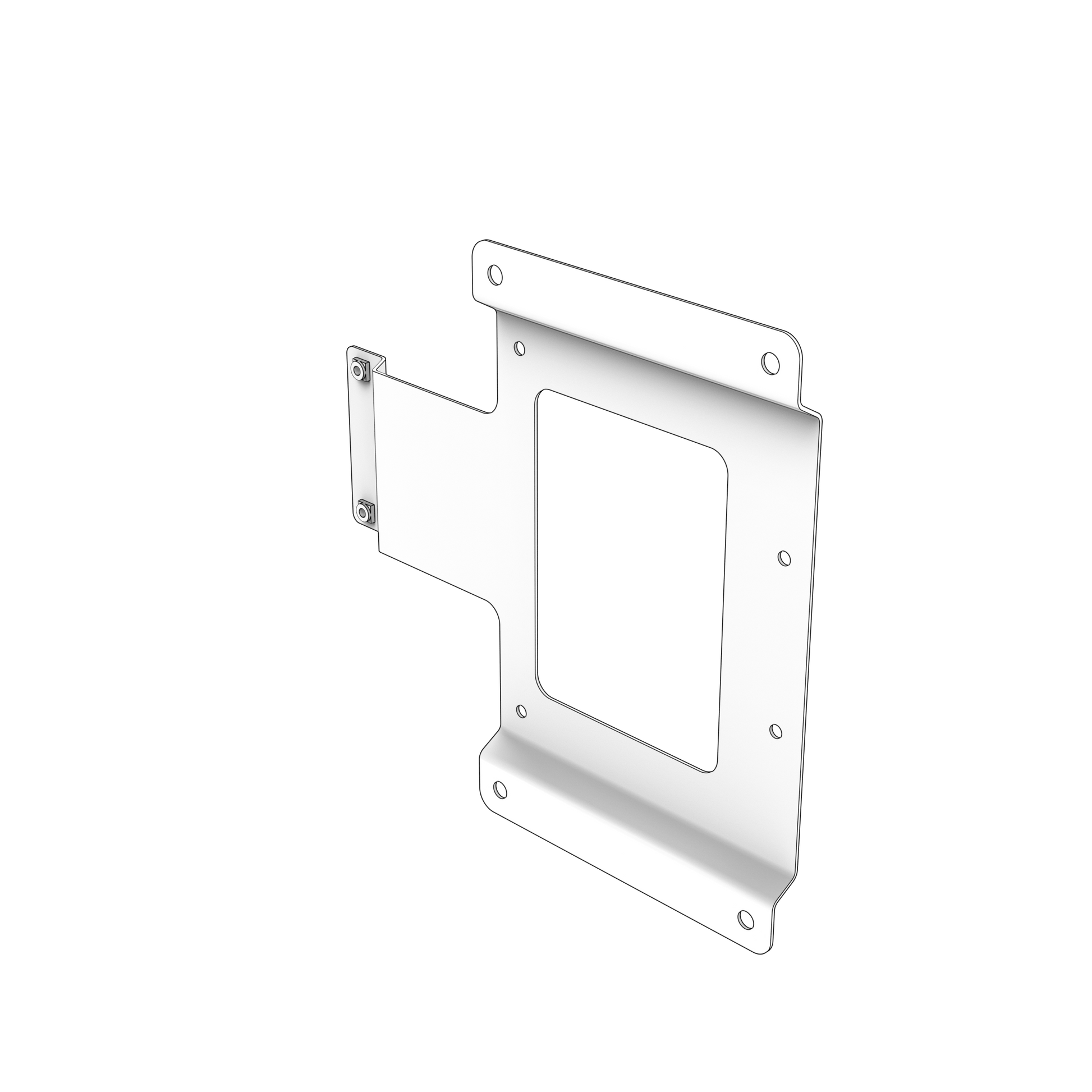

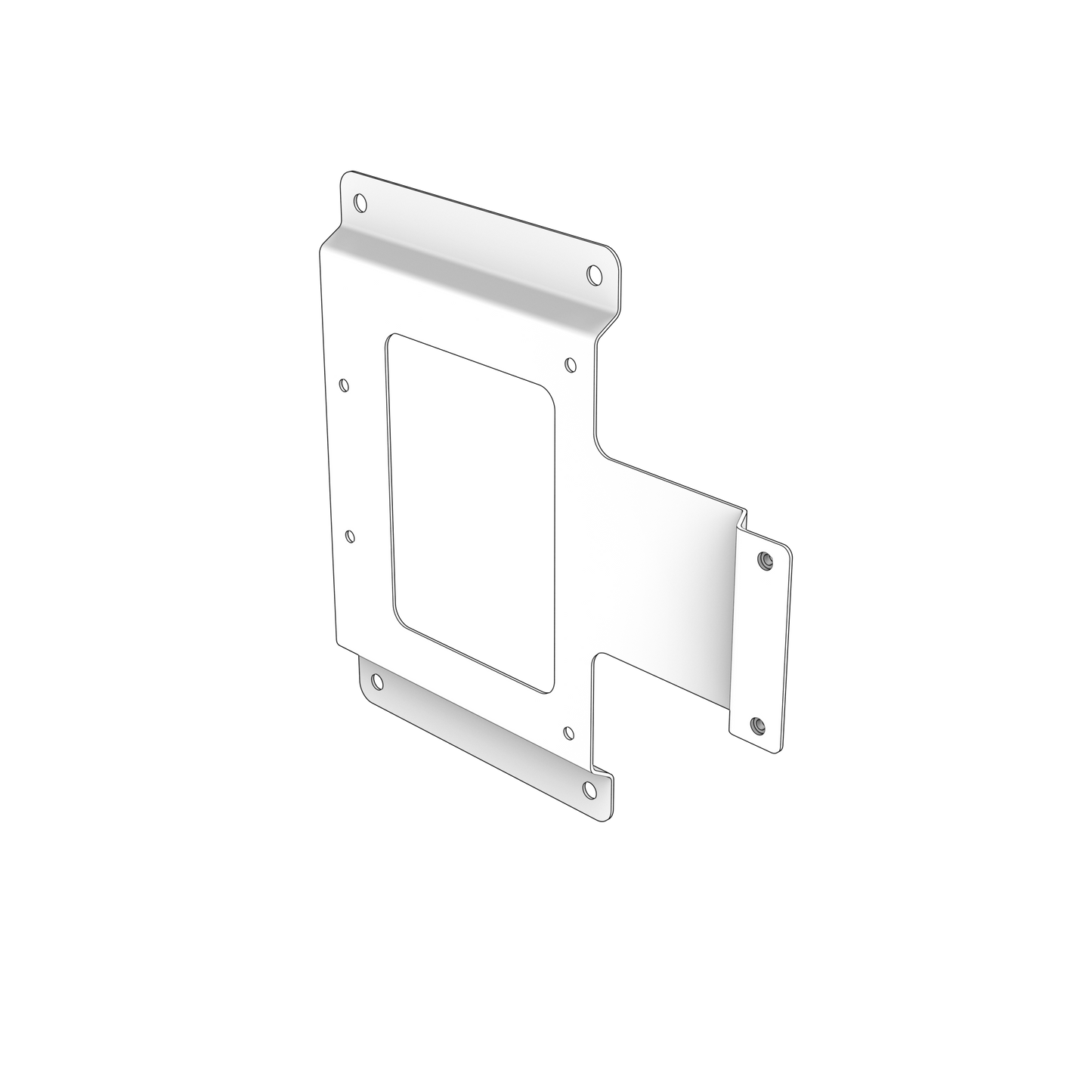

21402614 Bracket | Genuine Volvo Penta Part
21402614 Bracket | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Genuine mounting bracket used to support the engine control unit and associated electrical hardware on Volvo Penta D3 G- and H-generation marine diesel engines. It maintains module vibration isolation, connector clearance and harness routing.
🚤 Compatibility
Typically suits:
- Volvo Penta D3-220I-G
- Volvo Penta D3-140A-G
- Volvo Penta D3-170A-G
- Volvo Penta D3-200A-G
- Volvo Penta D3-220A-G
- Volvo Penta D3-140I-G
- Volvo Penta D3-110I-G
- Volvo Penta D3-150I-G
- Volvo Penta D3-170I-G
- Volvo Penta D3-200I-G
- Volvo Penta D3-110I-H
- Volvo Penta D3-140A-H
- Volvo Penta D3-170A-H
- Volvo Penta D3-200A-H
- Volvo Penta D3-220A-H
- Volvo Penta D3-150I-H
- Volvo Penta D3-170I-H
- Volvo Penta D3-200I-H
- Volvo Penta D3-220I-H
- Volvo Penta D3-140I-H
- Engine Family: D
- HP Range: 110-220 HP
⚙️ Key Features
- D3 G/H engine-control unit bracket
- Supports control unit 21092158
- Factory mounting-hole and module-clearance geometry
- Maintains wiring-harness and connector access
- Used with vibration damper 21192790
- Full D3 110HP-220HP G/H fitment
🔌 Function
The bracket supports and isolates the engine control unit while keeping the connectors, relay, fuse and harness branches in their designed positions.
⚠️ Common Signs of Failure
- Control unit vibrating excessively
- Loose module mounting
- Harness or connector strain
- Intermittent electronic faults caused by movement
- Vibration damper separation
🛠️ Service Notes
- Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
- Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
- Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
- Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
- On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21402614 → Supersedes 21317252
OEM / Related Numbers
- 21317252 earlier number superseded by this part
- 21092158 - Engine control unit
- 22427251 - Wiring harness
- 21400091 - Relay
- 21445385 - Related brackets
- 21759155 - Related brackets
- 21847110 - Stop button
- 21738845 - Cover
- 21445306 - Fuse
- 21192790 - Vibration damper
- 31331765 - Sensor
- 30637803 - Bracket
- 3840677 - Connection cable
- 3586269 - Warehouse software
- 3586268 - VODIA software
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
