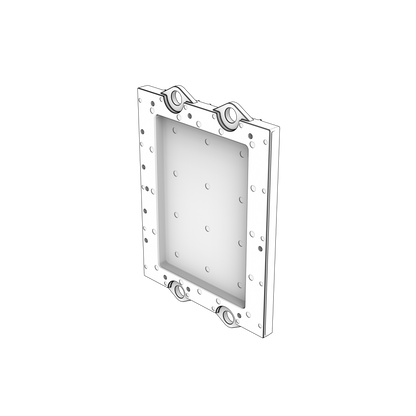

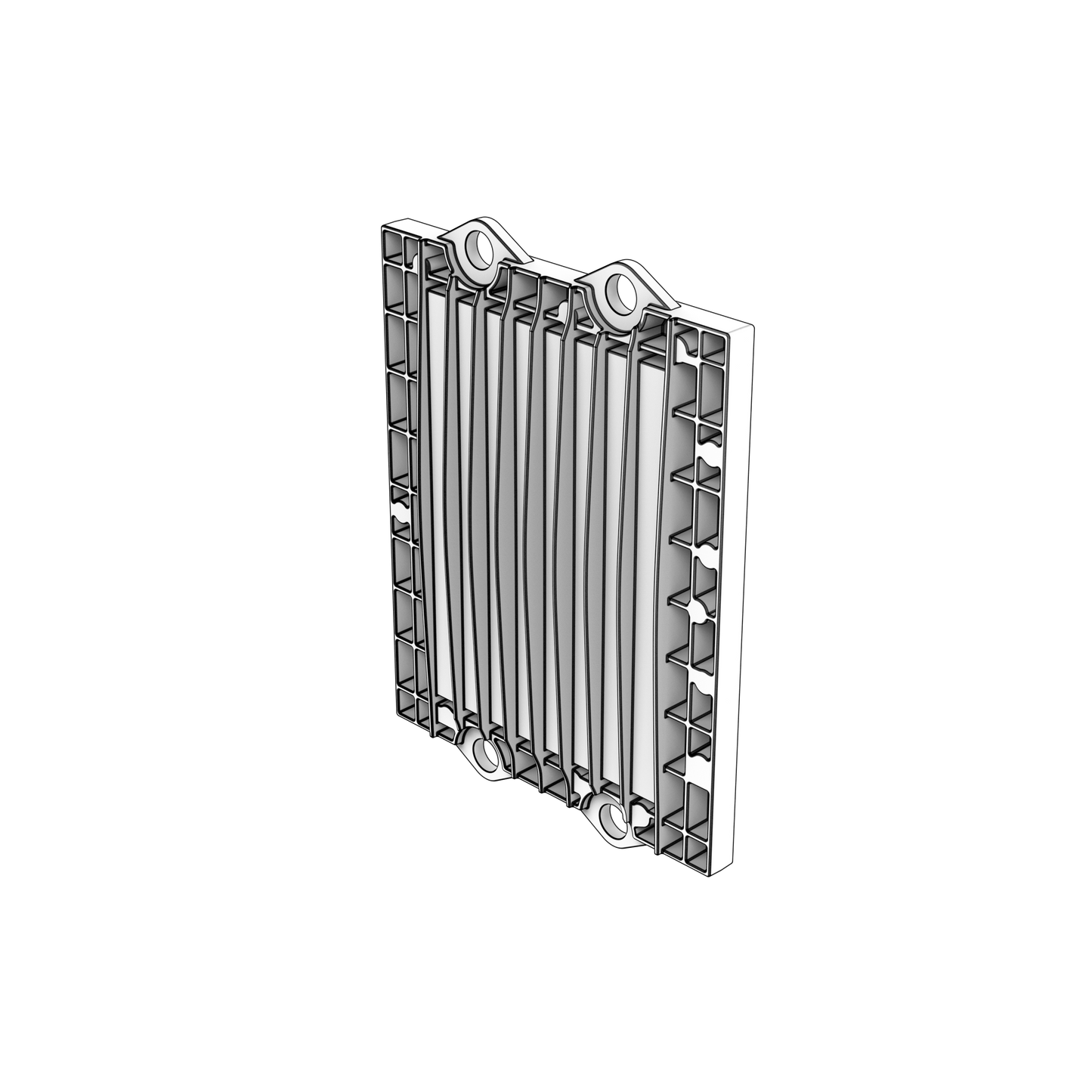

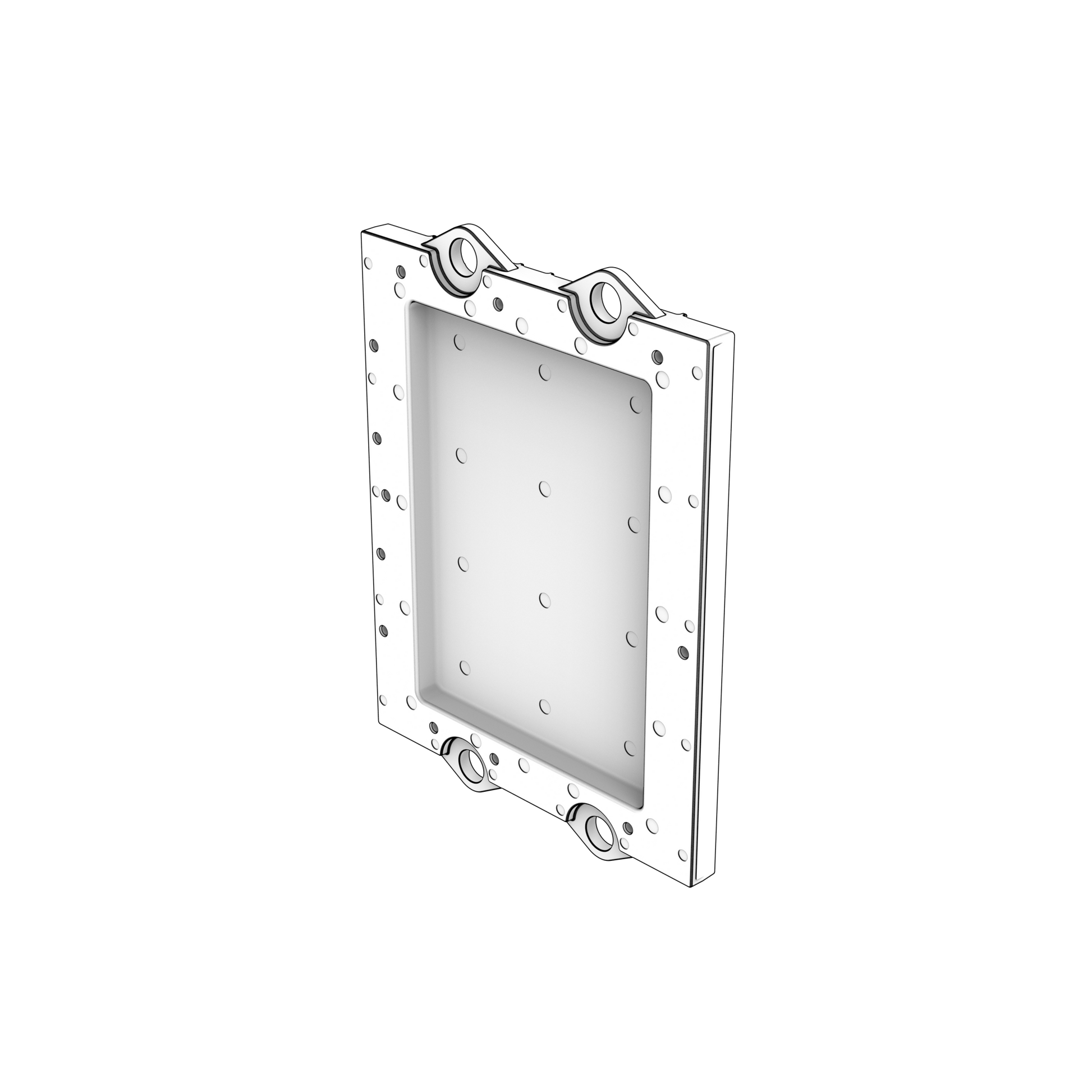

21402624 Support | Genuine Volvo Penta Part

🔧 Product Description

Genuine aluminium support and heat sink used to mount and cool the engine control unit on a broad range of Volvo Penta D4 and D6 common-rail marine diesel engines. It replaces earlier support 3584080 and conducts heat away from the electronic module while isolating it from engine vibration.

⚙️ Key Features

• Current replacement for ECU support 3584080
• Combined electronic-module support and heat sink
• Broad D4 and D6 common-rail application
• Maintains ECU connector and harness clearance
• Conducts module heat into the mounting structure
• Exact engine suffix and ECU generation control fitment

🔌 Function

The support secures the engine control unit and transfers heat away from the electronics to maintain reliable module temperature and connector alignment.

⚠️ Common Signs of Failure

• ECU overheating or thermal shutdown
• Intermittent electronic faults when the engine is hot
• Cracked or corroded support
• Loose ECU mounting
• Harness or connector strain
• Failed vibration-isolation mounts

🛠️ Service Notes

• Offer the support up and get both ends aligned with the fasteners finger-tight before tightening anything down — forcing a bracket into place leaves the component and the support permanently in strain
• Check the mating faces are clean and flat and that the support sits fully home without packing or shimming unless the workshop manual for your engine calls for it
• Inspect the old support, and the casting or panel it bolts to, for cracks around the bolt holes and elongated or worn holes; a support that has been working loose has usually damaged its seat as well
• Renew any locking fasteners and tighten to the figure given in the manual for your engine, then support the component so it is not left hanging on hoses, wiring or pipework
• Recheck the fasteners after the first period of running, and confirm the supported item still has clearance from moving parts and hot surfaces

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21402624 → Supersedes 3584080

OEM / Related Numbers

• 3584080 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
