21403629 Seal | Genuine Volvo Penta Part

🔧 Product Description

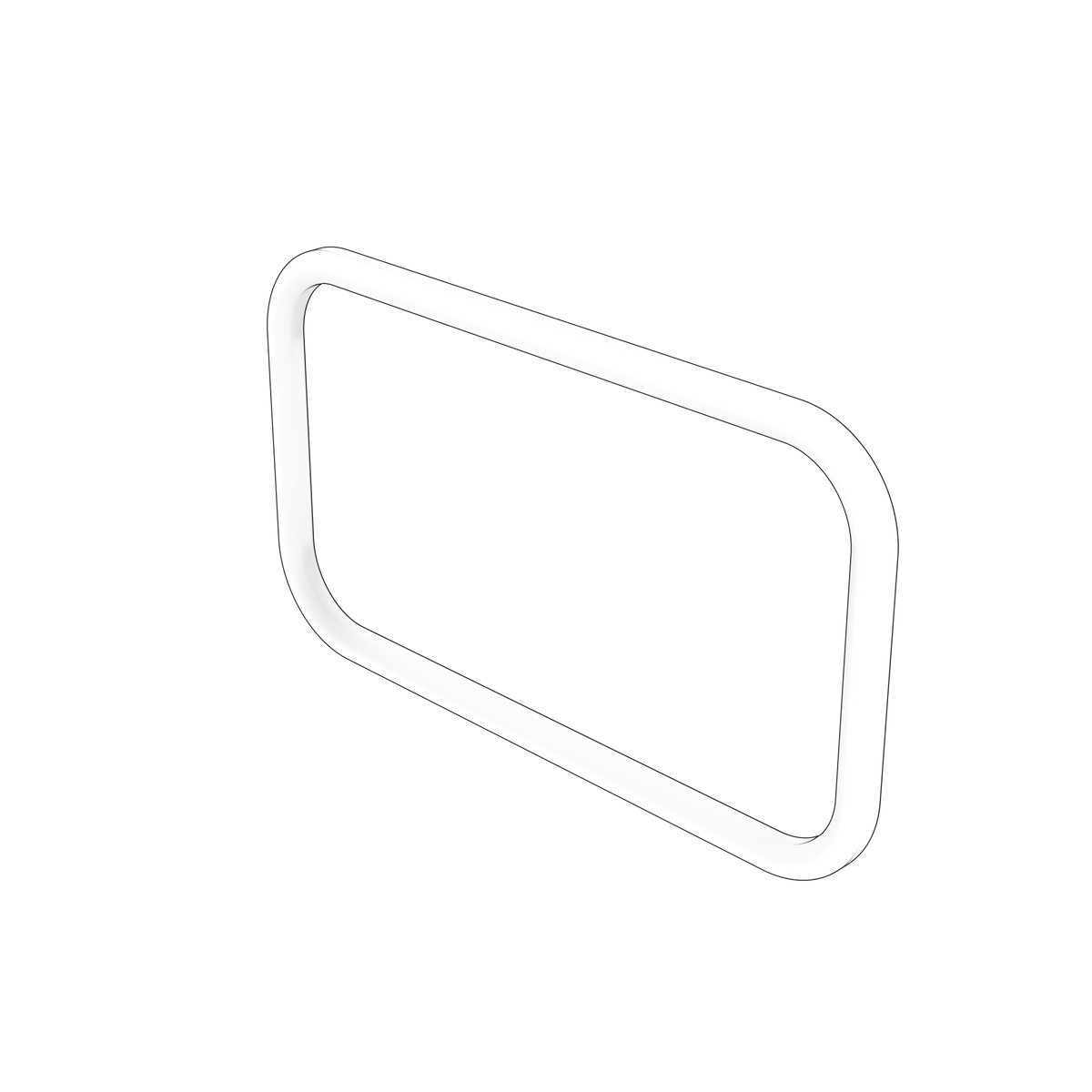

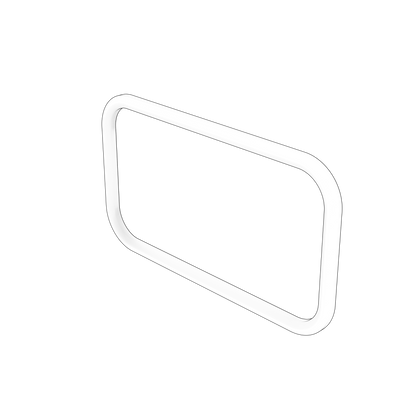

Genuine moulded seal fitted between cover plate 21403627 and the anode opening in catalyst-equipped Volvo Penta V6 and V8 petrol-engine exhaust manifolds. The seal prevents cooling water escaping around sacrificial anode 21403633.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Exhaust-manifold anode-cover seal
• Used with cover plate 21403627
• Used with aluminium anode 21403633
• Designed for raw water, heat and exhaust-manifold conditions
• Two seals are used in twin-manifold V6/V8 installations
• Single-use replacement recommended whenever the cover is removed
• 2 used per assembly

🔌 Function

The seal closes the joint around the manifold anode and prevents raw-water leakage from the exhaust-manifold water jacket.

⚠️ Common Signs of Failure

• Water seepage around the cover plate
• Seal flattened, split or heat-hardened
• Corrosion around the anode opening
• Leak recurring after anode replacement

🛠️ Service Notes

• Clean the housing bore and the shaft, and check the shaft for a wear groove where the old seal ran — a new seal on a grooved shaft will leak again
• Fit the seal with the lip and its garter spring facing the fluid being retained, normally inward towards the oil, and to the depth specified for that housing
• Press the seal in square using a driver or plate that bears on the seal's outer face and never on the lip; a cocked or dished seal will leak from new
• Lightly oil or grease the lip and the shaft before assembly unless the manual specifically calls for a dry fit, and protect the lip with tape or oiled paper when passing it over splines, keyways or threads
• Check the garter spring is still seated in its groove after fitting, then turn the assembly by hand before running it up

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21403627 - Cover plate
• 21403633 - Aluminium exhaust-manifold anode
• 963675 - Hex socket screw
• 946544 - Flange screw

Aftermarket / Verified Equivalents

• RECMAR: REC21403633 - Aftermarket anode and seal service package

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiCE-300-M, 5.7GiCE-300-MF, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 3.0GLP-N
