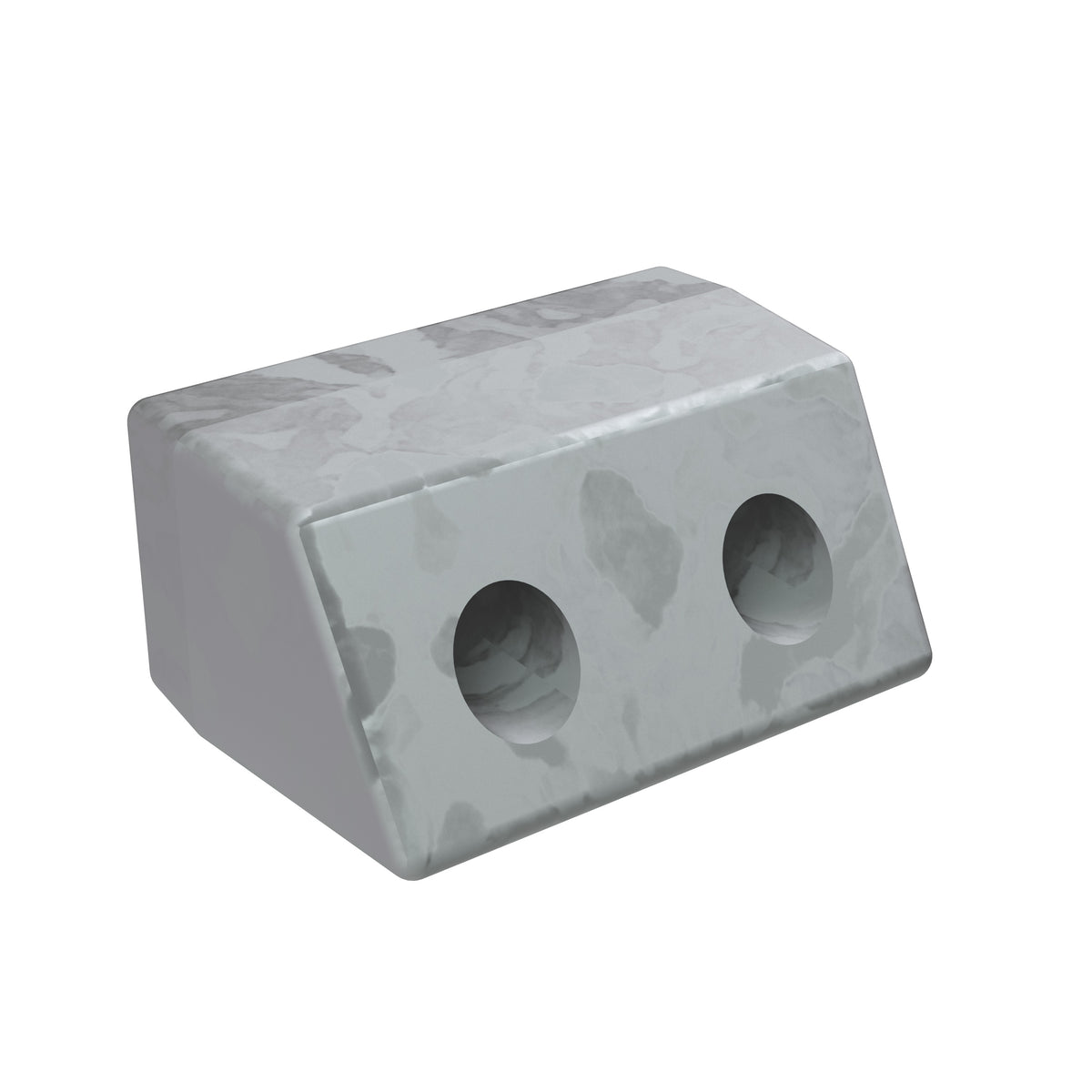

21403633 Anode | Genuine Volvo Penta Part

🔧 Product Description

Sacrificial anode weighing 0.100 kg, listed in the maintenance parts schedule as the manifold anode for the Gen 5 petrol engines: the V6-200, V6-240 and V6-280, the V8-300 and V8-350, and the 6.2-litre V8-380 and V8-430. It sits in the water jacket of the exhaust manifold behind cover plate 21403627, with seal 21403629, and two are used in twin-manifold installations. The earlier Gen 1+ V6 and V8 engines and the 6.0-litre V8 take heat exchanger anode 3858995 instead.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Manifold anode for the Gen 5 V6-200 to V6-280 and V8-300 to V8-430
• 0.100 kg
• Installed behind cover plate 21403627 and used with seal 21403629
• Two anodes are used in twin-manifold installations
• 3858995 is the heat exchanger anode for the earlier V6 and V8 engines
• 2 used per assembly
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Anode
• Fits: V6-200/240/280, V8-300/350 (Gen 5), V8-380/430 (6.2L Gen 5) (manifolds)

📋 Kit Contents

• 1 × Genuine Volvo Penta aluminium exhaust-manifold anode - Part Number: 21403633
• Cover plate, seal and mounting screws are not included

🔌 Function

The anode sacrifices its own material to reduce galvanic corrosion of the exhaust manifold water jacket and the connected exhaust components.

⚠️ Common Signs of Failure

• Anode more than half consumed
• Heavy pitting or fragmentation
• Rapid manifold corrosion
• Anode remaining intact because of poor electrical contact
• Water leakage around the anode cover
• Damaged anode mounting surface

🛠️ Service Notes

• Volvo Penta now recommends aluminium anodes for salt and brackish water in place of zinc and is phasing most zinc anodes out, so check what is on the boat when you renew
• Clean the seat to bright metal so the anode makes proper electrical contact, and never paint or coat an anode
• Do not clean an anode with sandpaper, a wire brush or steel tools, as these damage the galvanic protection
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21403627 - Cover plate; ordered separately
• 21403629 - Seal; ordered separately
• 963675 - Hex socket screw; ordered separately
• 946544 - Flange screw; ordered separately

Aftermarket / Verified Equivalents

• RECMAR: REC21403633

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiCE-300-M, 5.7GiCE-300-MF, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 3.0GLP-N
