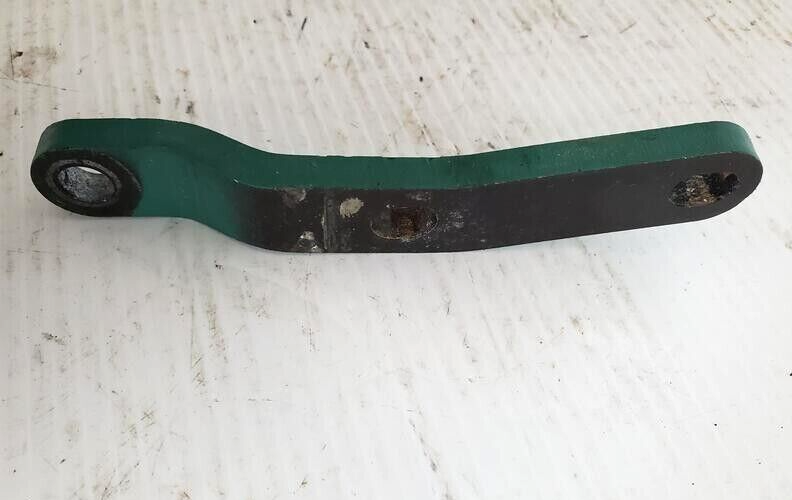

21406493 Stay | Genuine Volvo Penta Part

🔧 Product Description

A rigid support stay used to brace the heat exchanger and adjoining cooling-system structure on selected Volvo Penta D3 marine diesel engines. It reduces movement of the cooler and helps prevent vibration loading on hoses and brackets.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta heat-exchanger stay
• Correct length and factory mounting geometry
• Supports the cooler and connected hose assembly
• Reduces vibration and mounting fatigue
• Used with the original D3 heat-exchanger brackets and profile
• Engine type: D3 five-cylinder turbocharged marine diesel

🔌 Function

Braces the heat exchanger and maintains the designed position of the cooler, hoses and mounting brackets.

⚠️ Common Signs of Failure

• Cracked or bent stay
• Heat-exchanger movement or vibration
• Coolant-hose chafing
• Repeatedly loosening mounting screws
• Cooler misalignment after service or impact

🛠️ Service Notes

• A stay supports a component and braces it against engine vibration, so offer it up and get the fasteners started before anything in the joint is finally tightened
• Leave all the fasteners finger tight, then tighten them in the order the manual gives, so the stay is not used to drag a misaligned component into position
• If the stay will not line up without strain, find out why rather than pulling it up on the bolts — a stay under tension feeds that load straight into the bracket, casting or pipe it is meant to support
• Renew a stay that is cracked, bent or has elongated fixing holes instead of straightening it; its whole function is stiffness, and a distorted or loosely held stay transmits vibration rather than resisting it
• Use the specified fasteners with their washers, tightened to the figures in the workshop manual for your engine, and recheck them whenever the component the stay supports is disturbed

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21308169 - related heat-exchanger stay
• 21306599 - support profile
• 21572462 - heat-exchanger bracket
• 22004363 - related heat exchanger
• 21166146, 21166149 and 21454184 - related hoses

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
