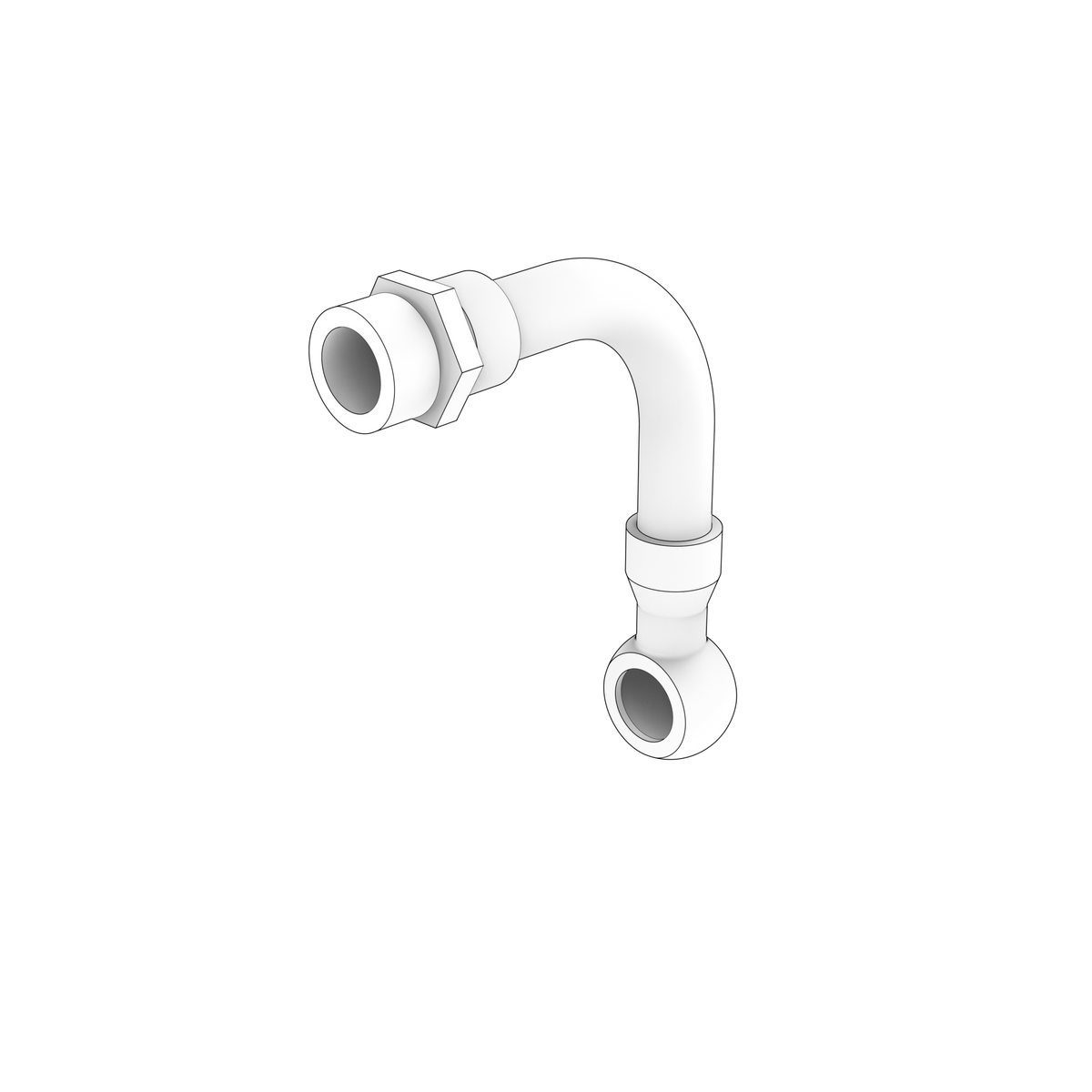

• 21406534 Servo Pipe | Genuine Volvo Penta Part

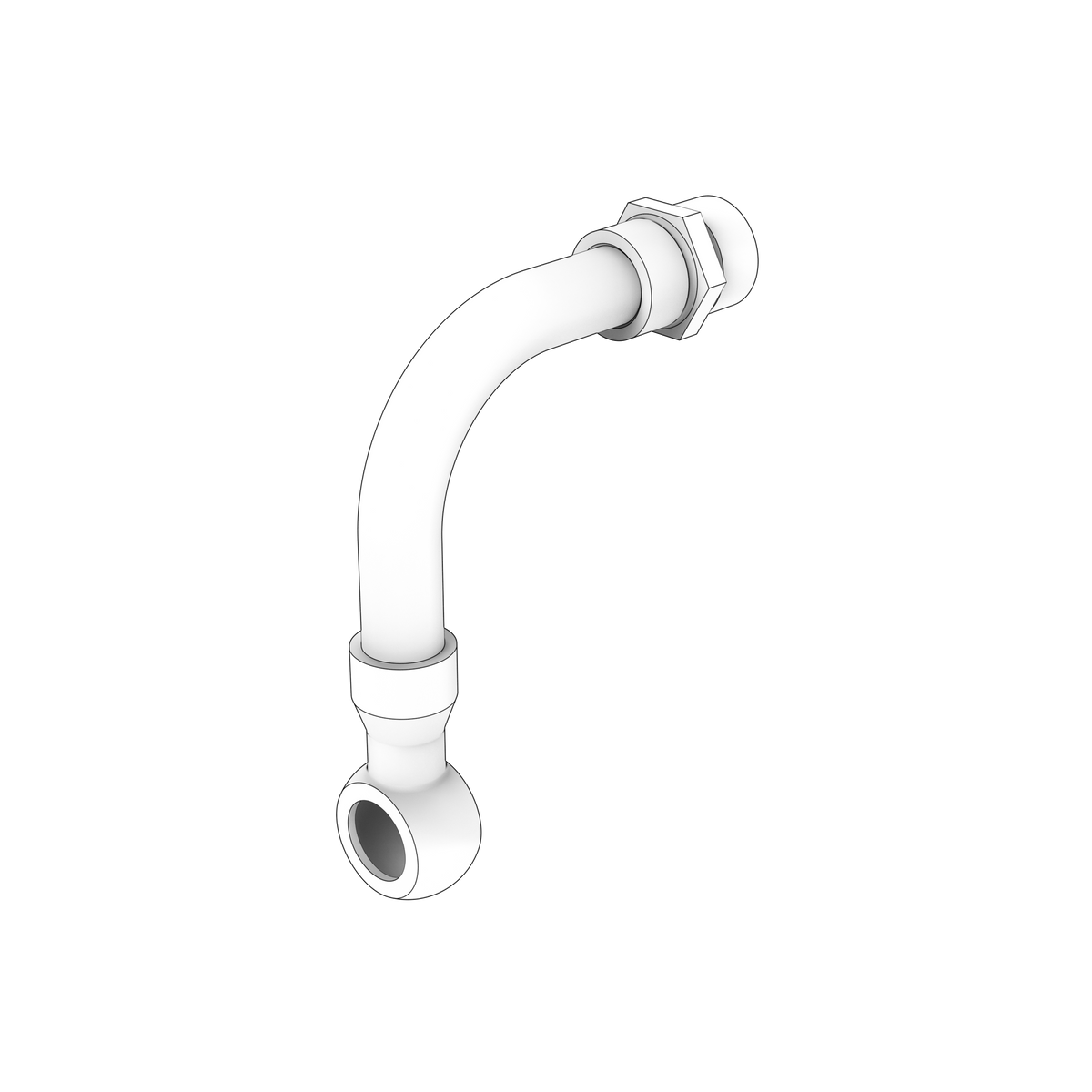

  • 21406534 Servo Pipe | Genuine Volvo Penta Part - photo 2 of 2
1 2

21406534 Servo Pipe | Genuine Volvo Penta Part

21406534 Servo Pipe | Genuine Volvo Penta Part

$995.19 AUD
$995.19 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

A rigid control or servo pipe used in the fuel-pump, hand-pump and check-valve circuit on selected Volvo Penta TAD13 and TAD16 industrial engines. It carries fuel or control pressure between the pump housing and associated banjo fittings.

🚤 Compatibility

  • Engine Family: D, TAD, TWD

Full model list at the end of this description.

⚙️ Key Features

  • Genuine Volvo Penta formed servo pipe
  • Designed for the original fuel-pump housing
  • Correct banjo and hollow-screw connection geometry
  • Pressure- and diesel-resistant construction
  • Maintains factory routing around the pump and hand-primer assembly
  • Engine type: TAD13 or TAD16 inline-six turbocharged industrial diesel

🔌 Function

Transfers fuel or servo pressure through the pump and priming circuit while maintaining a sealed rigid connection.

⚠️ Common Signs of Failure

  • Diesel leakage at a banjo connection
  • Loss of fuel-system prime
  • Cracked pipe near a formed bend
  • Difficult starting or fuel-pressure instability

🛠️ Service Notes

  • Carries fuel or servo pressure between the pump housing and the banjo fittings on the fuel-pump, hand-pump and check-valve circuit for TAD13/TAD16 engines - this is a fuel-circuit pipe, not a steering-circuit pipe, so steering bleed procedures do not apply to it
  • At 0.136 kg, renew the sealing washers at each banjo connection and check for weeping under running pressure after fitting

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 21559978 - related support bracket
  • 941686 and 191620 - hollow screws
  • 982724 and 982508 - sealing gaskets
  • 1598185 - banjo nipple
  • 3889704 - hand-pump housing
  • 244834 - non-return valve
  • 3837393 - hand pump

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C8-B MP
  • Volvo Penta D16C-A MG, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
  • Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
  • Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
  • Volvo Penta TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
  • Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
  • Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
  • Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
  • Volvo Penta TAD1342VE, TAD1342GE
  • Volvo Penta TAD1343VE, TAD1343GE
  • Volvo Penta TAD1345GE, TAD1345VE
  • Volvo Penta TAD1350GE, TAD1350VE
  • Volvo Penta TAD1351GE, TAD1351-53VE
  • Volvo Penta TAD1643VE-B, TAD1643VE
  • Volvo Penta TAD1340VE
  • Volvo Penta TAD1352GE
  • Volvo Penta TAD1353GE
  • Volvo Penta TAD1354GE
  • Volvo Penta TAD1355GE
  • Volvo Penta TAD1360-62VE
  • Volvo Penta TAD1363-65VE
  • Volvo Penta TAD1371-75VE
  • Volvo Penta TAD1651GE
  • Volvo Penta TAD1660-62VE
  • Volvo Penta TAD1662VE EU5
  • Volvo Penta TAD1670-72VE
  • Volvo Penta TWD1643GE
  • Volvo Penta TWD1652GE
  • Volvo Penta TWD1653GE
  • Volvo Penta TWD1663GE
