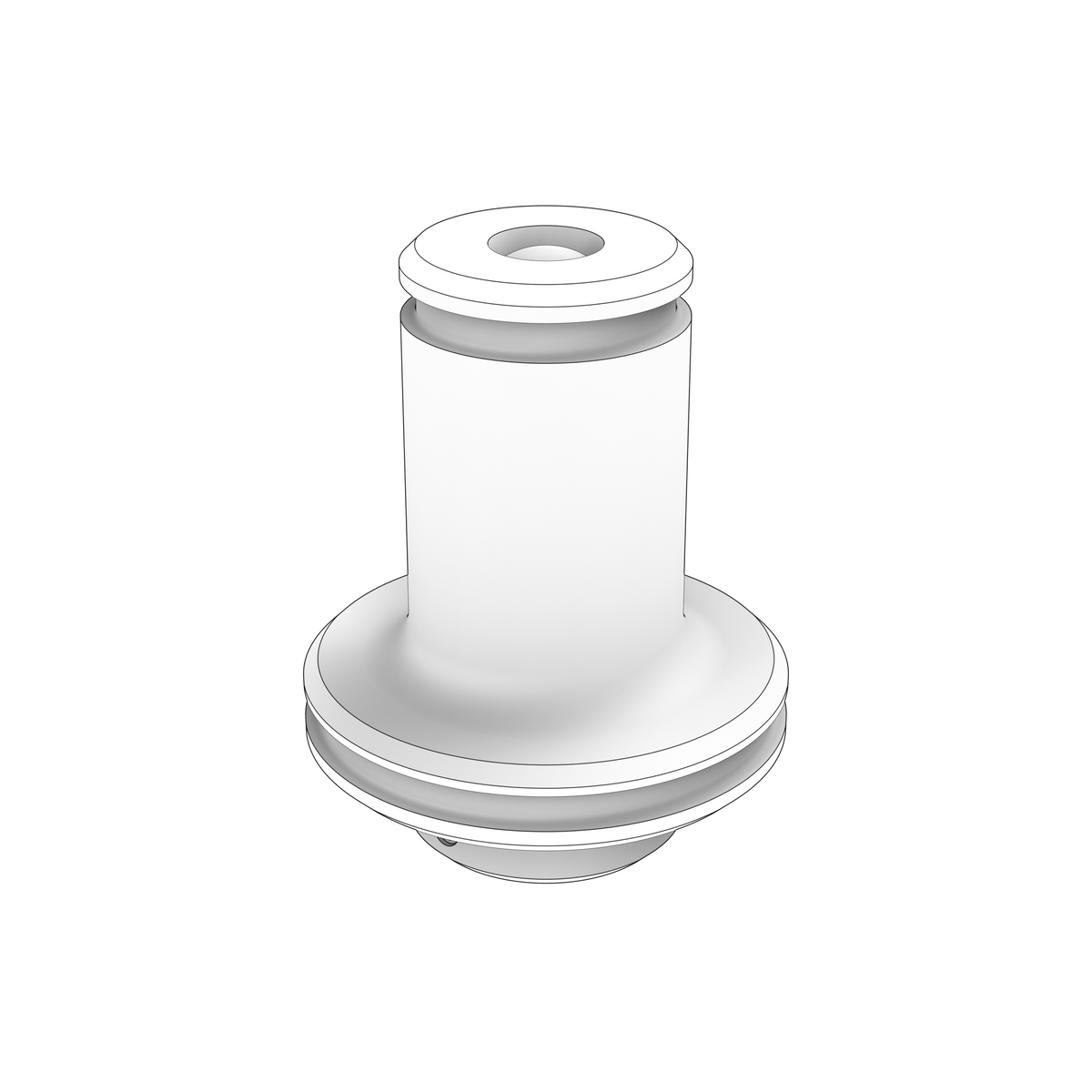

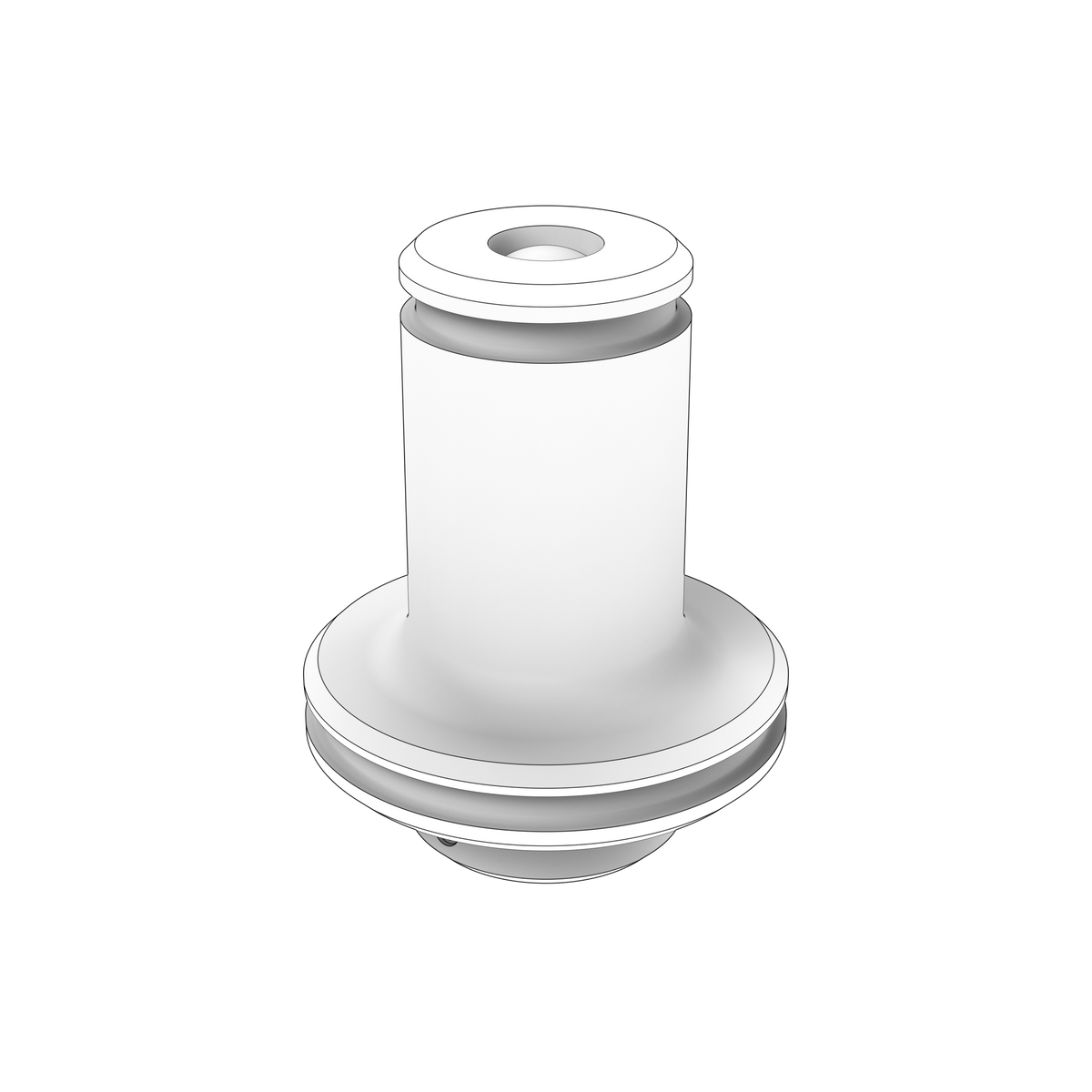

21412587 Sleeve | Genuine Volvo Penta Part

🔧 Product Description

Precision sleeve fitted in the oil-pump and low-oil-sump assembly of Volvo Penta IPS-D drives. It forms a guided bore or seat within the pump housing and works with sleeve 21412565, spring 814184, spring pin 951936 and ball 190297 in the internal oil-control arrangement.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta IPS-D internal oil-pump sleeve
• Works with spring-loaded ball and companion sleeve components
• Precision-machined internal transmission component
• Requires clean assembly and exact drive identification
• Engine type: Volvo Penta IPS marine propulsion drive

🔌 Function

Guides and supports the spring-loaded internal oil-control components in the IPS lubrication pump so pressure and flow are regulated correctly.

⚠️ Common Signs of Failure

• Scoring or wear inside the sleeve bore
• Low or unstable drive-oil pressure
• Sticking spring-loaded ball or valve action
• Metal debris found during drive overhaul
• Incorrect oil-pump operation after internal wear

🛠️ Service Notes

• Check which way round the sleeve goes before the old one comes out — sleeves are rarely symmetrical, and one end is usually chamfered or stepped to lead into the bore
• Clean and inspect the bore it seats in; a sleeve takes its final shape and fit from that bore, so corrosion, scoring or an oval bore will spoil a new part
• Draw or press the sleeve in square with the correct tool rather than driving it in — a sleeve started crooked will nip, and the material displaced by a hammer blow never fully recovers
• Renew any O-ring, seal or gasket that seats against the sleeve while it is out, and lubricate on assembly as the manual for your engine specifies
• Confirm the sleeve is fully home to the depth or flush condition the workshop manual gives before reassembling anything on top of it

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21412565 - companion sleeve
• 814184 - spring
• 951936 - spring pin
• 190297 - ball
• 21521380 - associated oil-pump kit
• 21412509 - pump-housing references
• 22918960 - pump-housing references
• 21233933 - pump element
• 21233907 - cover

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-C, IPS-D, IPS-E, IPS-F
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
