21412904 Inlet Manifold | Genuine Volvo Penta Part

🔧 Product Description

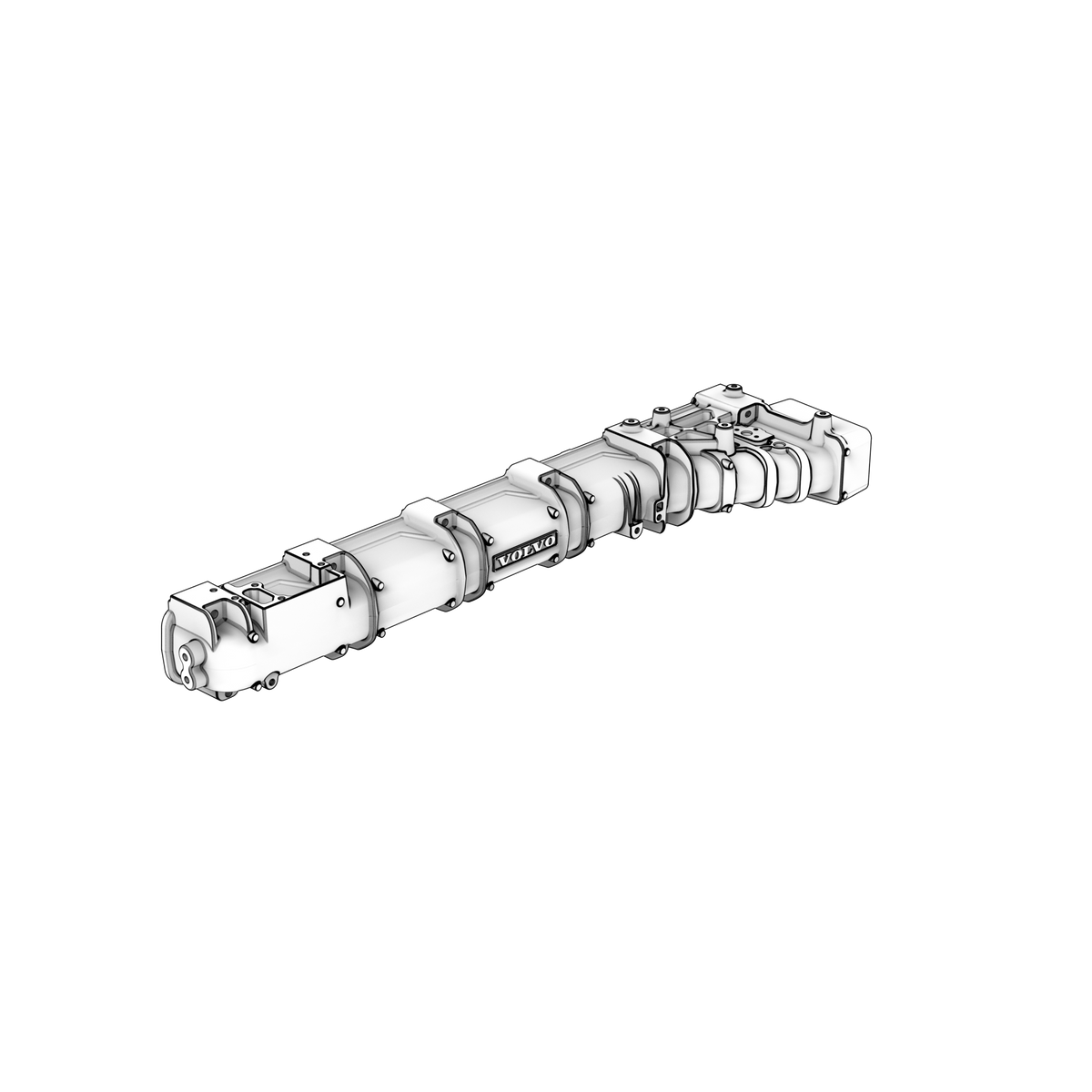

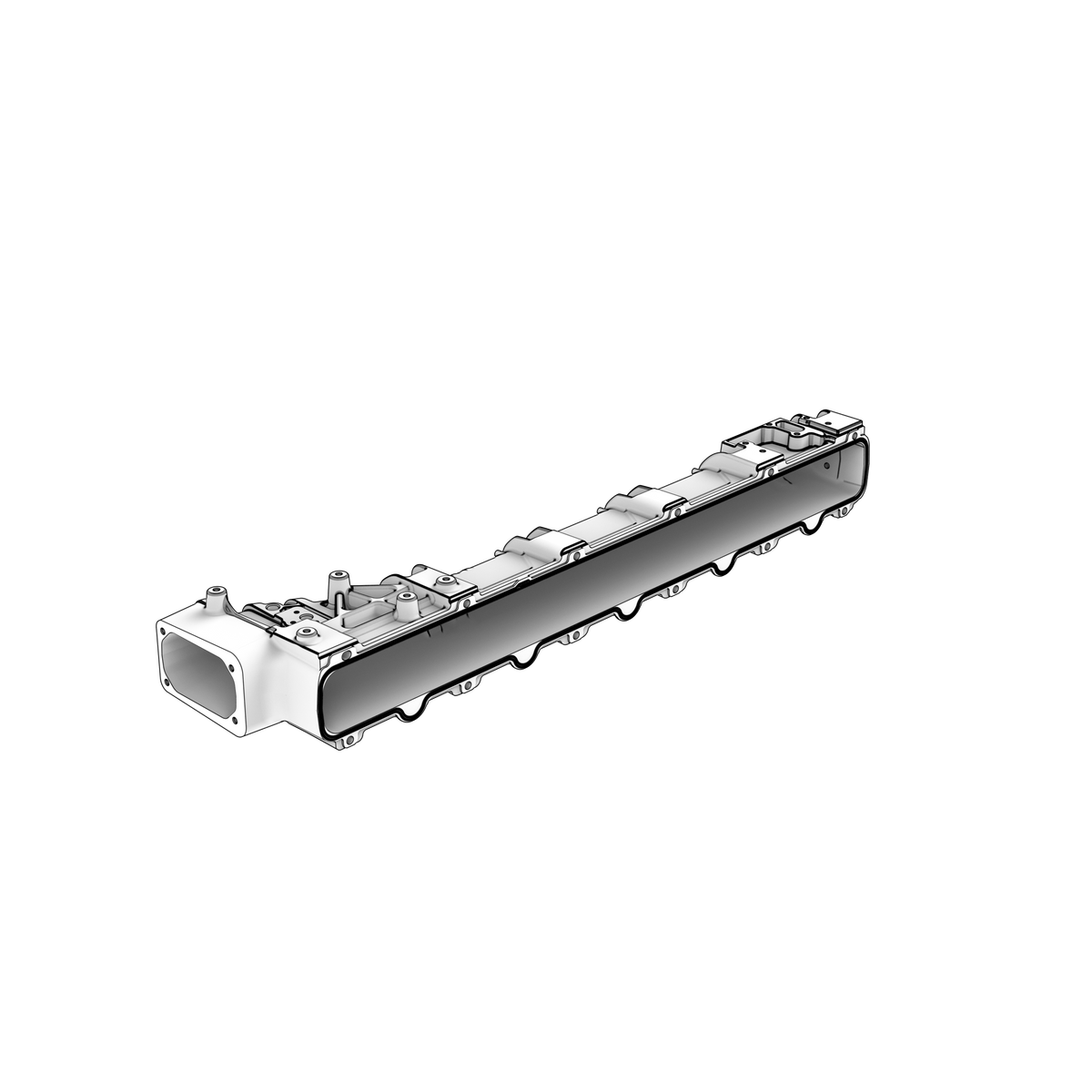

Cast intake manifold for the Volvo Penta TWD1643GE generating-set engine. It distributes charge air from the connecting pipe and charge-air cooler evenly to the cylinder-head intake ports while providing the correct mounting points for sensors, gaskets and associated air-system hardware.

🚤 Compatibility

• Engine Family: D, TWD

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta TWD1643GE inlet manifold
• Cast manifold matched to the 16-litre engine air system
• Distributes charge air evenly across all cylinders
• Correct sensor, flange and gasket interfaces
• Direct replacement for a cracked or damaged original manifold
• Engine type: Volvo Penta 16-litre inline six-cylinder industrial diesel

🔌 Function

Receives compressed and cooled intake air and divides it evenly among the engine cylinders.

⚠️ Common Signs of Failure

• Boost leakage at the manifold or gaskets
• Cracks or porosity in the casting
• Oil mist or soot tracking around flange joints
• Uneven cylinder performance caused by air leakage
• Damaged sensor ports or mounting threads

🛠️ Service Notes

• Blank the open ports as soon as the manifold is off, so nothing can drop into a cylinder or the head while it is away
• Clean both mating faces without scoring them, check the manifold for flatness, cracks and corrosion, and fit new gaskets and seals throughout
• Clean out oil, soot and carbon deposits from the manifold interior before refitting, and look at the crankcase breather arrangement if the build-up is heavy — refitting a fouled manifold puts the restriction straight back
• Tighten the fasteners evenly, working outwards from the centre in stages to the figures given in the workshop manual for your engine
• Refit and check all charge air, breather and sensor connections and their clips; an air leak on a pressure-charged inlet shows up as lost power and smoke rather than an audible leak

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21412904 → Supersedes 21161014 → Supersedes 3595067 → Supersedes 3887300 → Supersedes 3841085

OEM / Related Numbers

• 21161014 earlier number superseded by this part
• 3595067 earlier number superseded by this part
• 3887300 earlier number superseded by this part
• 3883827 earlier number superseded by this part
• 3841085 earlier number superseded by this part
• 20794356 - associated inlet-manifold gasket family
• Charge-air pipe and adapter components must be matched to the TWD1643GE configuration

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta TWD1683GE-B, TWD1683VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1744GE
