21434106 Bracket | Genuine Volvo Penta Part

🔧 Product Description

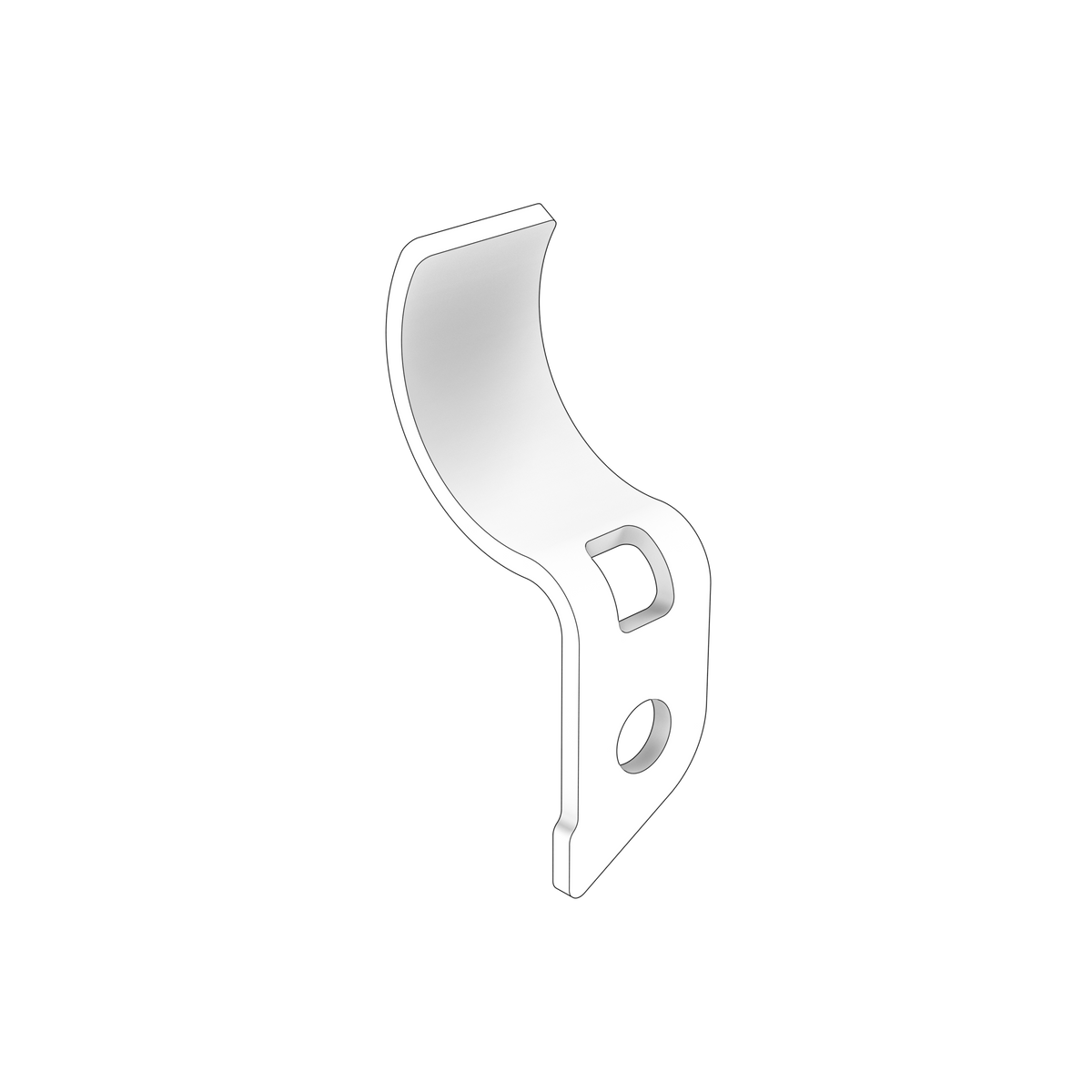

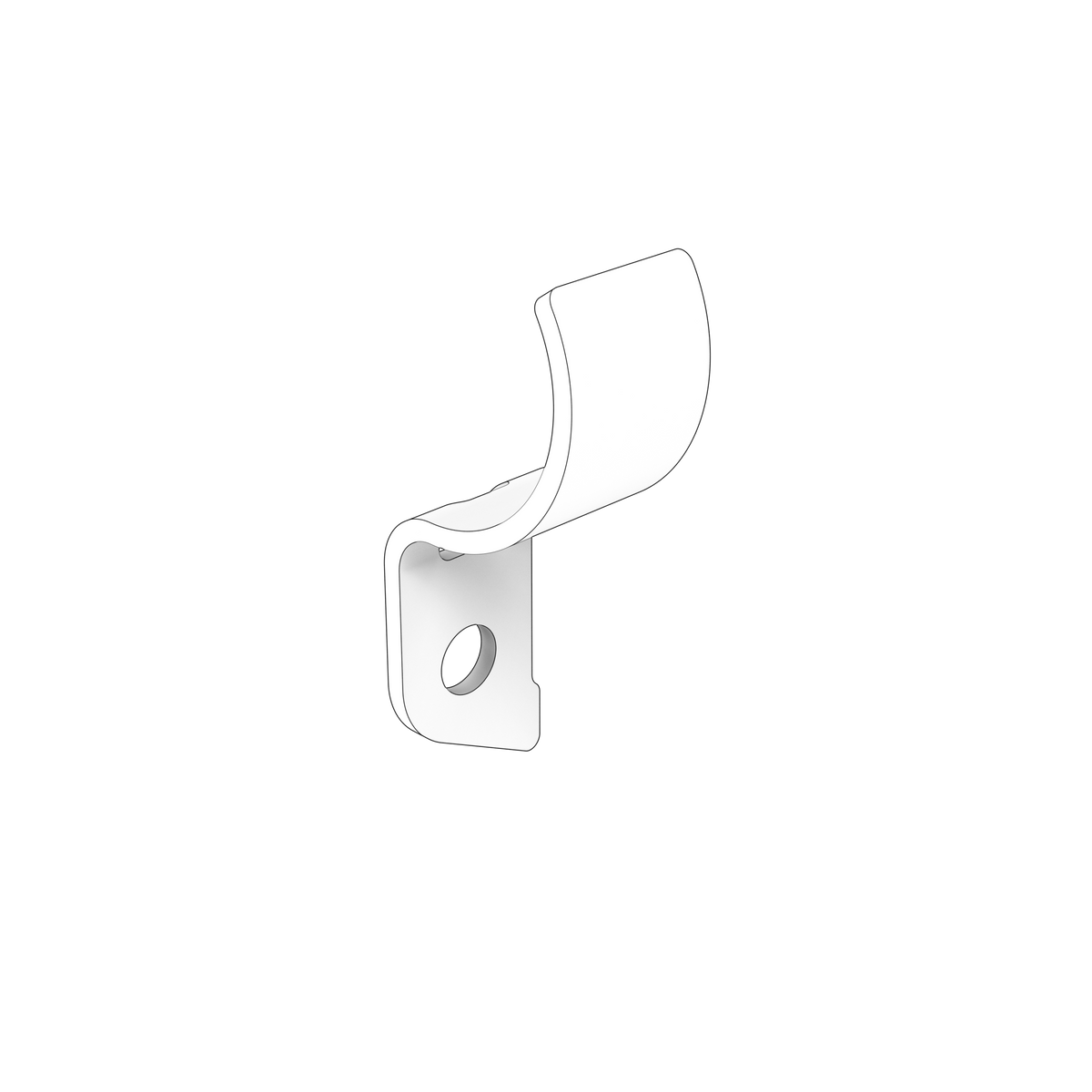

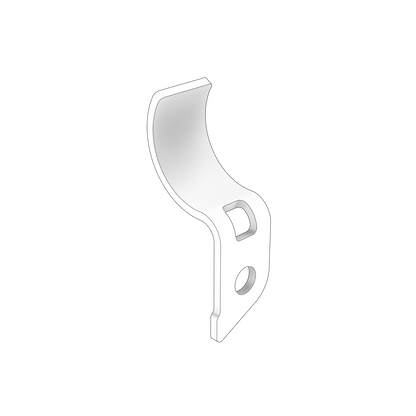

A formed mounting bracket used to support the hydraulic power-steering pump and related hardware on selected Volvo Penta V8 marine petrol engines.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta steering-system bracket
• Maintains pump and pulley alignment
• Supports the original steering reservoir and hose arrangement
• Used with support rubber 21434108
• Designed for marine V8 accessory-drive loads
• Engine type: V8 marine petrol

🔌 Function

Supports the steering pump and maintains correct alignment between the pump pulley and accessory-drive belt.

⚠️ Common Signs of Failure

• Belt misalignment or squeal
• Steering-pump movement
• Repeated hose or fitting leakage
• Excessive accessory-drive vibration

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3852490 - later attaching-clamp arrangement listed for affected installations

OEM / Related Numbers

• 21434108 - support rubber
• 3887373 - power-steering pump
• 3889611 - pump pulley
• 3888739 - steering hose
• 21452588 - steering hose assembly
• 21399019 - hydraulic oil cooler
• 3887375 - steering-fluid reservoir

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXiE-P, 5.7GXi-P, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A
• Volvo Penta V6-200-A, V6-225-A, V6-225-E-A
