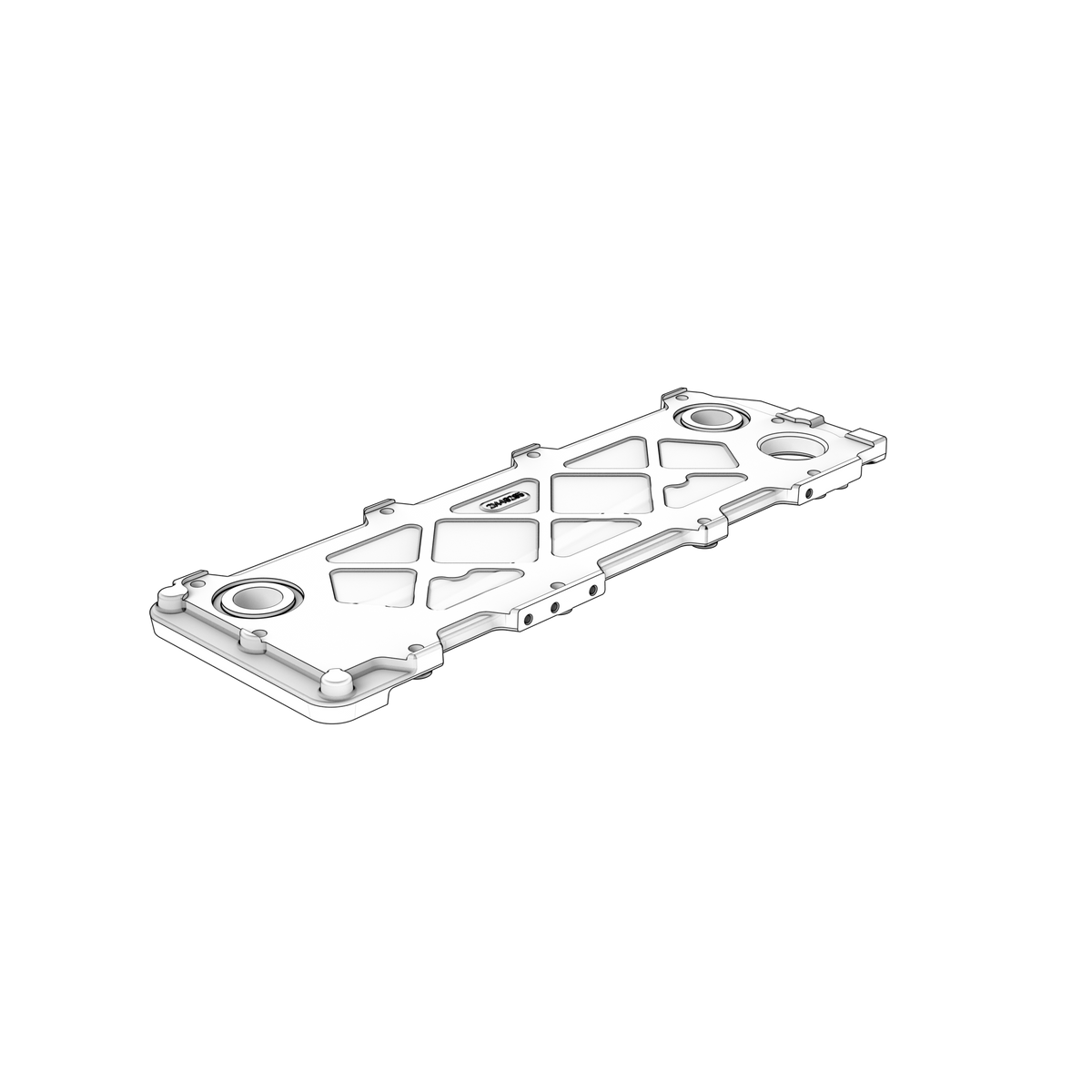

21446285 Bottom Plate | Genuine Volvo Penta Part

🔧 Product Description

A structural compression plate fitted at the bottom of selected Volvo Penta D13 and D16 plate-type heat exchangers. One plate is normally used per applicable cooler assembly.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta structural bottom plate
• Supports and compresses the cooling-plate stack
• Maintains even gasket loading
• One normally required per heat exchanger
• Designed for large D13 and D16 marine coolers
• Engine type: D13 or D16 turbocharged marine diesel

🔌 Function

Forms the lower structural plate that compresses and supports the heat-exchanger plate stack.

⚠️ Common Signs of Failure

• Plate distortion
• Uneven compression of the cooler stack
• External leakage around the lower plates
• Cracks around the tie-bolt or mounting points

🛠️ Service Notes

• At over 7 kg this bottom plate is heavy enough that it must be supported while the last through-bolts are removed, not left hanging on the plate stack above it
• Renew the gaskets between the plate stack and this bottom plate as a set when the cooler is opened, and draw the through-bolts down evenly and in sequence so the stack compresses square rather than tilting on one corner

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21446285 → Supersedes 21111085

OEM / Related Numbers

• 21111085 earlier number superseded by this part
• 21111056 - top plate
• 21242894 - bottom cooling plate
• 21242895 and 21242897 - internal cooling plates
• 21242898 - middle cooling plate
• 21242902 - plate gasket
• 22948727 and 23808623 - heat-exchanger assemblies

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C1-B MG, D13C3-B MG, D13C5-A MP, D13C1-A MG, D13C7-B MP, D13C8-B MP
