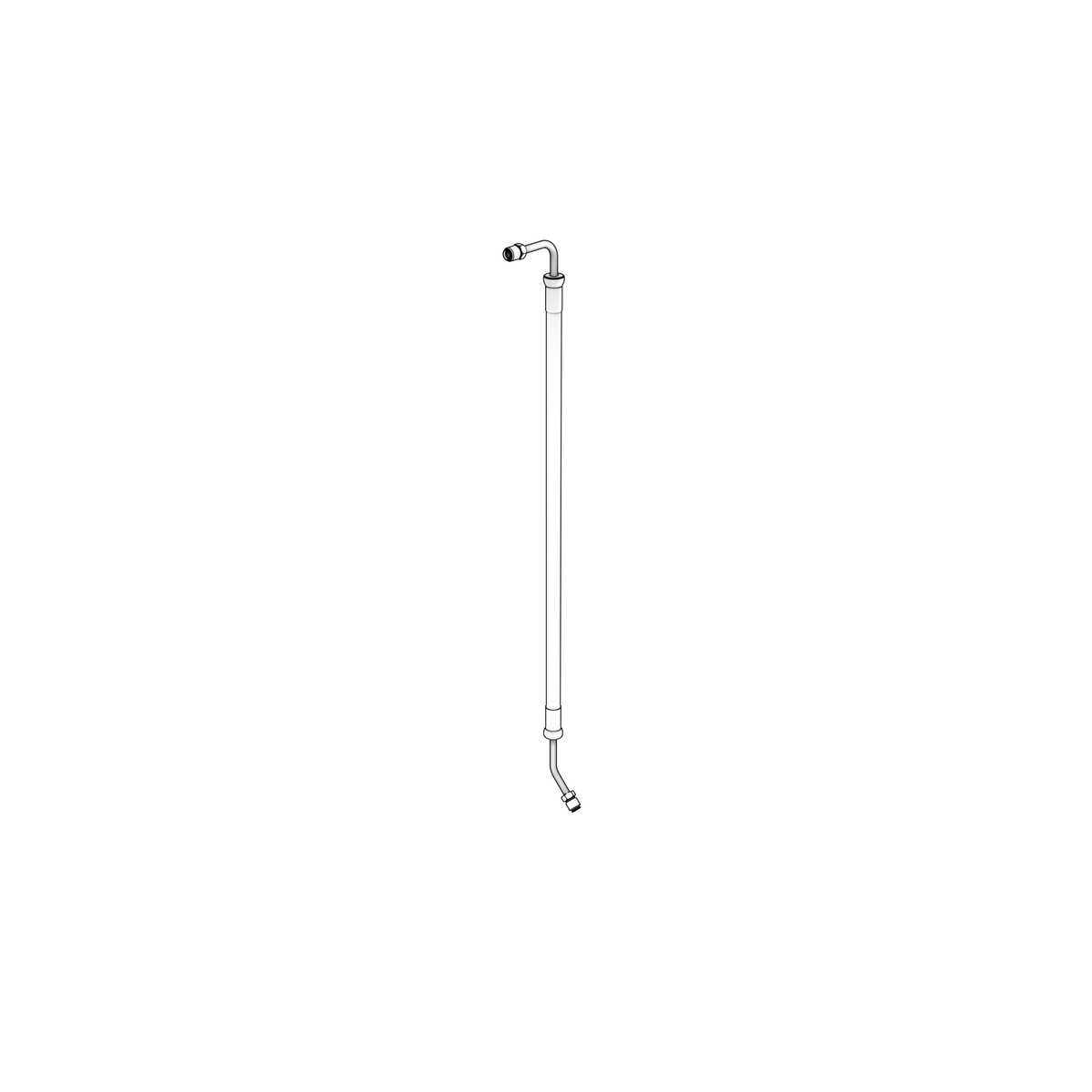

  • 21453313 Hose | Genuine Volvo Penta Part - photo 2 of 2
1 2

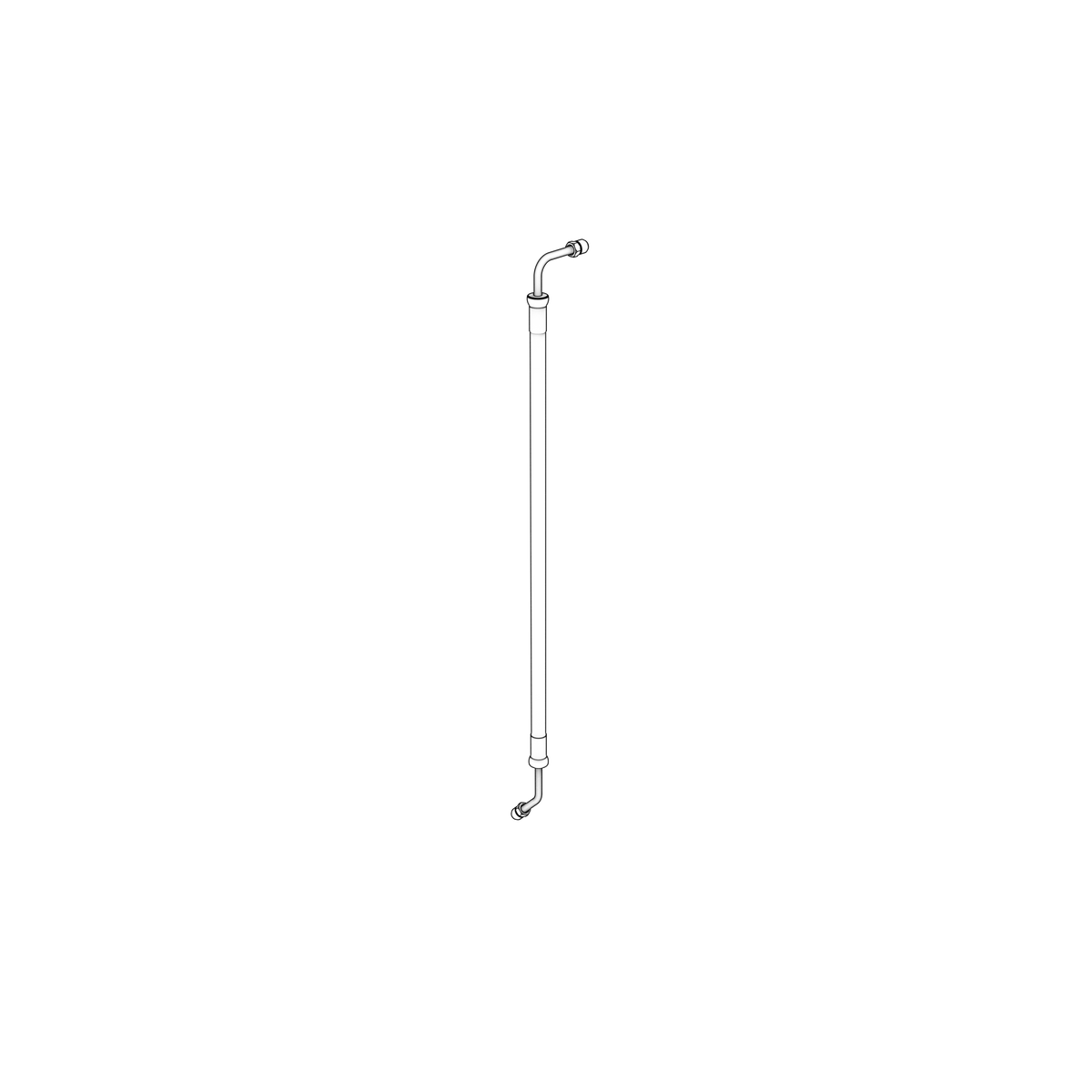

21453313 Hose | Genuine Volvo Penta Part

21453313 Hose | Genuine Volvo Penta Part

$362.00 AUD
$362.00 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

A formed hydraulic steering hose used in selected Volvo Penta DPH and DPR electronic joystick steering systems. It is separately routed from hose 21453311.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D
  • HP Range: 150-400 HP

⚙️ Key Features

  • Genuine Volvo Penta hydraulic steering hose
  • Designed for joystick and electronic steering
  • Factory-crimped pressure fittings
  • Correct routing for its assigned circuit position
  • Separately specified from hose 21453311
  • Engine type: Volvo Penta electronic sterndrive steering

🔌 Function

Carries hydraulic steering fluid between the steering control unit and the assigned steering-system component.

⚠️ Common Signs of Failure

  • Joystick steering becomes slow or uneven
  • Hose chafing or cracking
  • Air enters the steering system
  • Steering fault or loss of pressure

🛠️ Service Notes

  • Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
  • Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
  • Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
  • Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
  • Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 21453313 → Supersedes 21199262

OEM / Related Numbers

  • 21453311 - related steering hose
  • 21453315 and 21453317 - additional steering hoses
  • 21453319 - pressure hose
  • 21453321 - return hose
  • 21453160 - steering control-unit bracket
  • 21469067 - steering control unit

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
