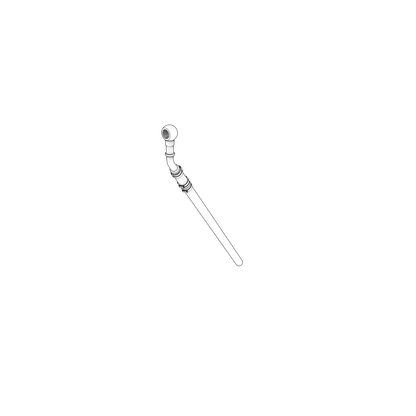

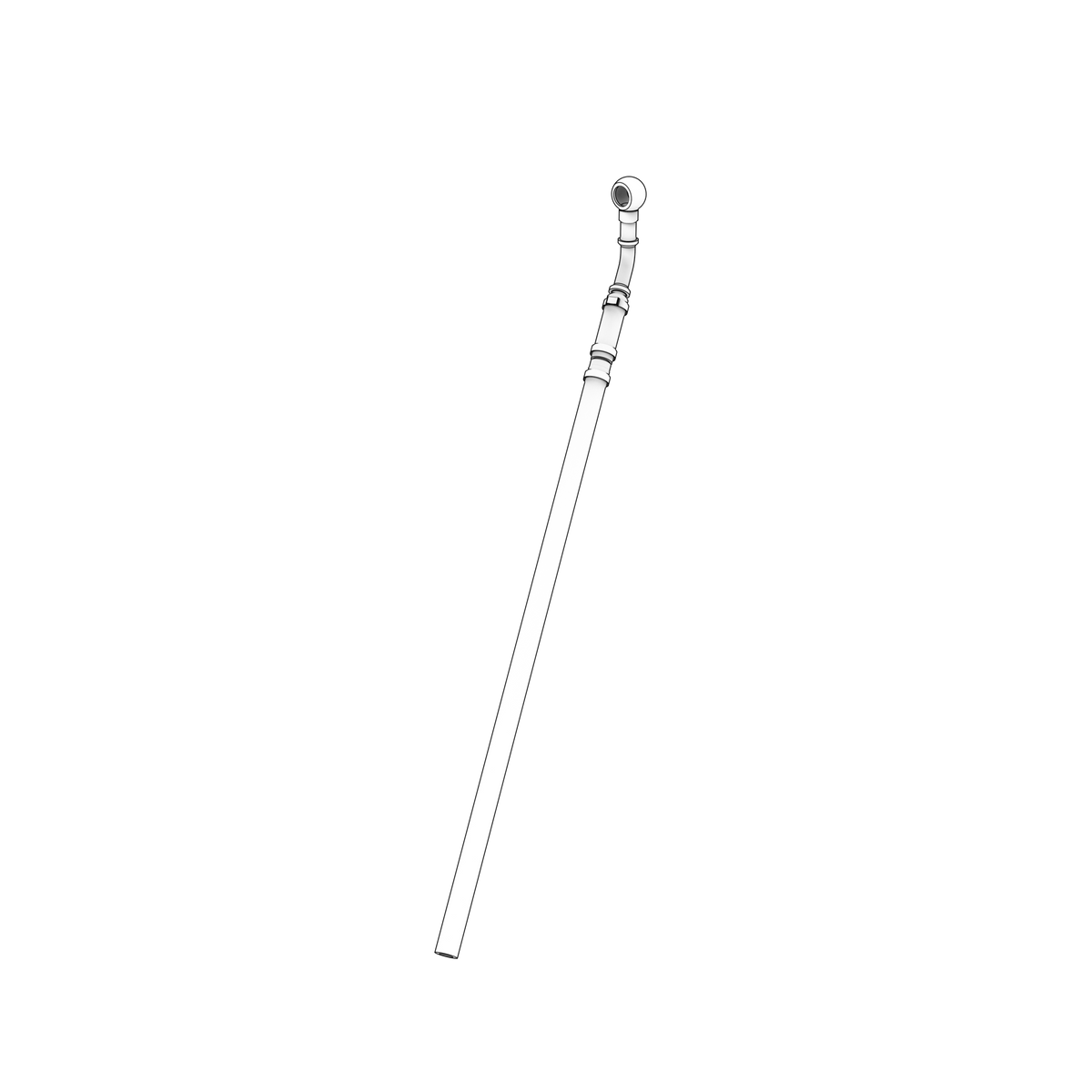

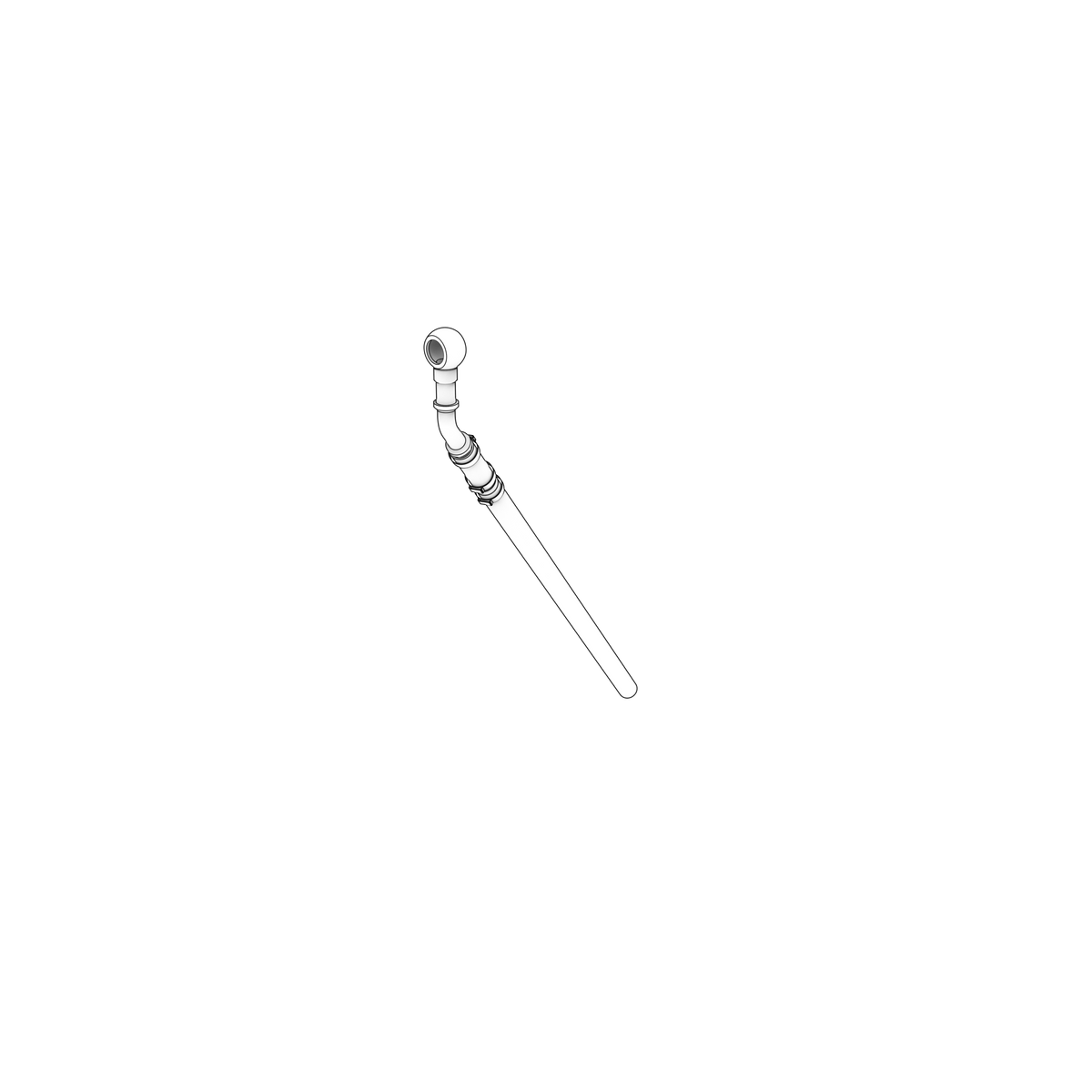

21461603 Hose Assembly | Genuine Volvo Penta Part

🔧 Product Description

A formed hose assembly used in the crankcase-breather and oil-separation system of Volvo Penta D3 marine diesel engines.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Oil-vapour-resistant construction
• Correct D3 crankcase-ventilation routing
• Replaces earlier hose assembly 21394438
• Connects the oil trap and ventilation components
• Factory-specified hose shape and end connections

🔌 Function

The hose carries crankcase vapour and separated oil between the engine and oil-trap assembly.

⚠️ Common Signs of Failure

• Oil mist in the engine compartment
• Cracked or hardened hose
• Increased crankcase pressure
• Hose restriction
• Excessive oil residue around connections

🛠️ Service Notes

• Fit the assembly along its original run so the moulded bends and fixed ends sit naturally; forcing a hose to twist or bend tightly to reach it kinks the wall and shortens its life
• Push each end fully home over the stub so the clip lands behind the bead or in its groove, and fit new clips rather than reusing tired or distorted ones
• Tighten clips evenly and only enough to seal — over-tightening cuts into the hose wall and starts the next leak
• Support the assembly with its original clips and stand-offs, clear of the exhaust, belts and sharp edges, and check nothing rubs when the engine moves on its mounts
• Bring the engine up to temperature, then recheck the joints and clip tightness once the hose has been hot and pressurised

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21461603 → Supersedes 21394438

OEM / Related Numbers

• 21394438 earlier number superseded by this part
• 21690243 - Oil trap
• 21368879 - Insert
• 21353287 - Brackets
• 21560971 - Brackets
• 21353366 - Related hoses
• 949995 - Related hoses
• 11998 - Gasket
• 26013 - Hollow screw
• 961664 - Clamps
• 952631 - Clamps

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
