21484383 Sensor | Genuine Volvo Penta Part

🔧 Product Description

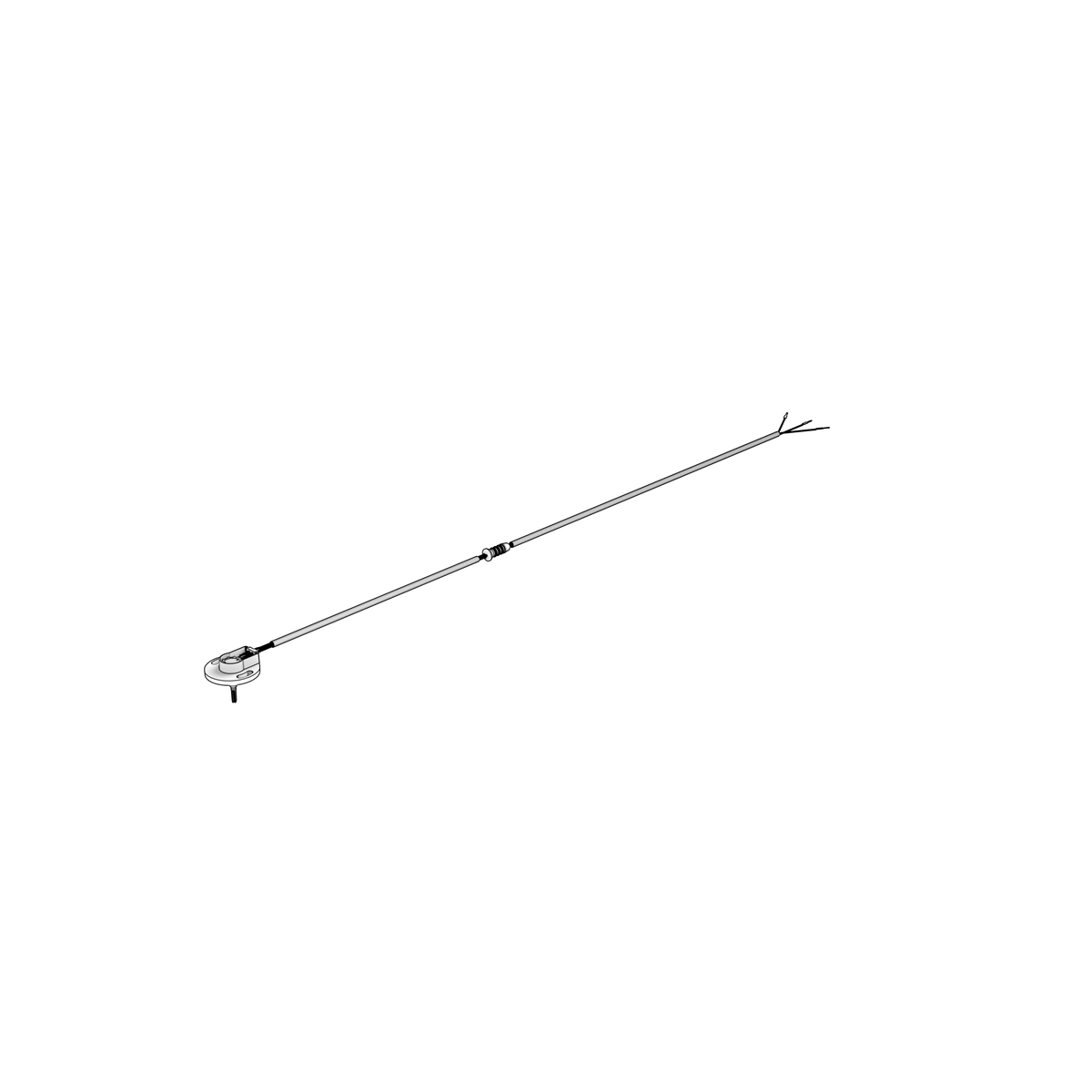

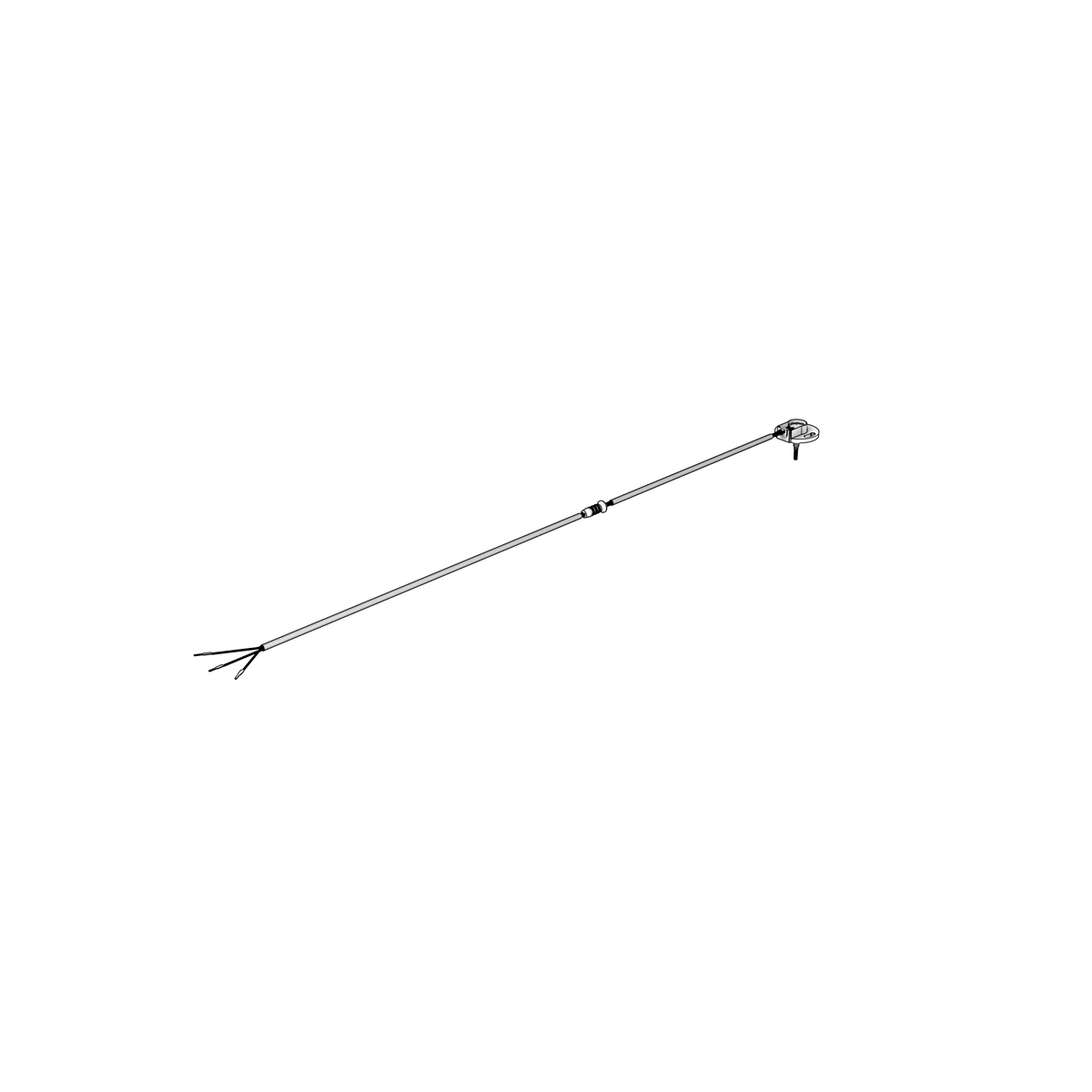

A three-wire sender used to report sterndrive trim and tilt position to the helm instrument or electronic control system.

🚤 Compatibility

• Engine Family: D, V, TSK
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Three-wire marine sensor
• Mechanical drive-position input
• Sealed electrical lead
• Replaces earlier sensor 3841840
• Compatible with the designated SX and DPS transom-shield assemblies

🔌 Function

The sensor converts drive trim angle into an electrical signal used by the trim gauge and control system.

⚠️ Common Signs of Failure

• Incorrect or unstable trim indication
• Gauge fixed at one position
• Trim-limit or EVC fault
• Damaged cable where it passes through the transom shield
• Corroded connector
• Dead spots through the trim range

🛠️ Service Notes

• Note how the sensor sits and how its lead is routed before removing it, and support the harness so refitting does not leave the cable strained or rubbing
• Turn the sensor with a spanner on its hex only — never lever or twist it by the connector body or the wiring, which breaks the internal joint even when the sensor looks undamaged
• Renew the O-ring or sealing washer where one is fitted, and do not add thread sealant unless the manual for your engine specifies it; sealant on the threads can break the earth path of a sensor that earths through its body
• Tighten to the figure in the workshop manual for your engine — overtightening distorts the housing and shifts or destroys the sensing element
• Make sure the connector is clean, dry and fully latched home and check the pins for corrosion and spread — a poor connector accounts for a great many faults blamed on the sensor — then run the engine and confirm the reading or warning lamp behaves sensibly before returning the boat to service

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21484383 → Supersedes 3841840

OEM / Related Numbers

• 3841840 earlier number superseded by this part

Aftermarket / Verified Equivalents

• RECMAR REC21484383

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-MF, 8.1OSi-J, 8.1OSi-JF, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S
• Volvo Penta V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta TSK-A-AC-52-NPT, TSK SX-A, TSK SX-AAC, TSK SX-AACLT32, TSK SX-AACLT42, TSK SX-ALT32, TSK SX-ALT42, TSK SX-OXI-AACL, TSK SX-OXI-ACC, TSK SX-OXI-ACCL, TSK A-32, TSK A-32-NPT, TSK A-42, TSK A-52, TSK A-52-NPT, TSK A-AC-32, TSK A-AC-42, TSK A-AC-52, TSK A-OX-32, TSK A-OX-42, TSK A-OX-52, TSK-A-42-NPT, TSK-A-AC-32-NPT, TSK-A-AC-42-NPT
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
