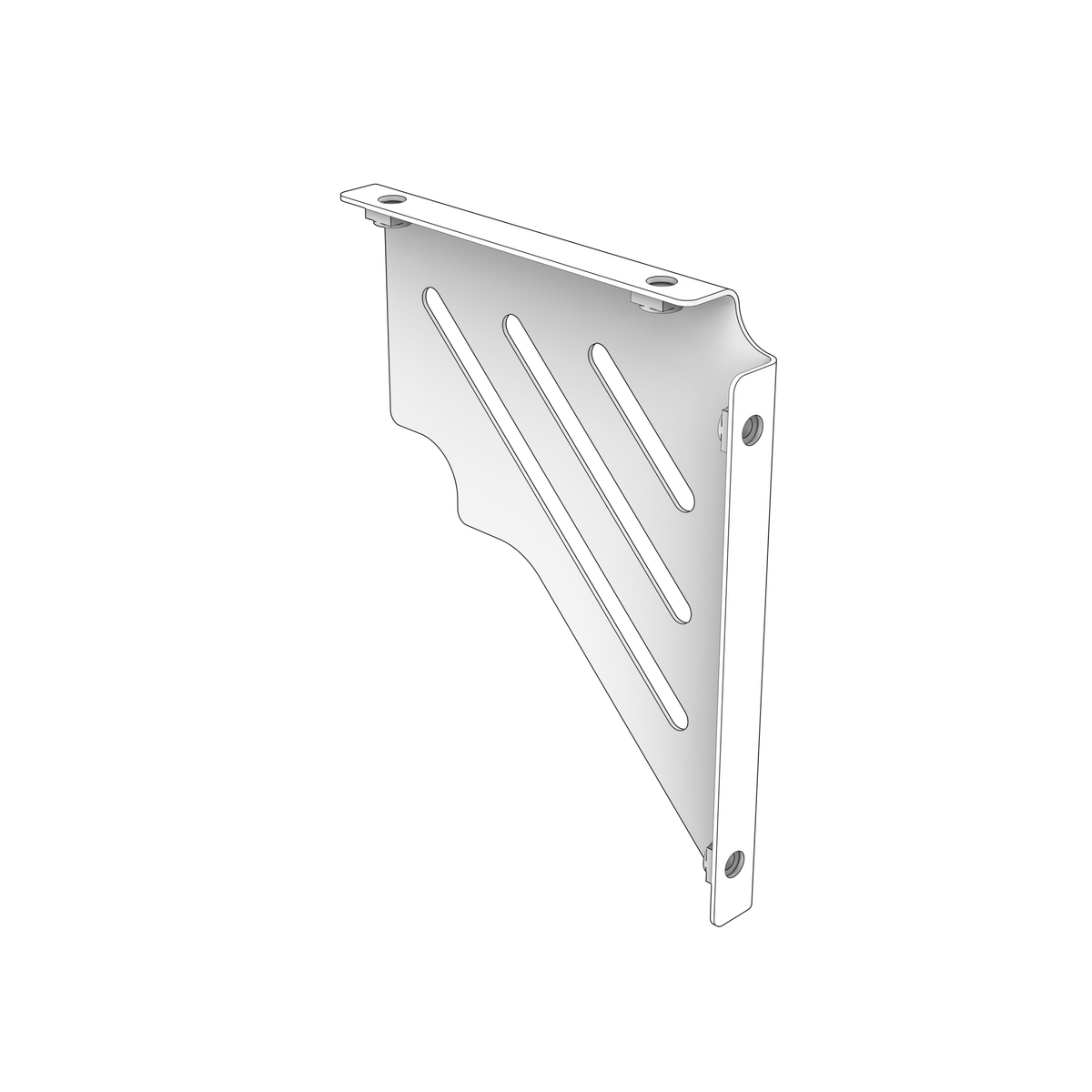

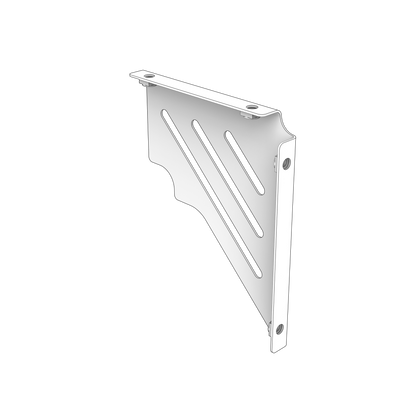

21496784 Cap | Genuine Volvo Penta Part

🔧 Product Description

Protective cap used in selected Volvo Penta D4 and IPS connecting-shaft/housing installations. The cap closes the specified end or access point in the shaft-and-housing assembly, providing a finished protective cover and helping shield the underlying hardware from dirt, moisture and accidental contact. It is catalogued as an individual component rather than a complete shaft-housing kit.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta transmission/connecting-shaft cap
• Used in IPS connecting-shaft and housing arrangements
• Protects the corresponding housing opening and installed hardware
• Supplied as one individual cap
• Correct moulded/form profile for the original installation
• Engine type: 3.7-litre inline-four turbocharged marine diesel

🔌 Function

Closes and protects the designated opening in the connecting-shaft or housing assembly and prevents contamination or accidental contact with the underlying mounting hardware.

⚠️ Common Signs of Failure

• Cap missing from the installation
• Cracked or distorted housing edge
• Loose fit caused by damaged retaining features
• Corrosion or contamination entering the opening
• Cosmetic or impact damage

🛠️ Service Notes

• Clean and inspect the seating face on the housing as well as the cap — most leaks past a cap are the seat or the seal rather than the cap body
• Renew any separate O-ring or gasket that goes with the cap, and lubricate rubber seals lightly with clean oil or grease so they slide home instead of rolling or tearing
• Do not over-tighten a cap into a plastic or aluminium housing; it seals on its gasket or O-ring, not on force, and stripped threads mean a much bigger repair
• Where a cap blanks a port during a repair, keep it fitted right up to the moment of assembly so nothing enters the opening
• Check the cap is fully home and that any retaining clip, lanyard or locking tab is secure before returning the boat to service

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21496784

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-370D-A, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
