21499476 Valve | Genuine Volvo Penta Part

🔧 Product Description

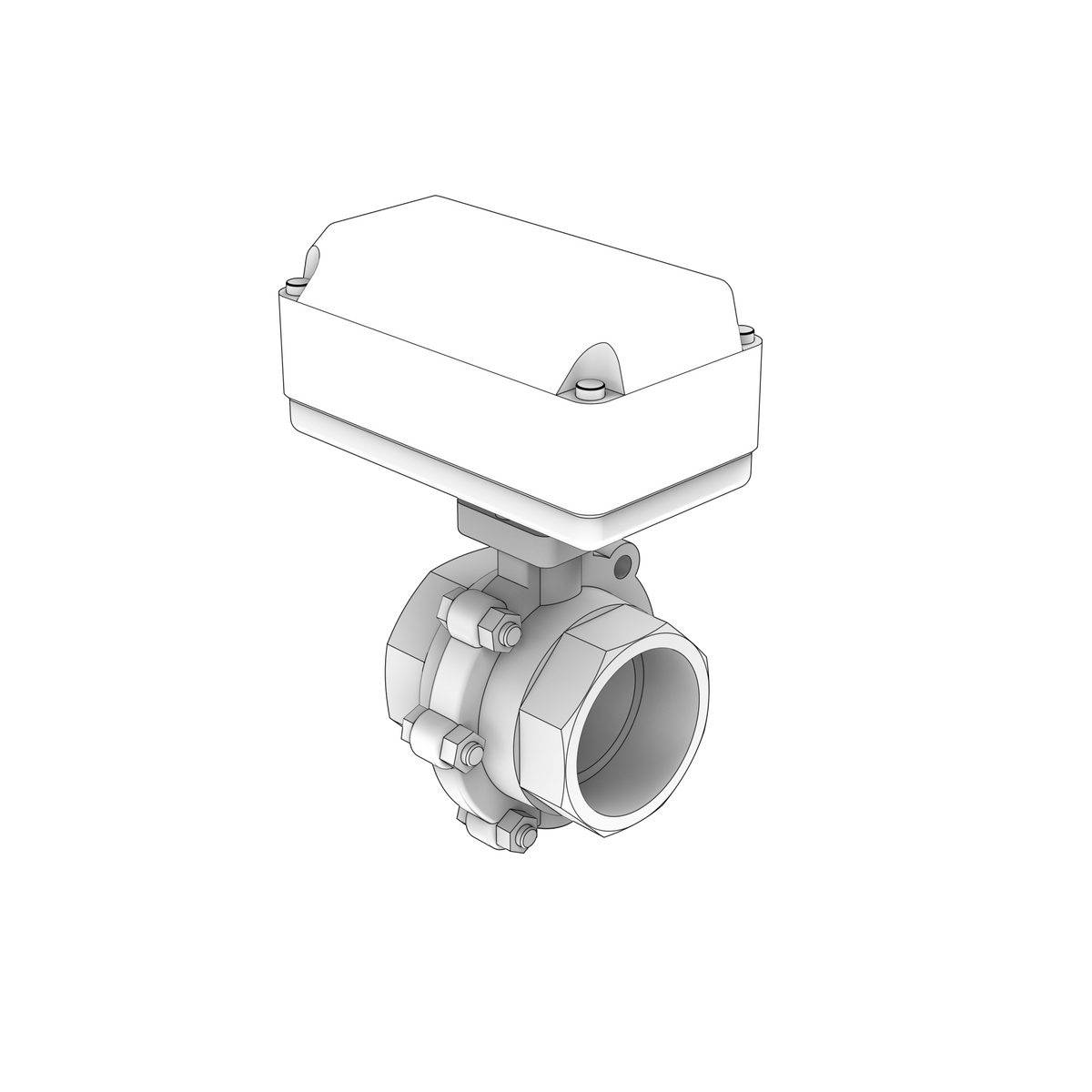

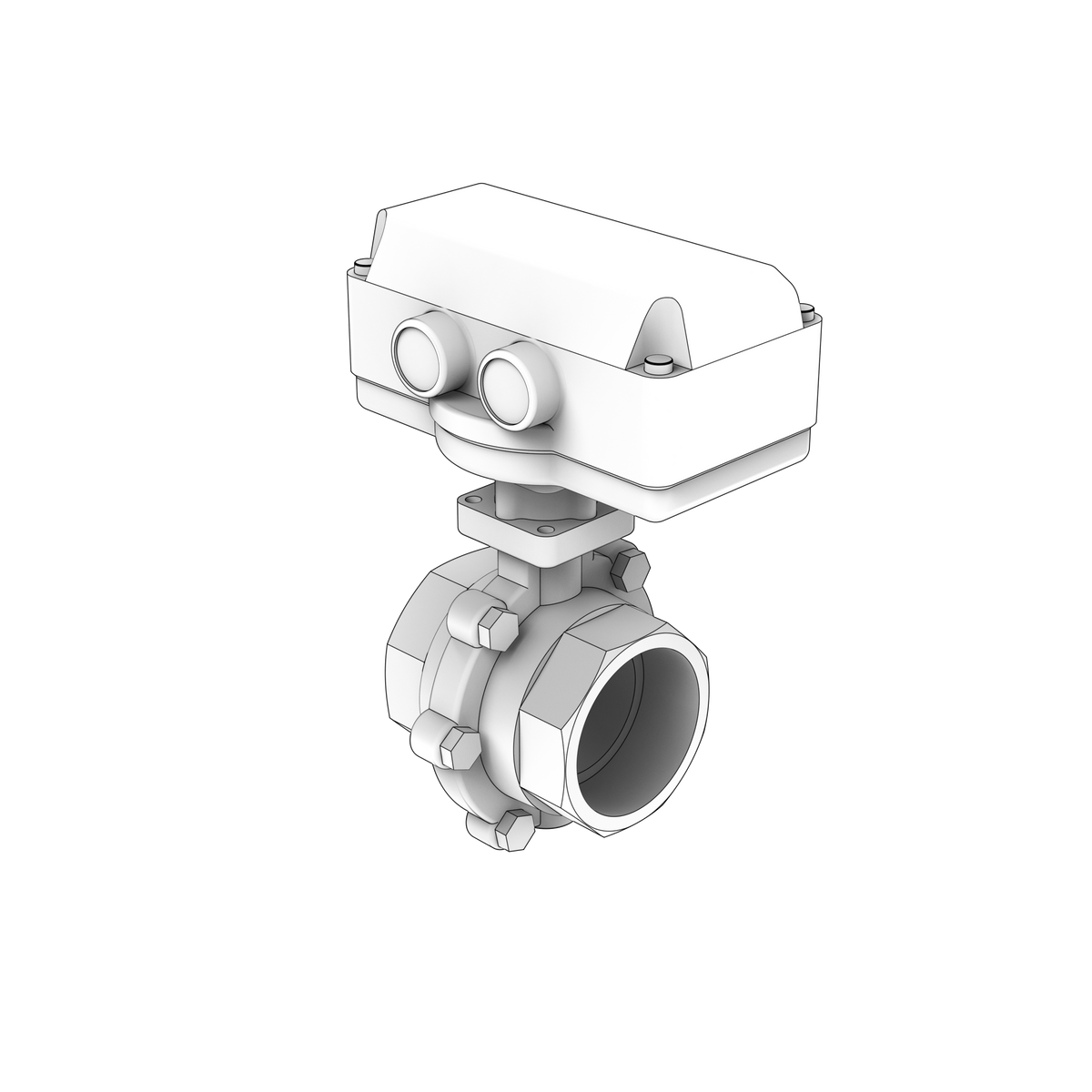

OEM valve used in Volvo Penta Clear Wake Exhaust System (CWES) installations on compatible IPS-powered vessels. It supersedes earlier valve 21495547 and controls the designed exhaust-system flow or drainage function within the CWES assembly. The valve is also associated with later exhaust-valve service kit 24210710, but part number 21499476 identifies the individual valve rather than the complete kit.

🚤 Compatibility

• Engine Family: D, IPS

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta CWES exhaust-system valve
• Supersedes earlier OEM valve 21495547
• Used on compatible IPS marine propulsion installations
• Individual valve component, not complete kit 24210710
• Maintains the intended Clear Wake exhaust-system operation
• Engine type: Turbocharged inline-six Volvo Penta marine diesel with IPS propulsion

🔌 Function

Controls the specified exhaust-flow or drainage path within the Clear Wake Exhaust System, supporting proper exhaust routing and reducing soot or smoke discharge around the vessel.

⚠️ Common Signs of Failure

• Exhaust or fluid leakage around the valve
• Heavy soot deposits at the valve or nearby joints
• CWES warning or system fault
• Valve sticking because of corrosion or carbon build-up
• Abnormal exhaust noise or poor CWES operation
• Damaged actuator or valve body

🛠️ Service Notes

• Work clean — a valve is a precision component, and dirt or swarf carried in on the sealing faces is the commonest reason a new one fails early
• Fit new sealing rings, gaskets or washers wherever the original used them rather than reusing the old ones, and lubricate them lightly so they seat without rolling or nipping
• Check the seat, bore or housing the valve fits into for corrosion, scoring or distortion; a valve only seals as well as the face it beds on
• Tighten fixings and threaded connections to the figures and in the order given in the workshop manual for your engine — a valve body is easily distorted by overtightening
• After fitting, bleed or refill the system as required, then run the engine and check the valve for leaks and for correct operation before the boat is used

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21499476 → Supersedes 21495547

OEM / Related Numbers

• 21495547 earlier number superseded by this part

Other-Brand OEM Numbers

• VOE21499476
• VOE21495547

Aftermarket / Verified Equivalents

• Exhaust valve service kit: 24210710

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta IPS15-B, IPS15-A
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS20-D
• Volvo Penta IPS30-D
