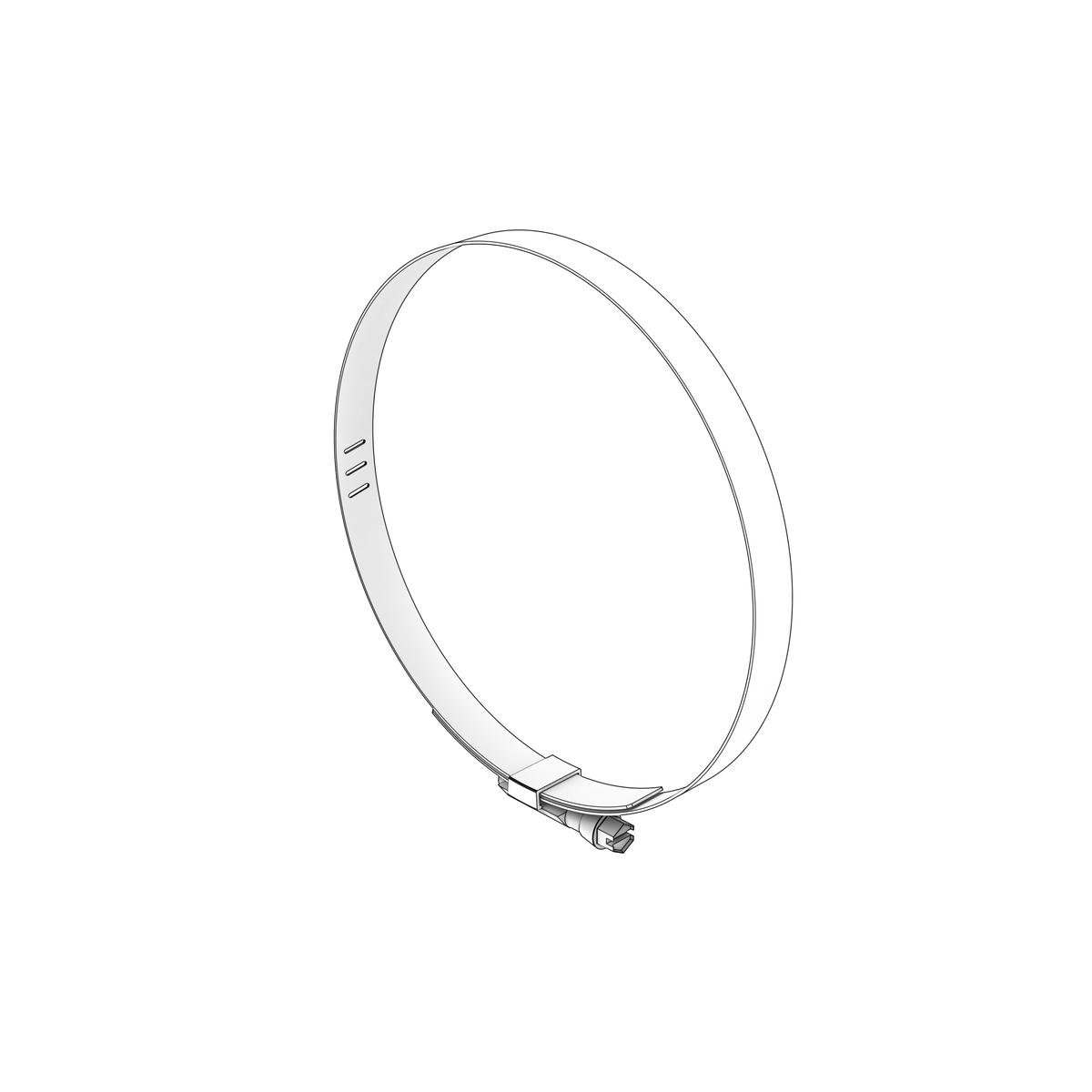

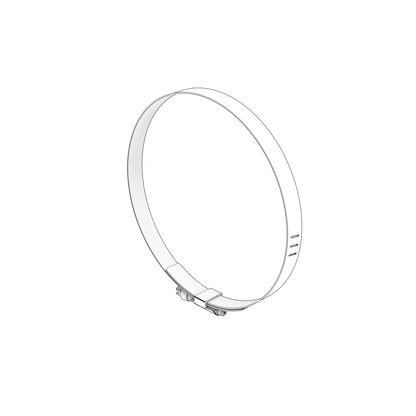

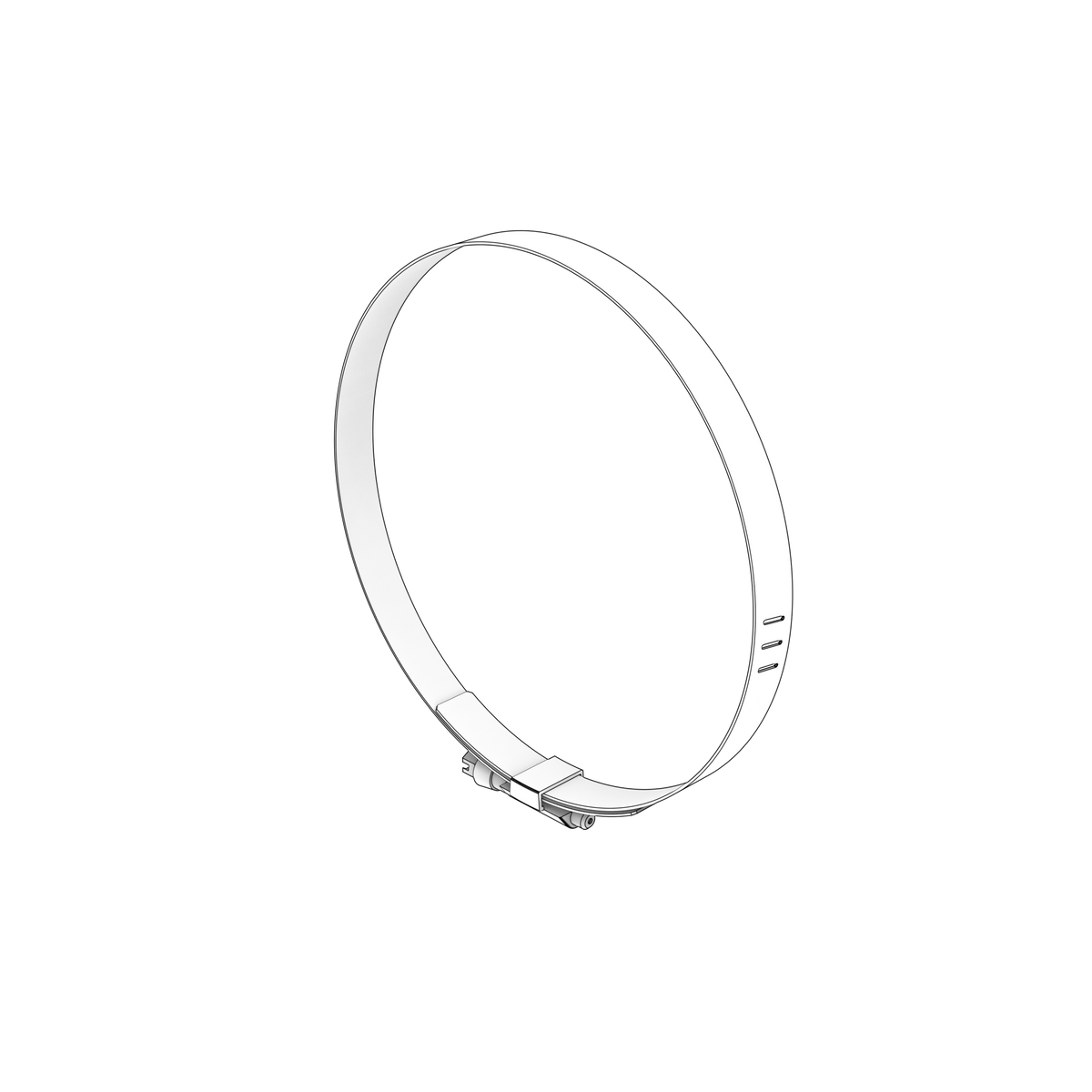

21501238 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta hose clamp used to secure the specified fuel, coolant, air or ventilation hose to its fitting. The clamp diameter and material must match the original application.

🚤 Compatibility

• Engine Family: V
• HP Range: 225-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta fastening clamp
• Provides even hose retention
• Designed for marine or industrial engine vibration
• Corrosion-resistant construction
• Use only where the hose and fitting diameter match
• Engine type: Volvo Penta marine or industrial engine
• Quantity varies by assembly, most commonly two

🔌 Function

Secures the hose to its connection and prevents leakage or hose movement.

⚠️ Common Signs of Failure

• Fluid or air leakage at the connection
• Clamp corrosion
• Damaged screw or band
• Hose slips from the fitting
• Clamp cuts or deforms the hose

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A
• Volvo Penta 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R
