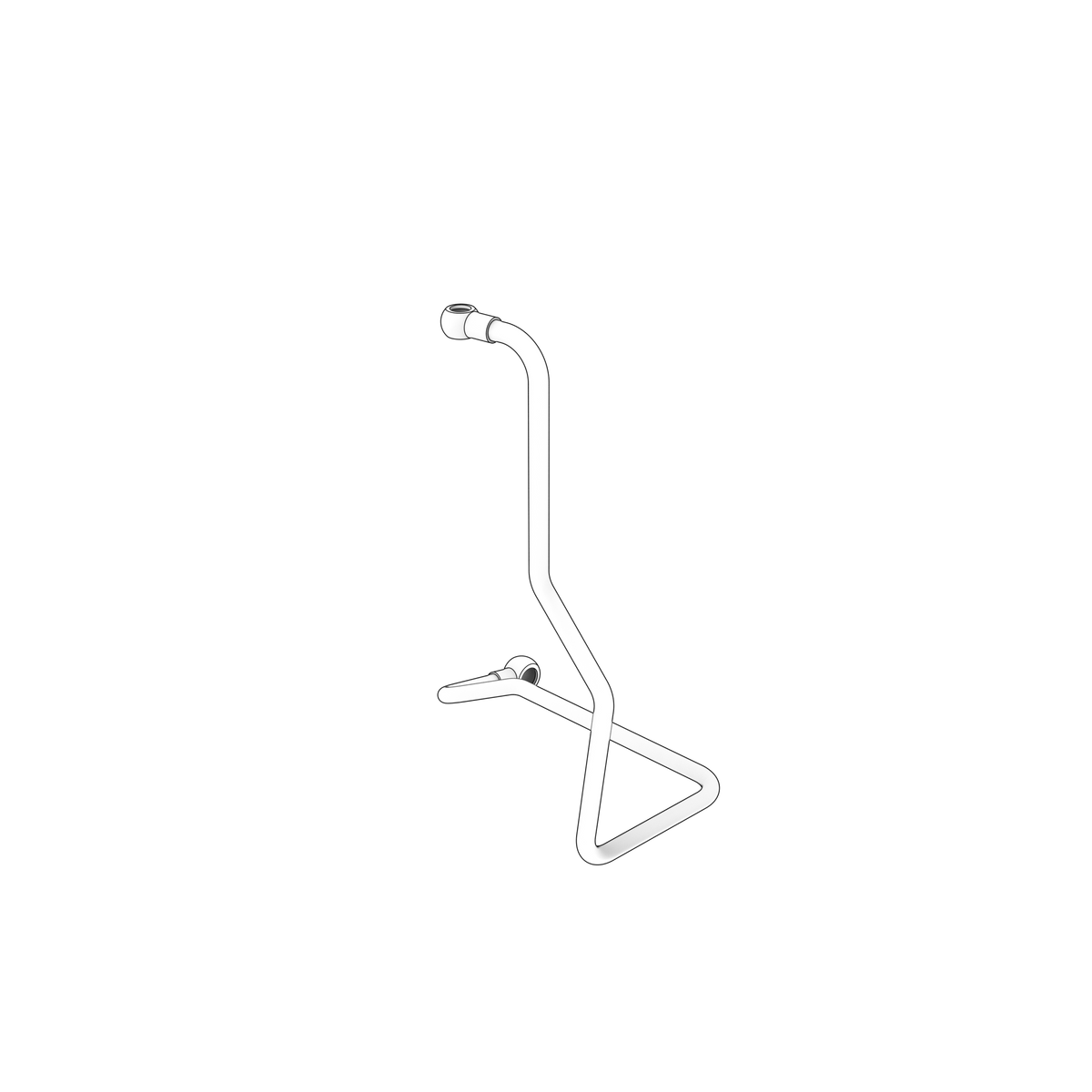

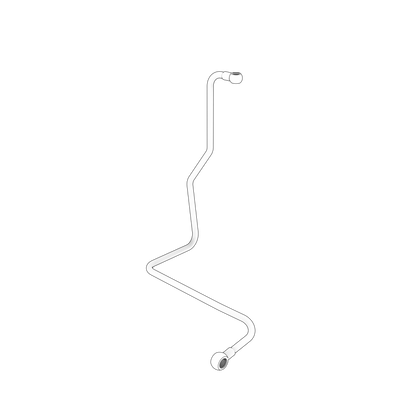

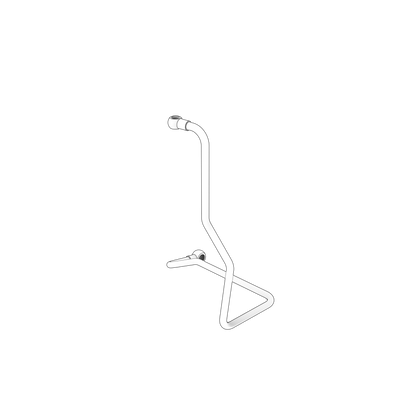

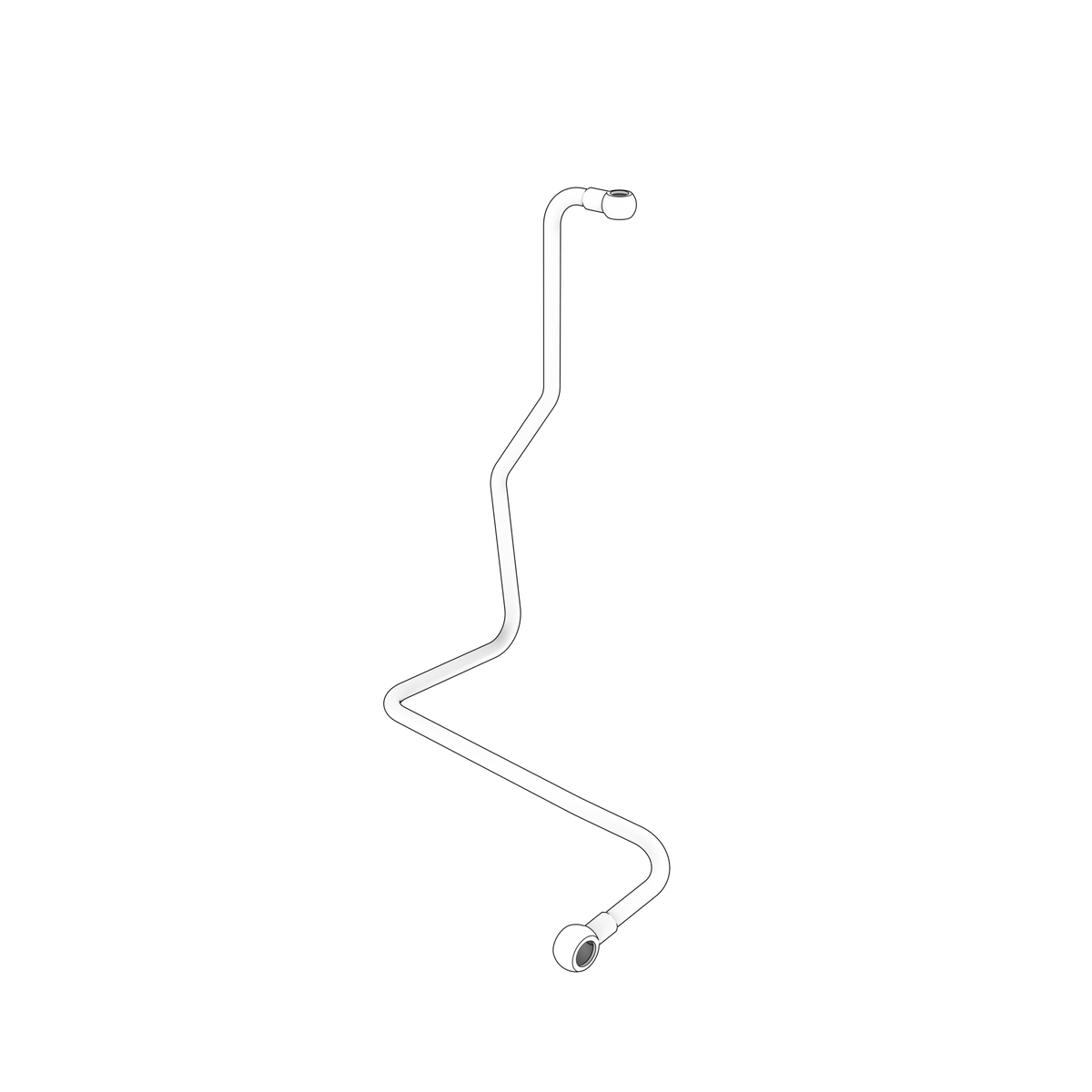

21506563 Oil Pressure Pipe | Genuine Volvo Penta Part

🔧 Product Description

A rigid oil-pressure feed pipe used to supply lubricating oil to the turbocharger on selected Volvo Penta D3 marine engines.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta turbocharger oil-feed pipe
• Designed for pressurised hot engine oil
• Correct factory bends and union positions
• Maintains continuous turbocharger lubrication
• Must be installed without twisting or reshaping
• Engine type: D3 five-cylinder turbocharged marine diesel

🔌 Function

Carries pressurised engine oil from the lubrication system to the turbocharger bearing housing.

⚠️ Common Signs of Failure

• Oil leakage at a union
• Low or interrupted turbocharger oil supply
• Turbocharger bearing noise
• Pipe cracking from vibration
• Turbocharger failure or excessive shaft play

🛠️ Service Notes

• Keep everything clean and cap the openings while the pipe is off — debris in an oil pressure line reaches a bearing surface
• Fit new sealing washers to banjo unions and new O-rings where used; a fresh annealed washer seals, a used one usually does not
• Start both unions by hand and let the pipe find its natural line before tightening; do not spring or bend it to reach, as a strained pipe cracks at the union
• Refit the original clips and brackets so the pipe cannot vibrate against anything, and tighten unions to the manual figure — overtightening a banjo bolt crushes the washer and the fitting and guarantees a leak
• Run the engine after fitting, check the unions for weeping and the oil pressure for a normal reading, then recheck when hot

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21506563 → Supersedes 21098182

OEM / Related Numbers

• 21098182 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
