21511183 Tachometer Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta EVC tachometer, 110 mm, with a black dial reading 0 to 6000 rpm, weighing 0.256 kg and listed for 88 applications. Engine hours and alarm symbols appear in the LCD display, and it is listed for EVC C to EVC-E and EVC2 systems. Anti-fogging membrane, full backlighting and a plug-and-play serial connection come with the EVC instrument range; the front ring does not.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP
• Year Range: approximately 2003 onward

Full model list at the end of this description.

⚙️ Key Features

• 110 mm instrument diameter
• Black dial, 0-6000 rpm scale
• Engine hours and alarm symbols in the LCD display
• For EVC C-E and EVC2
• 0.256 kg
• Anti-fogging membrane, full backlighting and serial connection
• Gauge diameter: Ø 110 mm
• Gauge family: Tachometers
• Gauge range: EVC gauge range
• Listed for EVC C-E, EVC2 systems
• Anti-fogging membrane and full backlighting
• Plug-and-play serial connection - adding instruments is easy
• Diameter: 110 mm
• Dial colour: Black
• Scale: 0-6000 rpm
• Evc generation: EVC C-E, EVC2
• Fits: EVC C-E, EVC2 installations

📋 Kit Contents

• Tachometer assembly - Volvo Penta 21511183
• Kit-supplied EVC connection cable - serviced with kit 21511183; separate cable number is not published in the indexed kit description
• Mounting nut / clamp and sealing components supplied with the tachometer assembly

🔌 Function

The instrument receives engine-speed, hour and alarm data from the EVC network and displays it at the helm.

⚠️ Common Signs of Failure

• No rpm display or an intermittent reading
• Hour display or alarm symbols fail
• Moisture or fogging inside the lens
• Backlighting failure
• Network or connector faults

🛠️ Service Notes

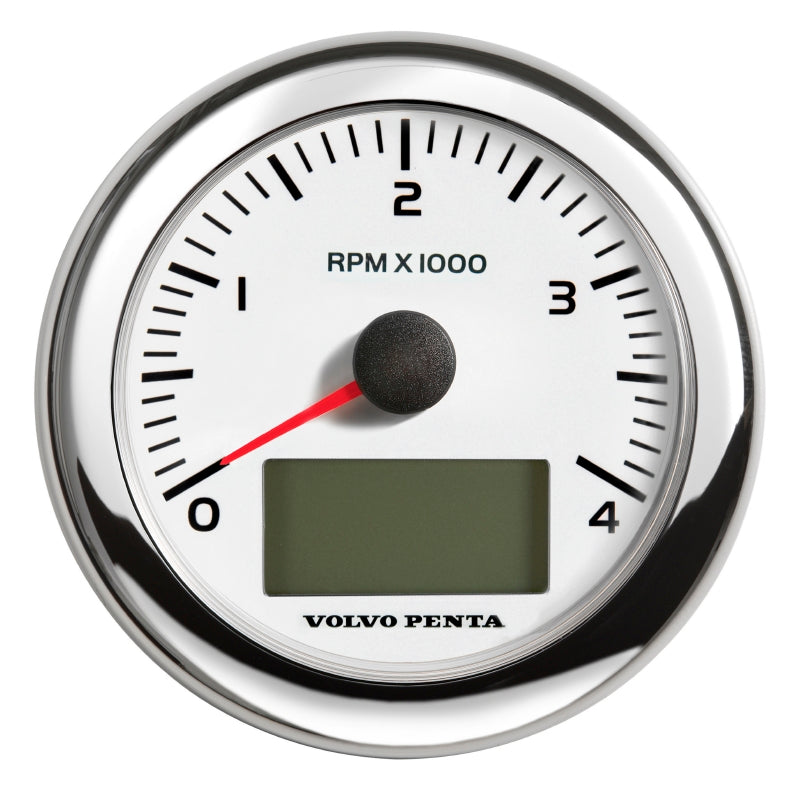

• The white 0-6000 rpm version is 21511180; the 0-4000 rpm pair in the same 110 mm size is 21511178 black and 21511176 white, and those two are additionally listed for D1/D2 with MDI
• Order by rpm scale and dial colour — the four 110 mm tachometers here sit within 25 grams of one another
• The front ring is not included; 3847888 is the black 110 mm kit and 3885216 the chrome
• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting
• Seven tachometers are listed and dial colour, rpm scale, size and EVC generation are all that separate them: 21511178 is black, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511176 is white, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511180 is white, 0-6000 rpm, 110 mm, EVC C-E, EVC2; 21628160 is black, 0-4000 rpm, 85 mm, EVC C-E, EVC2; 21628159 is white, 0-4000 rpm, 85 mm, EVC C-E, EVC2; 21628157 is white, 0-6000 rpm, 85 mm, EVC MC, EVC C

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21511183 → Supersedes 21234545 → Supersedes 3847841

OEM / Related Numbers

• 21234545 earlier number superseded by this part
• 3847841 earlier number superseded by this part
• 3884843 - related EVC instrument wiring harness

Other-Brand OEM Numbers

• VDO / Veratron 110mm electronic tachometers - conversion alternatives only

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-P, 8.1GXiE-P, 8.1IPSCE-P, 8.1IPSCE-Q, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiCE-P, 5.7GXiE-P, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-P, 5.7GiCE-300-R, 5.0GiCE-225-S, 5.0GXiCE-P, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-P, 4.3GXiE-225-R, 4.3GXiE-P, 4.3GXiE-Q
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J
