21511584 Shim | Genuine Volvo Penta Part

21511584 Shim | Genuine Volvo Penta Part

$12.50 AUD
$12.50 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

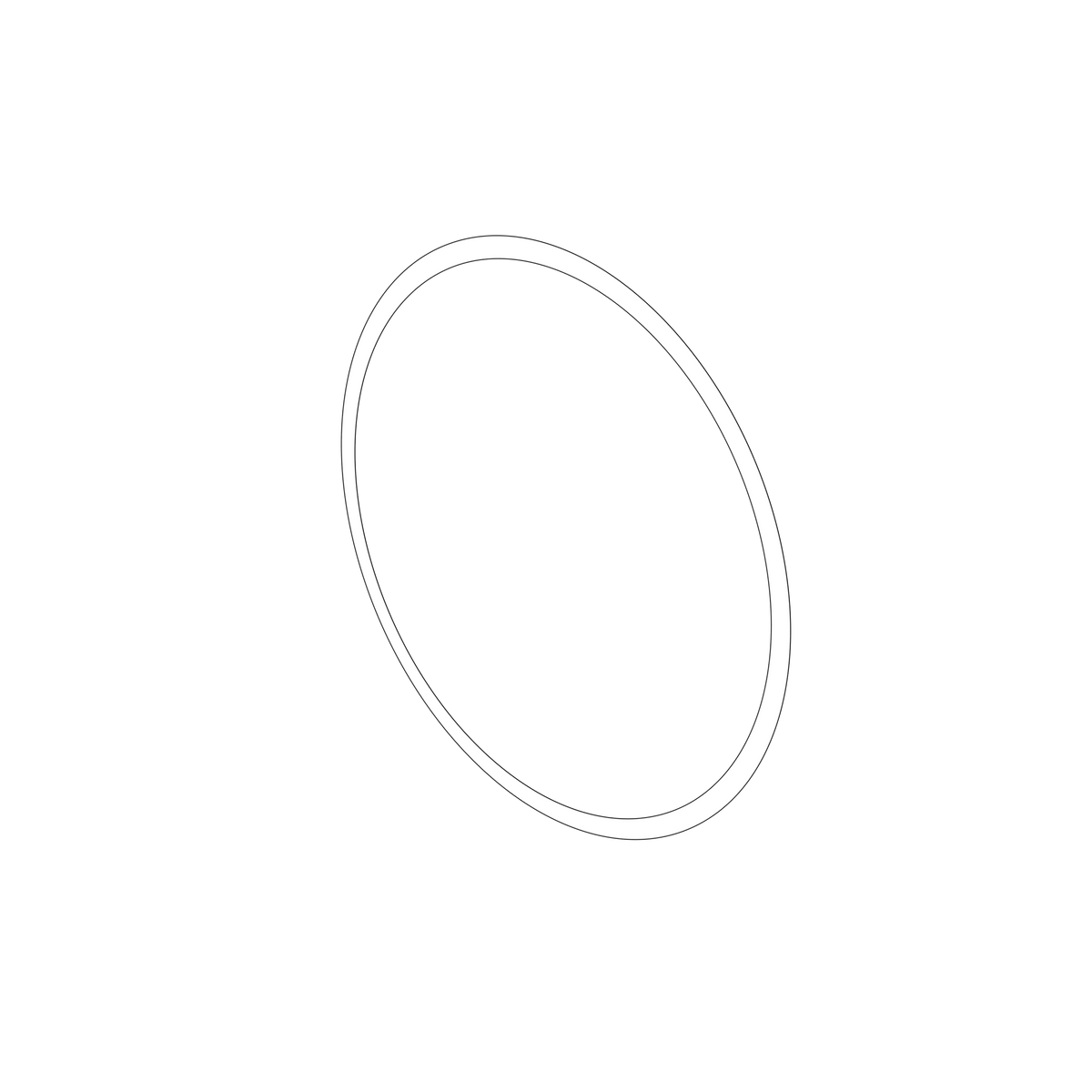

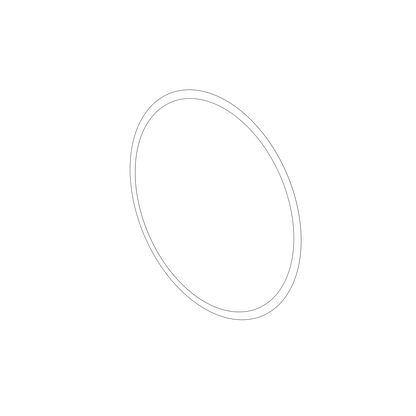

A 0.15mm selective shim used to set bearing preload and axial gear position in the upper vertical-shaft assembly of Volvo Penta DPH-D1 sterndrives.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta DPH-E
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D
  • HP Range: 150-400 HP

⚙️ Key Features

  • Thickness: 0.15mm
  • Selective drive-setup component
  • Controls bearing preload and gear position
  • Precision-ground steel shim
  • Must be selected from measured assembly clearance
  • TH=0.15mm (Volvo assembly listing)

🔌 Function

The shim adjusts the installed height of the bearing and gear assembly so shaft end play and gear mesh meet specification.

⚠️ Common Signs of Failure

  • Excessive vertical-shaft end play
  • Gear whine or bearing noise
  • Incorrect bearing preload
  • Scoring or compression of the shim
  • Drive overheating after incorrect setup

🛠️ Service Notes

  • Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
  • Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
  • Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
  • Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
  • Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 21511566 - Bearing washer
  • 181804 - Ball bearing
  • 184778 - Needle roller bearing
  • 21821906 - Gear set
  • 22050739 - Spacer tube
  • 3849006 - Sliding sleeve
  • 184654 - Needle roller bushing

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
