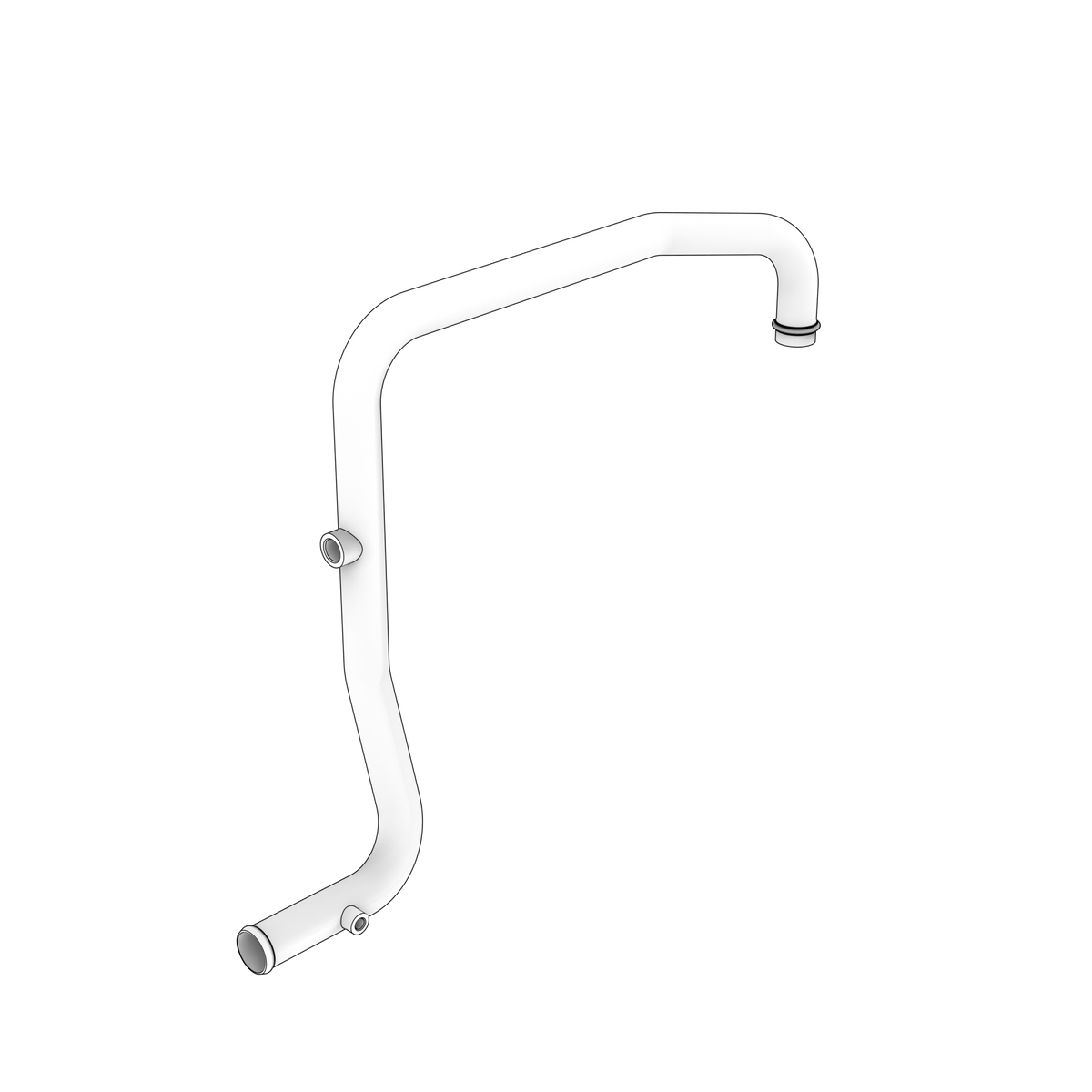

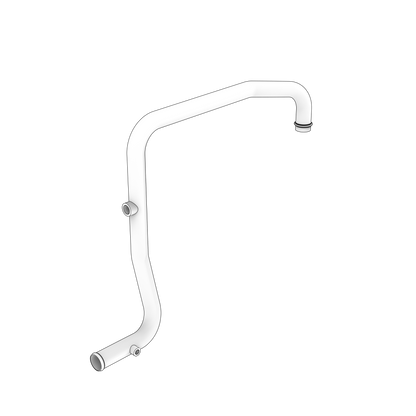

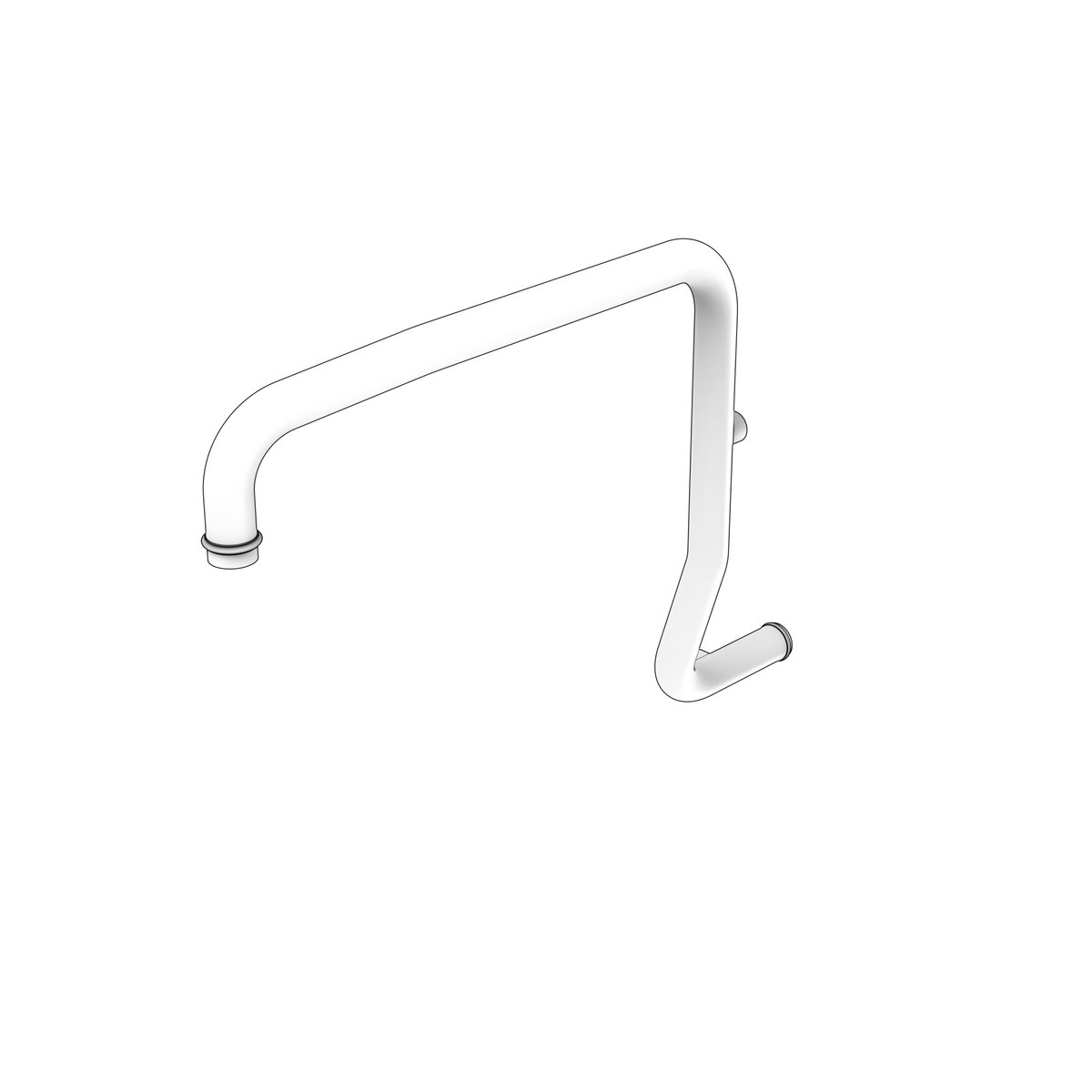

21514386 Coolant Pipe | Genuine Volvo Penta Part

🔧 Product Description

A genuine formed coolant pipe used in selected Volvo Penta D3 keel-cooling and auxiliary sea-water-pump installations. The pipe routes coolant through the specified pump and cooling circuit while maintaining the designed bend radius, support position and clearance from surrounding components.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C3-B MH
• Volvo Penta D13C1-B MH
• Volvo Penta D13B-E MG
• Volvo Penta D13B-E MG (FE)
• Volvo Penta D13B-E MH
• Volvo Penta D13B-E MH (FE)
• Volvo Penta D13B-N MH
• Volvo Penta D13B-N MH (FE)
• Volvo Penta D13C1-A MH
• Volvo Penta D13C1-B MG
• Volvo Penta D13C3-B MG
• Volvo Penta D13C1-A MG

• Engine Family: D
• HP Range: Approximately 110-220 HP
• Year Range: Approximately 2010 - 2020

⚙️ Key Features

• Genuine Volvo Penta formed coolant pipe
• Used in the specified keel-cooling / sea-water-pump arrangement
• Factory bend geometry and connection alignment
• Designed for pressurised engine-coolant service
• Direct replacement for a corroded, cracked or distorted original pipe
• Engine type: 2.4L inline five-cylinder common-rail marine diesel

🔌 Function

Routes coolant through the specified cooling circuit and maintains the correct connection geometry at the pump and adjoining hoses.

⚠️ Common Signs of Failure

• Coolant seepage at a pipe end or formed bend
• Corrosion, pitting or pinhole leakage
• Overheating caused by coolant loss or internal restriction
• Chafing or cracking from missing supports
• Hose misalignment caused by a bent pipe

🛠️ Service Notes

• Clean both flanges or spigots and check the sealing lands for pitting and corrosion; renew every O-ring, seal or gasket at the joint rather than reusing one that has taken a set
• Lubricate coolant-side O-rings with coolant or a rubber-safe lubricant — petroleum oil and grease swell and soften the rubber and end up in the coolant
• Offer the pipe up and align both ends before pulling any fastener tight, so the joints are not held together by strain from a misaligned pipe or an over-stretched hose
• Check the bore is clear of scale, sealant and debris before fitting, and inspect the pipe for internal corrosion or thinning if the old one was leaking
• Refill with the coolant type and mix specified for your engine, bleed the system through, then check the joints again with the engine hot and up to pressure

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21167147 - sea-water pump
• 1556905 - sealing ring
• 1546531 - locking brace
• 949850 - hose clamp
• 21275337 - support bracket
• 855773 - spacer
• 11998 - gasket
• 21514503 - companion coolant pipe used in the related cooling arrangement

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
