21522416 Shim | Genuine Volvo Penta Part

🔧 Product Description

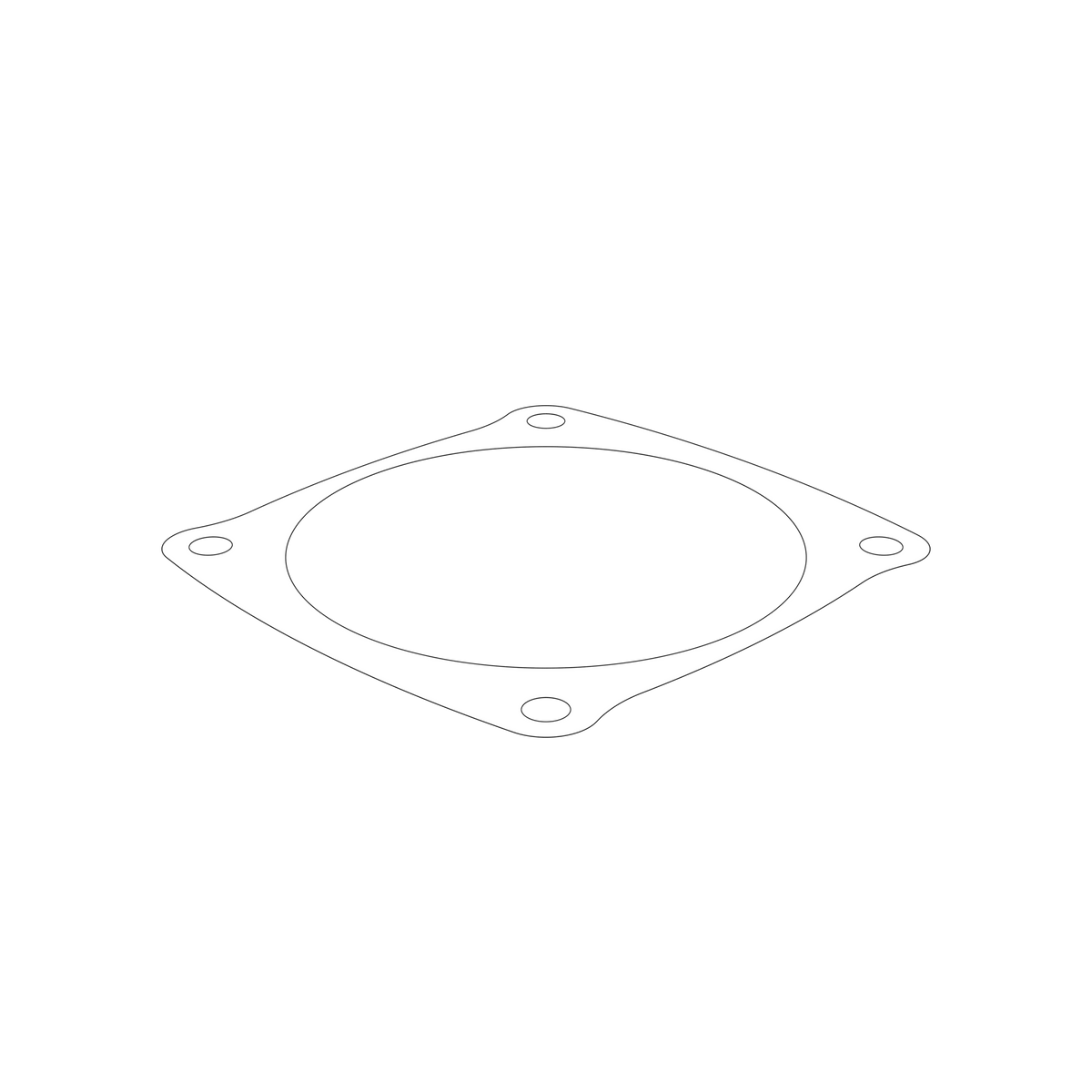

A genuine 0.10mm precision shim used in the universal-joint and bearing-carrier assembly of applicable Volvo Penta DPH and DPR sterndrives. It is selected during measurement to establish the specified bearing preload or end float; it is not a general spacer.

🚤 Compatibility

Typically suits:

• Volvo Penta DPH-D1
• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D4-260A-F
• Volvo Penta D4-300A-F
• Volvo Penta D6-300A-F
• Volvo Penta D4-225A-F
• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta D6-400A-G
• Volvo Penta D6-400A-F
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-300A-G

• Engine Family: DPH, D
• HP Range: 150-400 HP
• Year Range: Approximately 2009 - 2020 production-era applications

⚙️ Key Features

• Genuine Volvo Penta precision adjustment shim
• Nominal thickness: 0.10mm
• Used in universal-joint / bearing-carrier setup
• Supports correct bearing preload and shaft alignment
• Must be selected by measurement during assembly
• Engine type: Volvo Penta DPH / DPR sterndrive
• TH=0.10mm (Volvo assembly listing)

🔌 Function

Sets the final axial position of the bearing or shaft assembly so the specified preload or end float is achieved.

⚠️ Common Signs of Failure

• Gear or bearing whine after assembly
• Excessive shaft end play
• Bearing overheating from excessive preload
• Premature roller-bearing or seal failure
• Metal debris caused by incorrect shaft alignment

🛠️ Service Notes

• Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
• Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
• Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
• Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
• Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21522416 → Supersedes 3863316

OEM / Related Numbers

• 3863316 earlier number superseded by this part
• 3887297 - complete universal joint
• 3843136 - universal-joint spider kit
• 3860364 - retaining screw
• 3863084 - sealing ring
• 11043 - roller bearing
• 21511540 - bearing box
• 984258 - screw
• 984290, 984291, 984292, 984293 - additional adjustment shims
• 21522417 - 0.15mm shim
• 21522419 - 0.225mm shim
• 21522420 - 0.25mm shim

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
