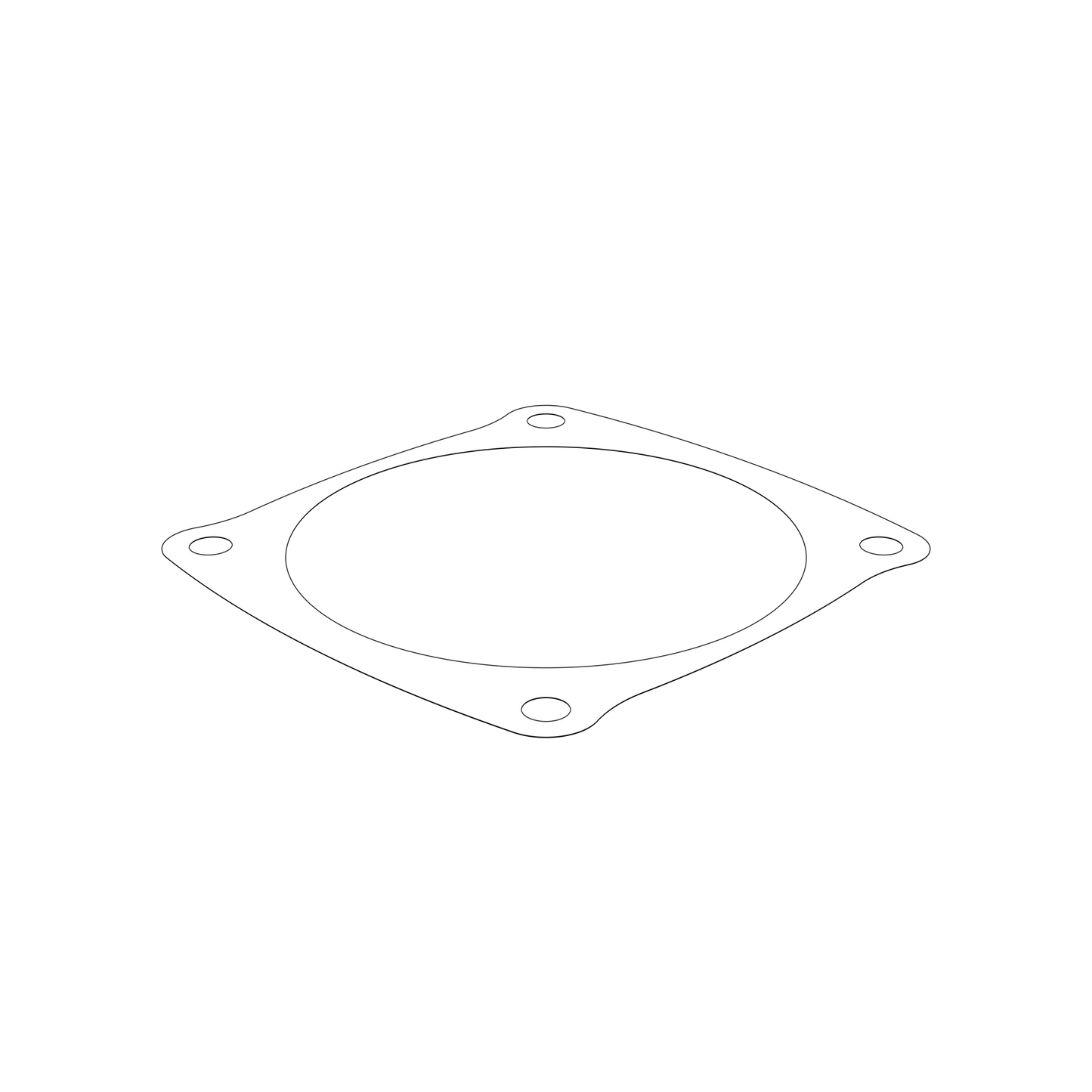

21522419 Shim | Genuine Volvo Penta Part

🔧 Product Description

A genuine 0.225mm precision shim used to set bearing position in applicable Volvo Penta DPH and DPR sterndrive universal-joint or bearing-carrier assemblies. The intermediate thickness allows fine adjustment when the standard 0.10mm, 0.15mm or 0.25mm shims do not produce the specified clearance.

🚤 Compatibility

Typically suits:

• Volvo Penta DPH-D1
• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D4-260A-F
• Volvo Penta D4-300A-F
• Volvo Penta D6-300A-F
• Volvo Penta D4-225A-F
• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta D6-400A-G
• Volvo Penta D6-400A-F
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-300A-G

• Engine Family: DPH, D
• HP Range: 150-400 HP
• Year Range: Approximately 2009 - 2020 production-era applications

⚙️ Key Features

• Genuine Volvo Penta precision shim
• Nominal thickness: 0.225mm
• Provides fine bearing-preload adjustment
• Used in the sterndrive universal-joint / bearing-carrier stack
• Must be selected from measured assembly clearance
• Engine type: Volvo Penta DPH / DPR sterndrive
• TH=0.225mm (Volvo assembly listing)
• Also supersedes Volvo part number 3863319

🔌 Function

Fine-tunes the axial location of the bearing or shaft assembly to achieve the correct preload or end float.

⚠️ Common Signs of Failure

• Persistent end play after assembly
• Bearing heat from an over-tight stack
• Gear whine or vibration
• Seal leakage from incorrect shaft alignment
• Premature bearing damage

🛠️ Service Notes

• Shims are supplied in graded thicknesses and exist to bring a setting into specification, so measure with a micrometer and select the thickness the setting procedure for your engine calls for rather than matching one by eye
• Note which shim came from which position on removal and keep them identified — once an assembly has bedded in, shims are not interchangeable between positions
• Check both faces are clean, flat and free of burrs, corrosion and old sealant before fitting; dirt trapped under a shim shifts the setting as surely as the wrong thickness does
• Discard any shim that is dished, cracked, pitted or fretted rather than reusing it, and make sure no old shim has been left behind in the recess
• Recheck the clearance or setting after the assembly is tightened down, because clamping load can change the measurement you took loose

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21522419 → Supersedes 3863318

OEM / Related Numbers

• 3863318 earlier number superseded by this part
• 3887297 - complete universal joint
• 3843136 - universal-joint spider kit
• 3863084 - sealing ring
• 11043 - roller bearing
• 21511540 - bearing box
• 21522416 - 0.10mm shim
• 21522417 - 0.15mm shim
• 21522420 - 0.25mm shim
• 984290, 984291, 984292, 984293 - additional adjustment shims

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
