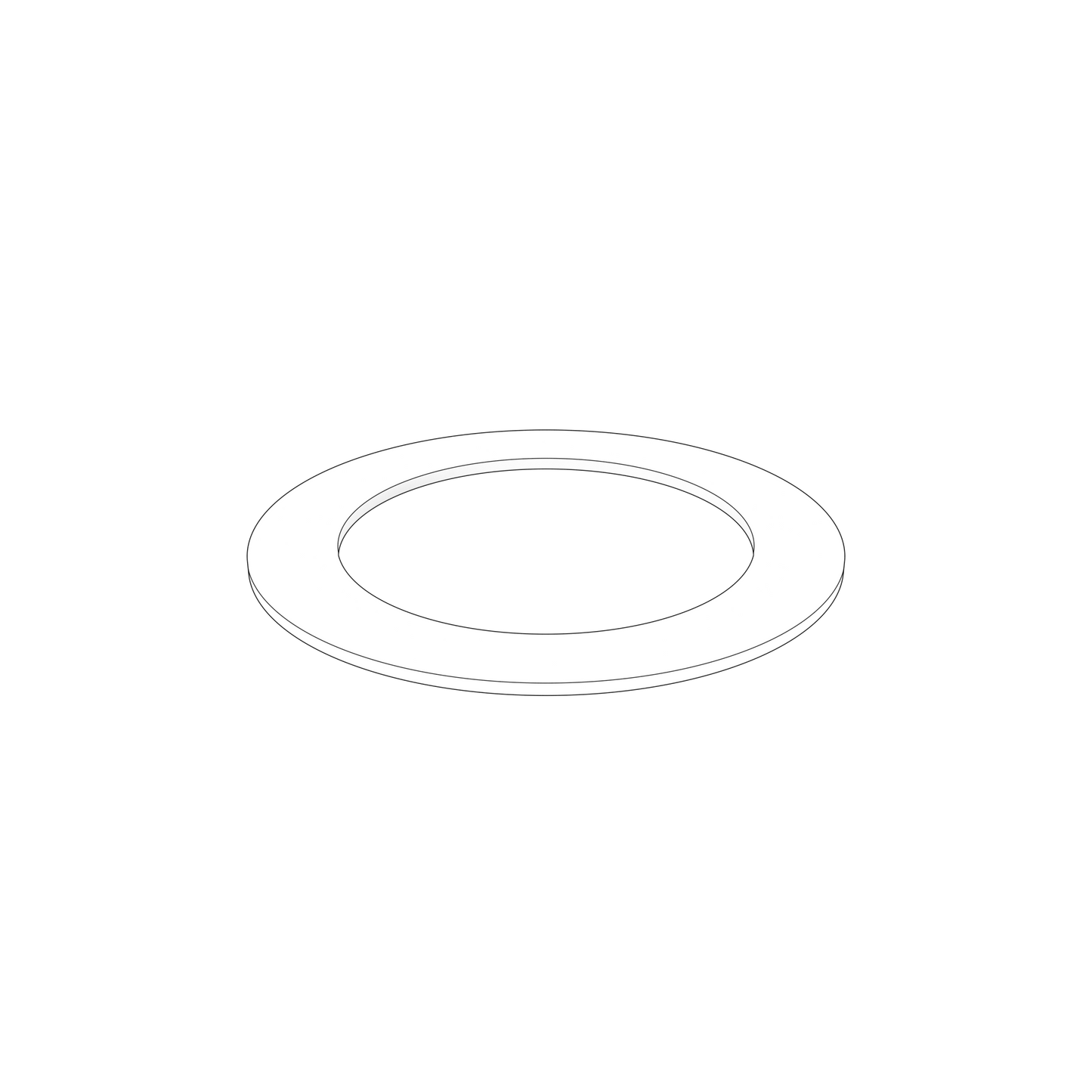

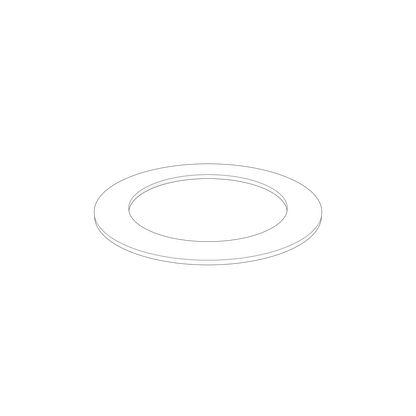

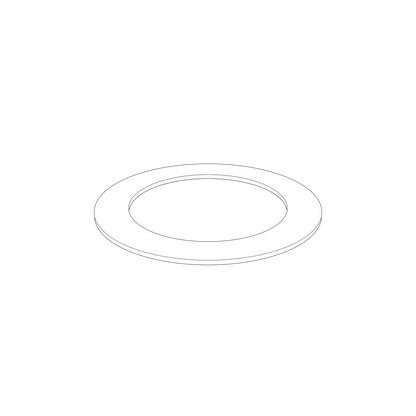

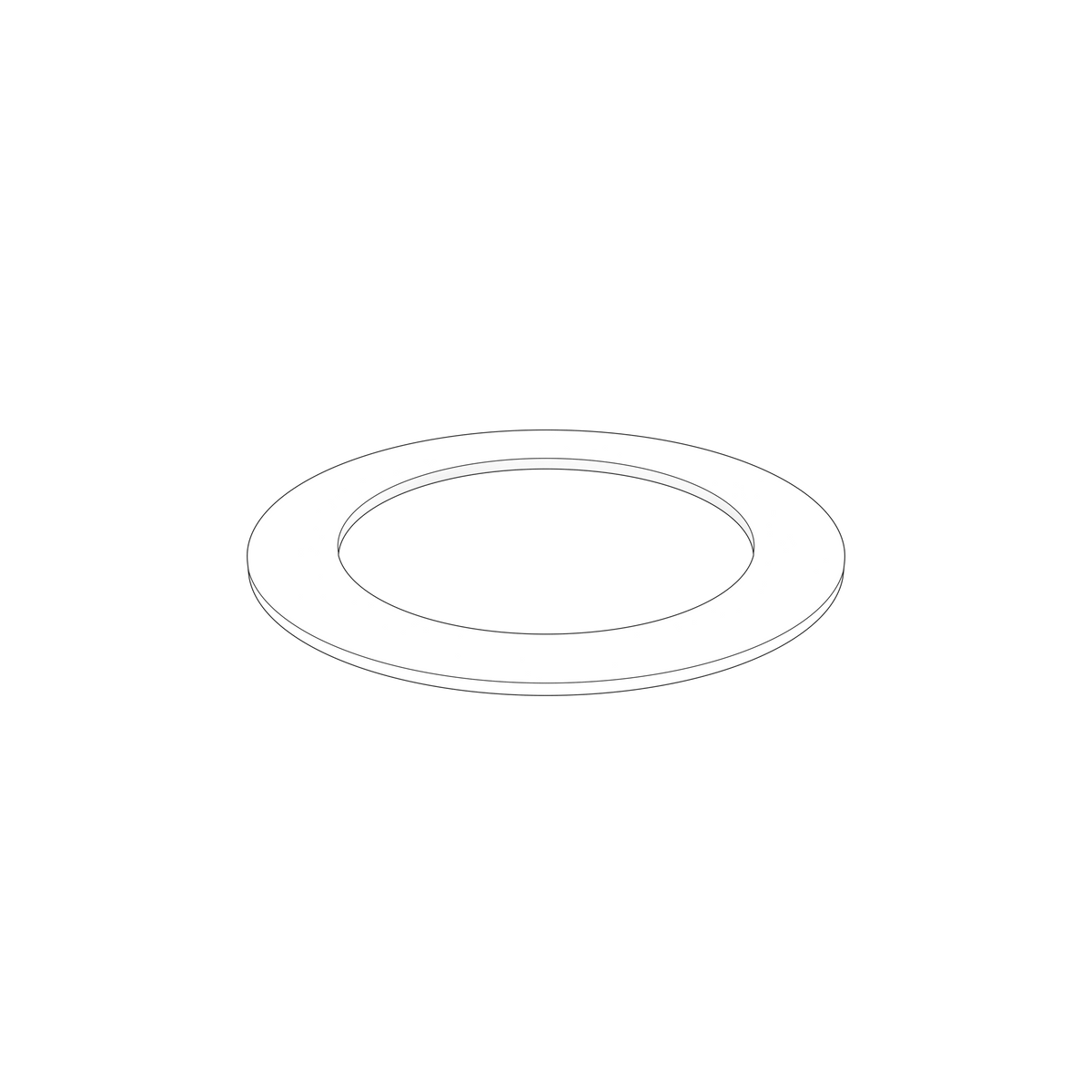

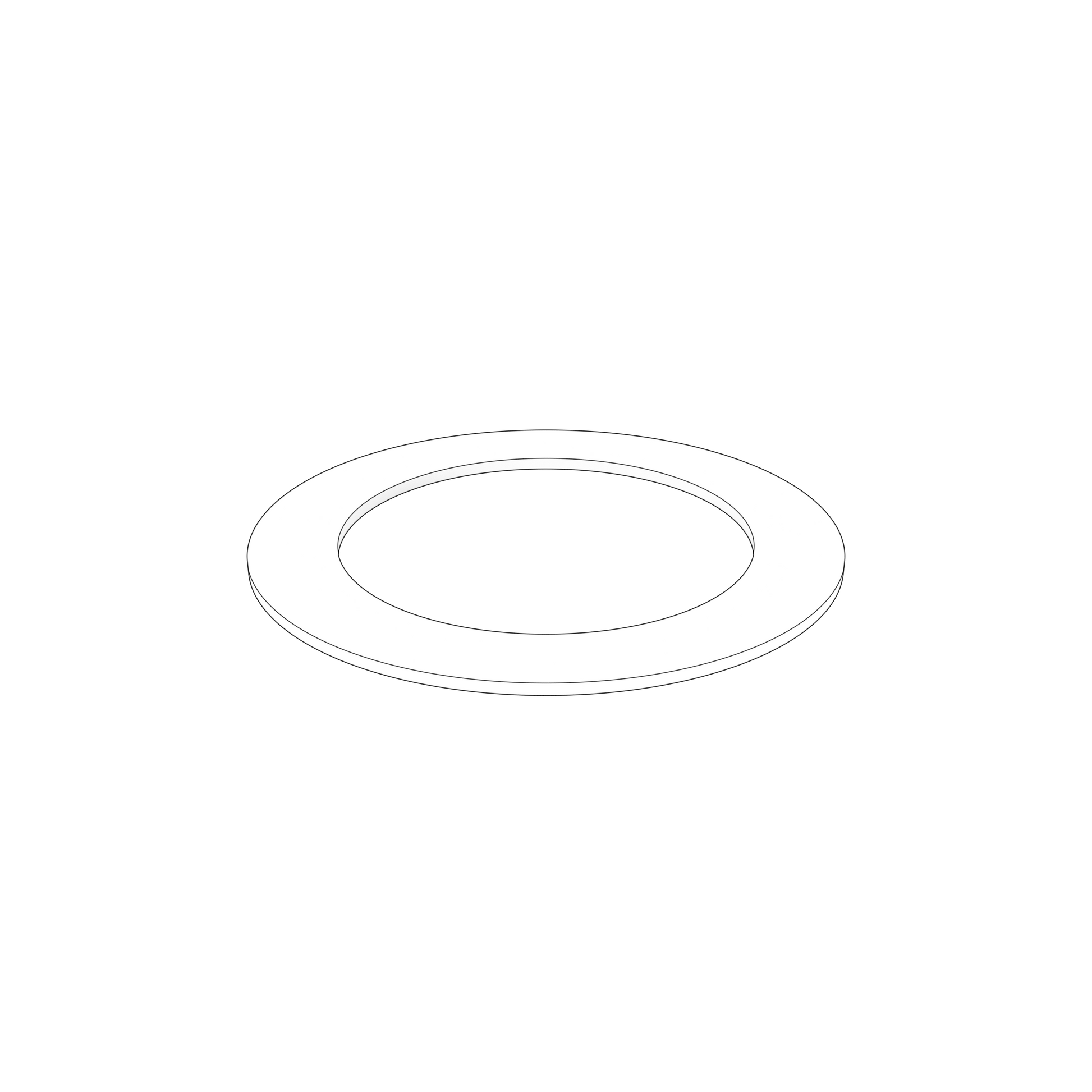

21533895 Disc Spring | Genuine Volvo Penta Part

🔧 Product Description

Belleville-type disc spring used inside the bearing-housing and clutch/piston assembly of Volvo Penta IPS drives. The spring applies the designed axial preload to the associated bearing, piston or disc pack and maintains controlled engagement as the assembly moves and wears.

🚤 Compatibility

• Engine Family: IPS, D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta IPS disc spring
• Used inside IPS bearing-housing assemblies
• Provides controlled axial preload
• Specified for IPS15, IPS2, IPS20, IPS3 and IPS30 variants
• Precision spring rate and installed height
• 2 used per assembly

🔌 Function

Applies axial preload within the IPS bearing/clutch assembly to control movement, engagement and bearing end play.

⚠️ Common Signs of Failure

• Excessive end play
• Harsh or delayed clutch engagement
• Flattened, cracked or heat-discoloured spring
• Abnormal transmission noise
• Incorrect bearing preload after overhaul

🛠️ Service Notes

• Two of these springs are used per assembly — renew them as a pair, not individually, and fit them the correct way round, since the cone direction sets the preload
• Confirm which IPS variant (IPS15, IPS2, IPS20, IPS3 or IPS30) the drive is before ordering, as disc springs in the IPS range are not shared across every model
• Measure the free height of the old springs before reusing any — a disc spring that has settled under load still looks sound but no longer gives the intended preload

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21533895 → Supersedes 21298370

OEM / Related Numbers

• 21298370 earlier number superseded by this part

Other-Brand OEM Numbers

• VOE21533895

Aftermarket / Verified Equivalents

• Associated bearing housing: 3818911
• Associated disc kit: 22641260
• Associated lock ring: 3883485

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta IPS2-C, IPS2-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
