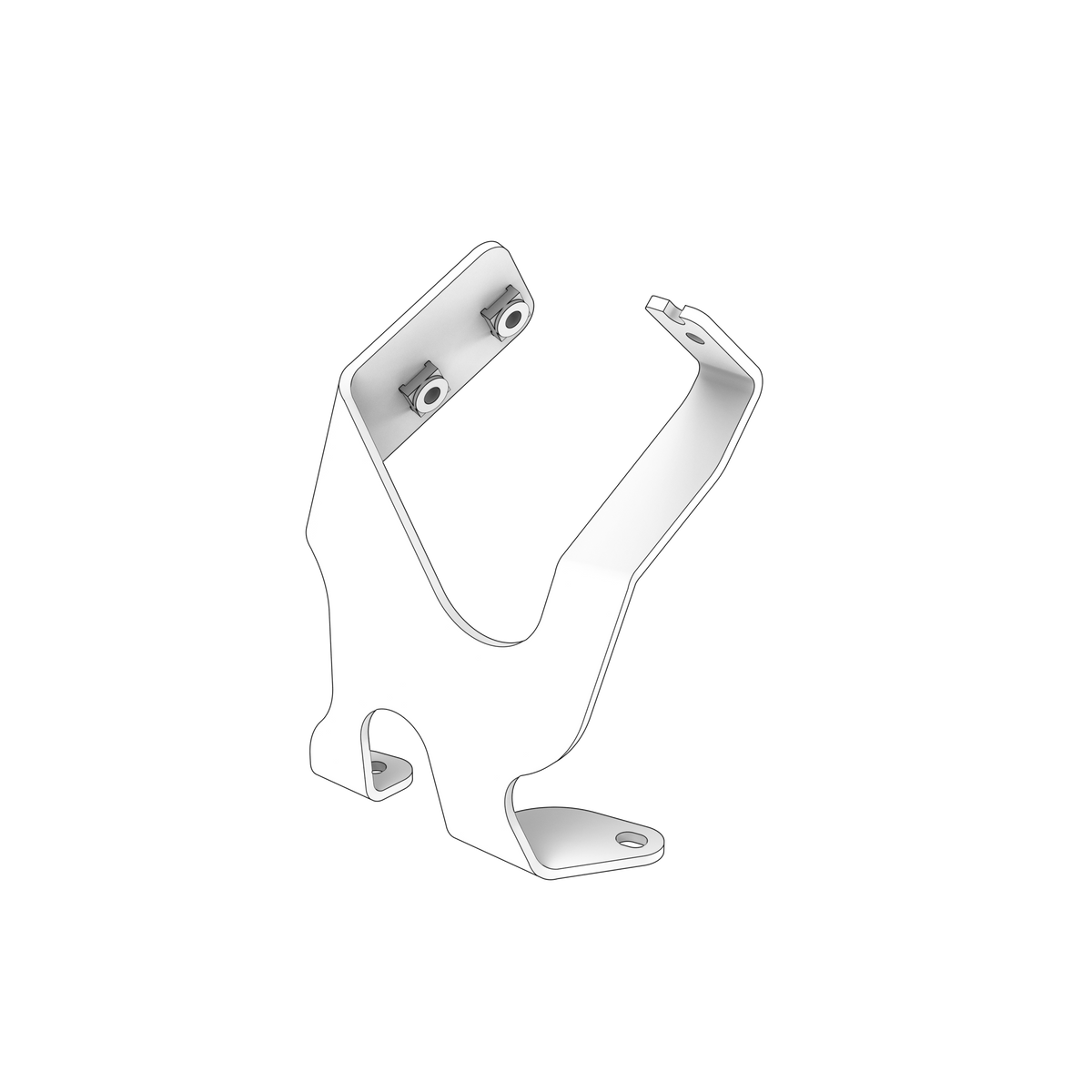

21549291 Bracket | Genuine Volvo Penta Part

🔧 Product Description

A support bracket used in the lubricating-oil system of Volvo Penta D13B-E MG fixed-engine generating-set installations.

🚤 Compatibility

• Engine Family: D, TAD

Full model list at the end of this description.

⚙️ Key Features

• Lubricating-oil system bracket
• Supports the oil-filler hose and adjoining components
• Correct D13B-E MG mounting profile
• Prevents hose vibration and chafing
• Designed for the associated clamp and hose hardware

🔌 Function

The bracket positions the oil-filler hose and prevents its weight and vibration from being transferred into the pipe and filler connections.

⚠️ Common Signs of Failure

• Oil-filler hose moving or rubbing
• Repeated hose-clamp or fastener loosening

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21549296 - Related hose
• 961670 - Hose clamp
• 20808091 - Oil filler pipe
• 20807510 - Oil filler cap
• 20365079 - Rubber washer
• 20739547 - Flange screw
• 21668618 - Related oil pans
• 22303327 - Related oil pans
• 21668195 - Related oil pans

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C2-A MG, D13C1-A MG
• Volvo Penta TAD1340VE
• Volvo Penta TAD1341VE
• Volvo Penta TAD1342VE
• Volvo Penta TAD1343VE
• Volvo Penta TAD1344VE
• Volvo Penta TAD1345VE
• Volvo Penta TAD1350VE
