21571774 Elbow | Genuine Volvo Penta Part

🔧 Product Description

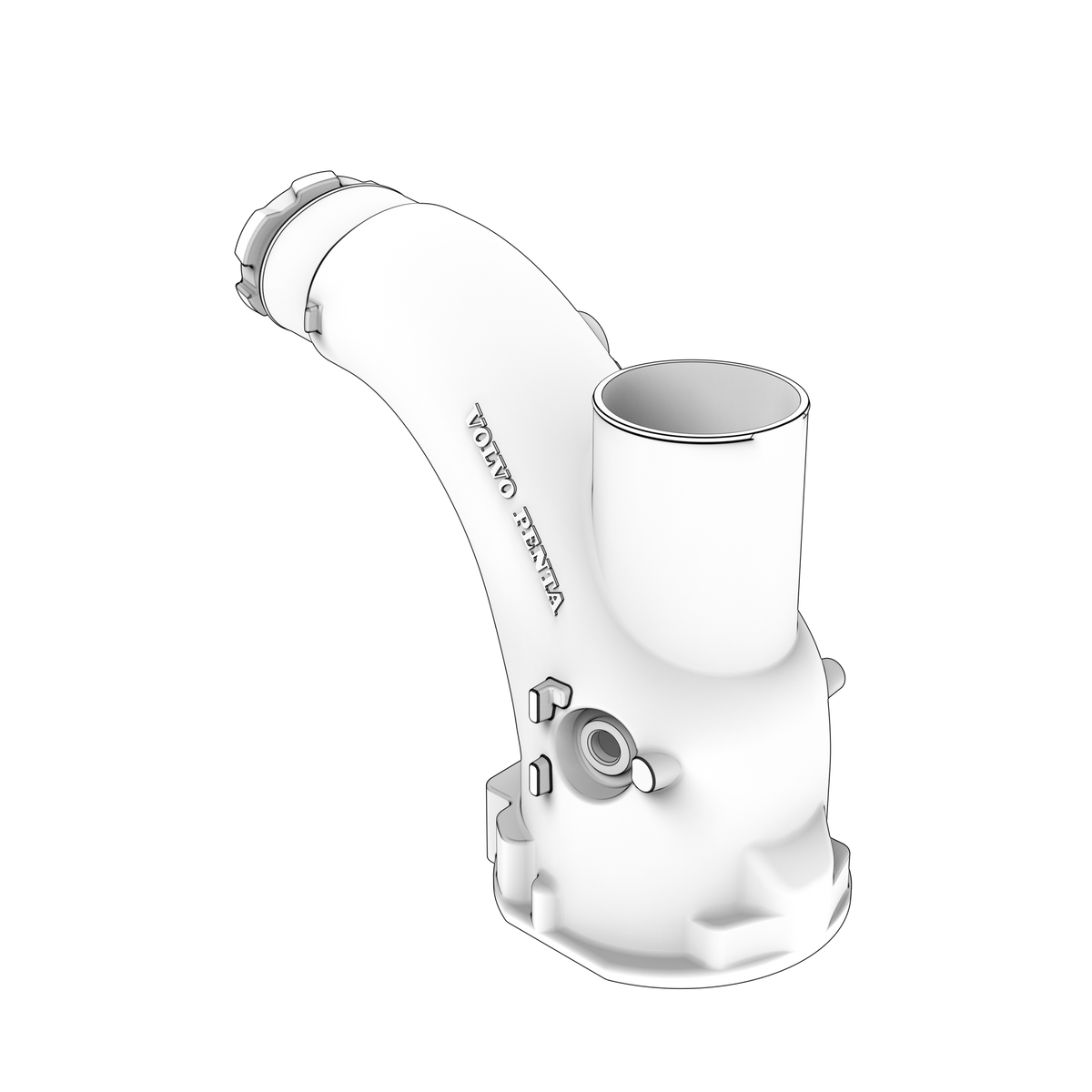

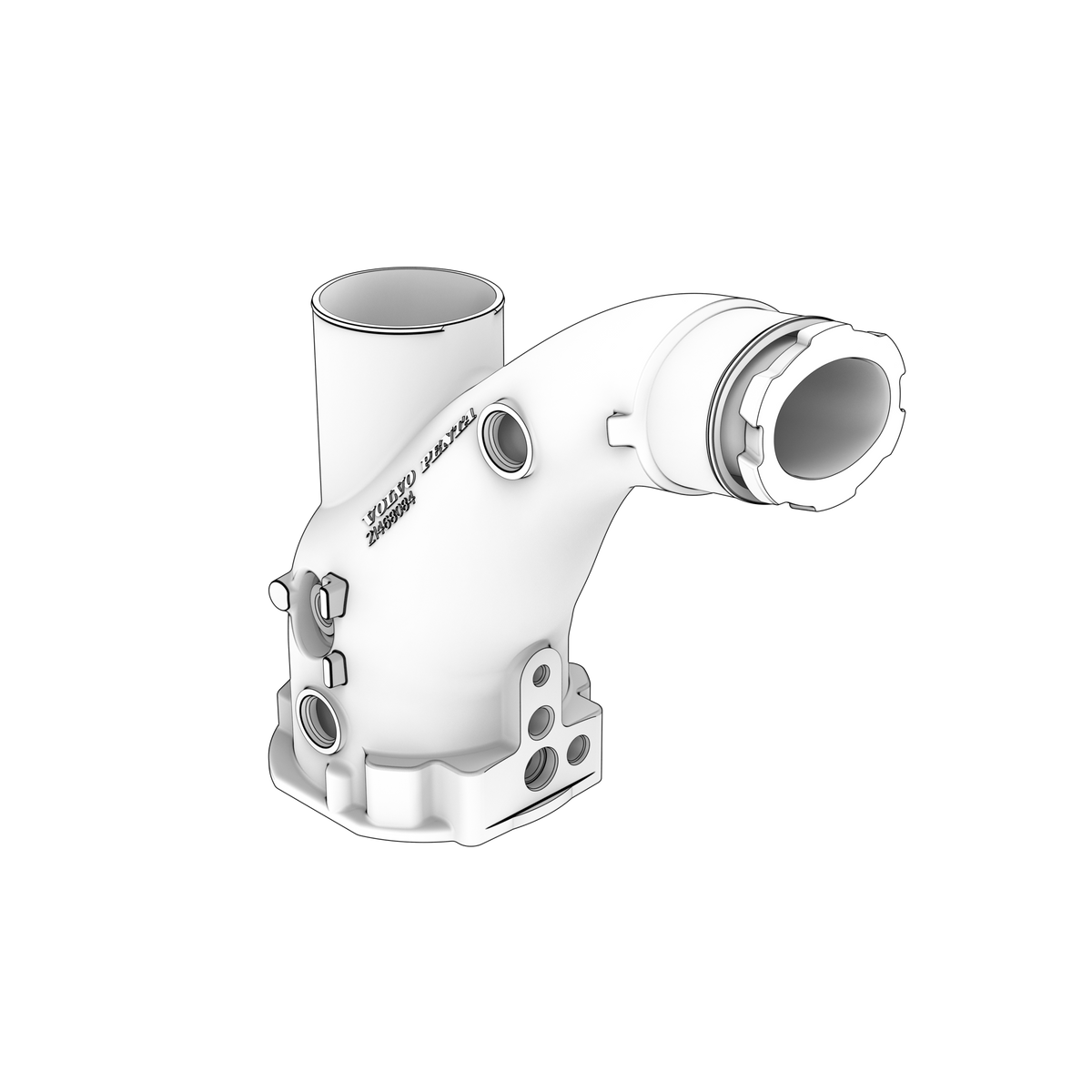

Side-specific water-jacketed exhaust elbow used in Volvo Penta 5.0L and 5.7L catalyst-engine exhaust systems. It provides the factory transition between the manifold, catalytic converter and downstream exhaust while retaining the required coolant and oxygen-sensor clearances.

🚤 Compatibility

• Engine Family: V
• HP Range: 225-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Exact catalogue fitment across 5.0GiC/GXiC and 5.7GiC/GXiC catalyst engines
• Freshwater-cooled aluminium construction
• Approximately 6.85 kg
• Side- and production-revision-specific
• Original flange and sensor geometry
• Engine type: 5.0- or 5.7-litre V8 marine petrol engine

🔌 Function

Routes exhaust and cooling flow through the designed bend between the manifold and catalytic converter.

⚠️ Common Signs of Failure

• Exhaust ticking or soot around the flange
• Coolant leakage or unexplained coolant loss
• Internal corrosion or blocked water passages
• Catalyst-efficiency faults caused by exhaust leakage

🛠️ Service Notes

• Clean the threads and sealing faces and check the bore is clear before fitting
• Fit new sealing washers, O-rings or gaskets where the original had them, and use thread sealant only where the manual calls for it — never on a joint that seals metal to metal on a cone or a machined face
• Set the elbow so the connection points the way the hose or pipe wants to run, with no strain, kinking or chafing on the line
• Tighten to the figure in the workshop manual for your engine and hold the mating fitting so it cannot turn with it
• Bring the system up to working pressure and temperature, check the joint, then check it again after the first proper run

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21571774 → Supersedes 21468086 → Supersedes 21458379 → Supersedes 21236267

OEM / Related Numbers

• 21468086 earlier number superseded by this part
• 21458379 earlier number superseded by this part
• 21468084 earlier number superseded by this part
• 21236267 earlier number superseded by this part

Other-Brand OEM Numbers

• VOE21571774

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiCE-P, 8.1GiCE-Q, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-P, 5.7GXiCE-P, 5.7GiC-300-P, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXiC-270-R, 5.0GXiCE-270-R
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-C-A, V8-270-CE-A
