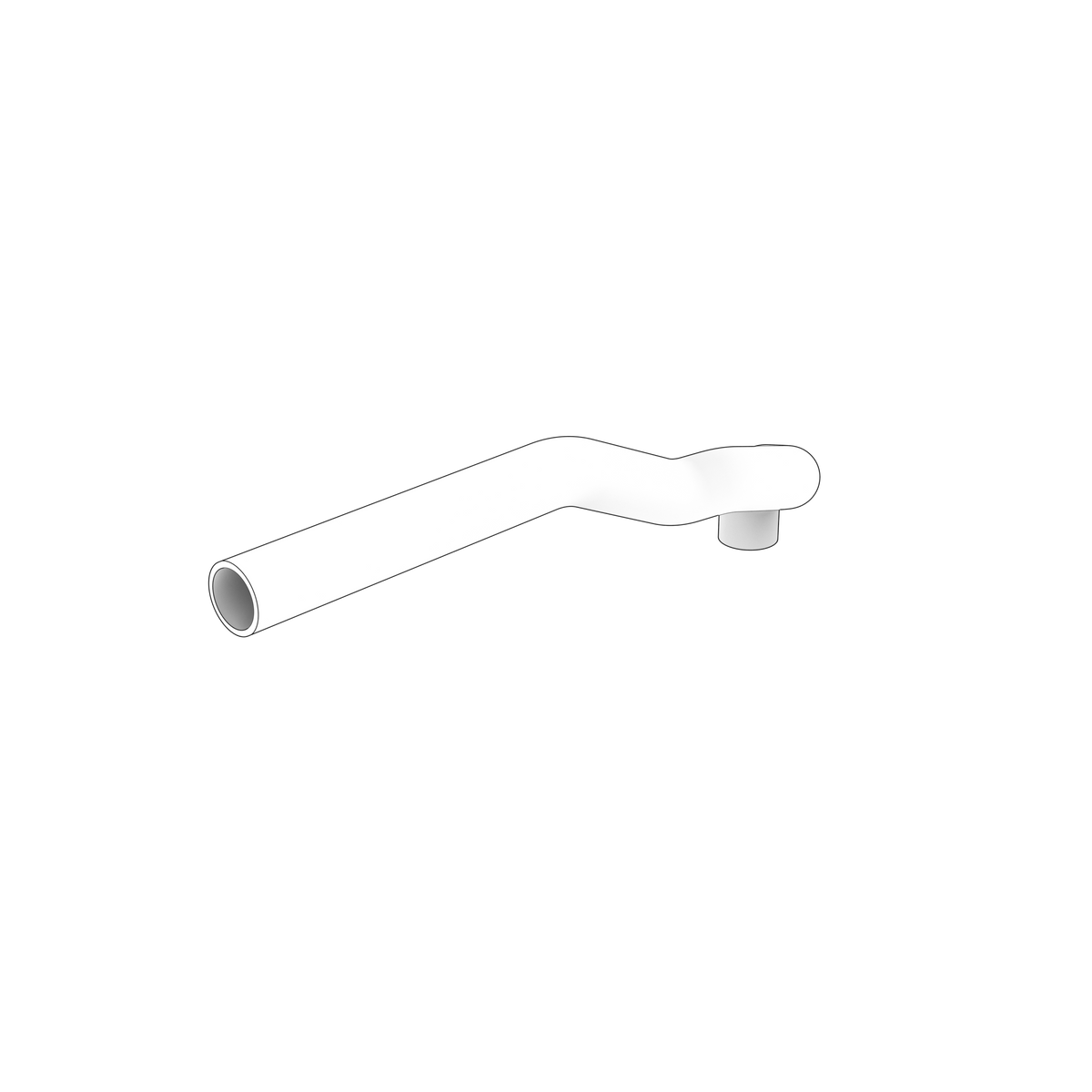

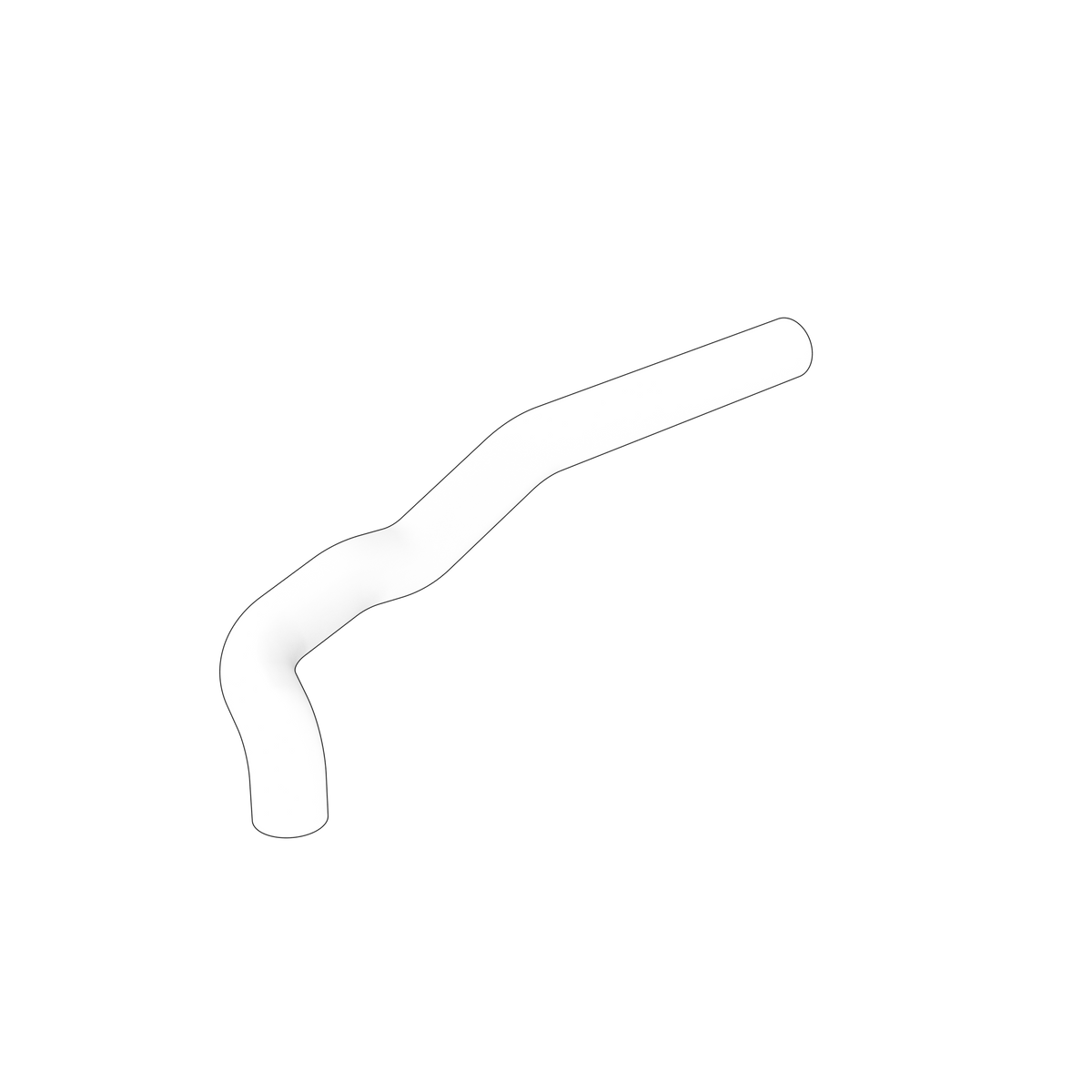

21576047 Hose | Genuine Volvo Penta Part

🔧 Product Description

Moulded cooling hose for the low-rating Volvo Penta D6-G charge-air cooler system. It carries cooling medium between the cooler, seawater pump/filter and adjoining pipework using the exact factory bend and connection diameters.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Full D6-300/340/380 A/D/I-G fitment
• Factory moulded shape
• Marine coolant/seawater-resistant material
• Correct clamp locations and end sizes
• Direct replacement for the original hose
• Engine type: 5.5-litre inline-six turbocharged marine diesel

🔌 Function

Transfers cooling medium through the charge-air cooler circuit to control intake-air temperature.

⚠️ Common Signs of Failure

• Soft, swollen or cracked hose
• Collapsed hose and overheating
• Salt staining around clamps
• Hose chafe or poor alignment

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• VOE21576047

Aftermarket / Verified Equivalents

• Associated charge-air cooler: 21776918
• Associated housing: 21692360

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
