21580932 Steering Gear | Genuine Volvo Penta Part

🔧 Product Description

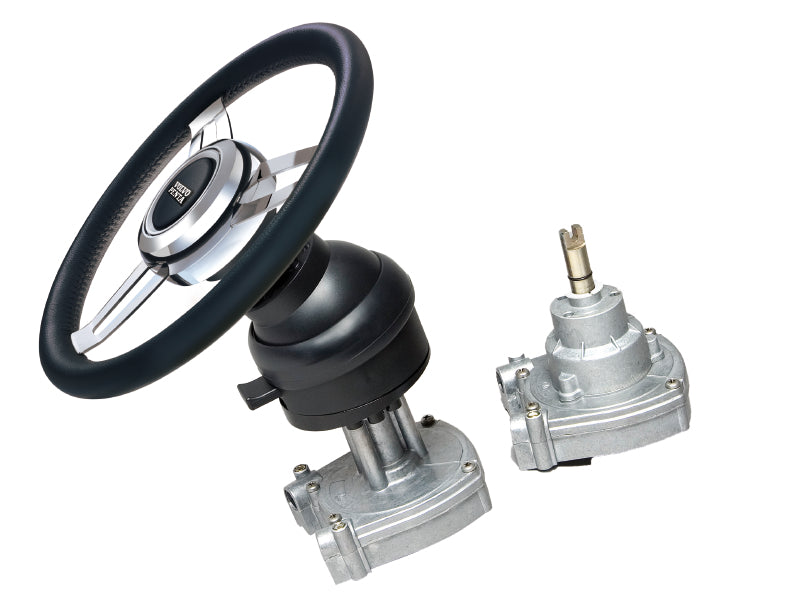

Genuine Volvo Penta planetary helm gear for tilt mount, the standard feedback version, weighing 1.978 kg and listed for 7 applications across the D-series and VMM ranges. It uses the three satellite planetary gear design for a good reduction ratio with minimum effort and less torque feedback than a single pinion helm. The tilt mechanism is not included and has to be ordered separately - 22299003 is that mechanism, giving five locking positions across a 48 degree range.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D6-440I-G
• Volvo Penta D6-480I-G
• Volvo Penta D6-440I-WJ-G
• Volvo Penta D6-300I-G
• Volvo Penta VMM-A

• Engine Family: D, VMM
• HP Range: 300-480 HP
• Year Range: Approximately 2010 - current production-era applications

⚙️ Key Features

• Planetary helm gear for tilt mount
• Standard feedback, so the drive loads are felt at the wheel
• Three satellite planetary gear design
• Requires tilt mechanism 22299003, ordered separately
• 1.978 kg, listed for 7 applications across the D-series and VMM ranges
• Planetary gear design with three satellite gears
• Optimum reduction ratio with minimum physical effort
• Increased efficiency and less torque feedback than single pinion gear helms
• Fits: Volvo Penta mechanical steering systems

🔌 Function

Transfers steering wheel input into steering cable travel on a helm whose angle can be adjusted, with normal steering feel returned to the wheel.

⚠️ Common Signs of Failure

• Excessive steering play
• Rough or inconsistent wheel movement
• Tilt assembly moving or failing to hold its angle
• Planetary gears clicking or skipping
• Loose shaft, worn bearings or a corroded cable connection

🛠️ Service Notes

• The tilt mechanism 22299003 is a separate order, and it is the same mechanism used by the tilt mount hydraulic helm pumps
• 3818027 is the no-feedback version of this tilt mount helm, for installations where the wheel must hold its position under propeller load
• Bezel kits are for the rear mount helms 21580928 and 21580930, not for a tilt installation
• Requires tilt mechanism 22299003, which must be ordered separately
• Four helm gears are listed, separated by rear mount against tilt mount and standard against No-Feedback

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21580932 → Supersedes 3818025

OEM / Related Numbers

• 3818025 earlier number superseded by this part
• 3818096 - 70° black mounting kit
• 3883508 - 70° white mounting kit
• 21580825 - 90° black mounting kit
• 3848176-3848185 - 2.0m to 4.25m steering cables
• 3848252-3848255 - 4.5m to 5.25m steering cables
• 3848347-3848360 - 5.5m to 8.75m steering cables
• 3848517 - 9.0m steering cable
• 3843317 - related steering wheels
• 21729995 - related steering wheels
• 21649809 - related steering wheels
• 21673214 - related steering wheels
• 160807 - woodruff key
• 990990 - lock nut

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
