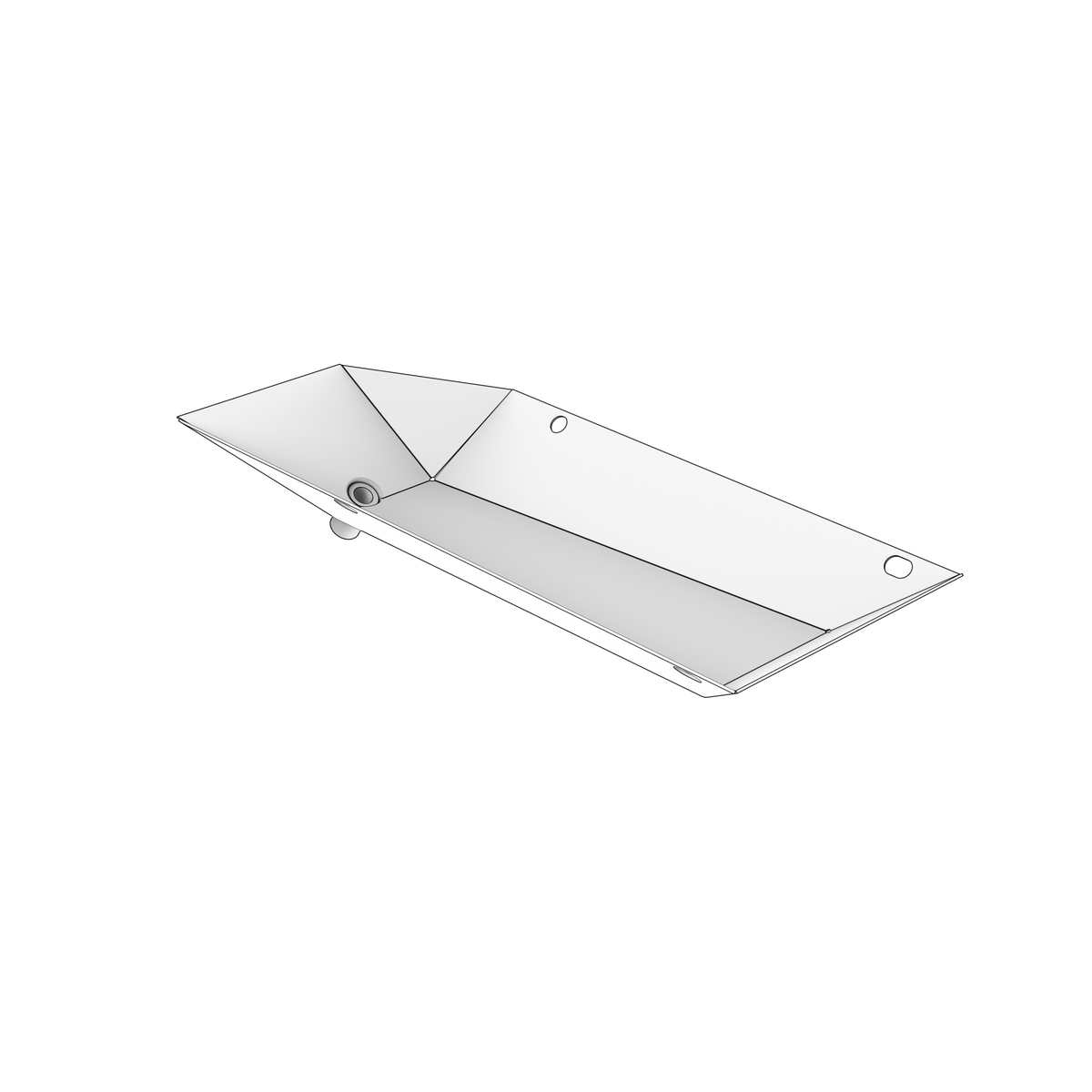

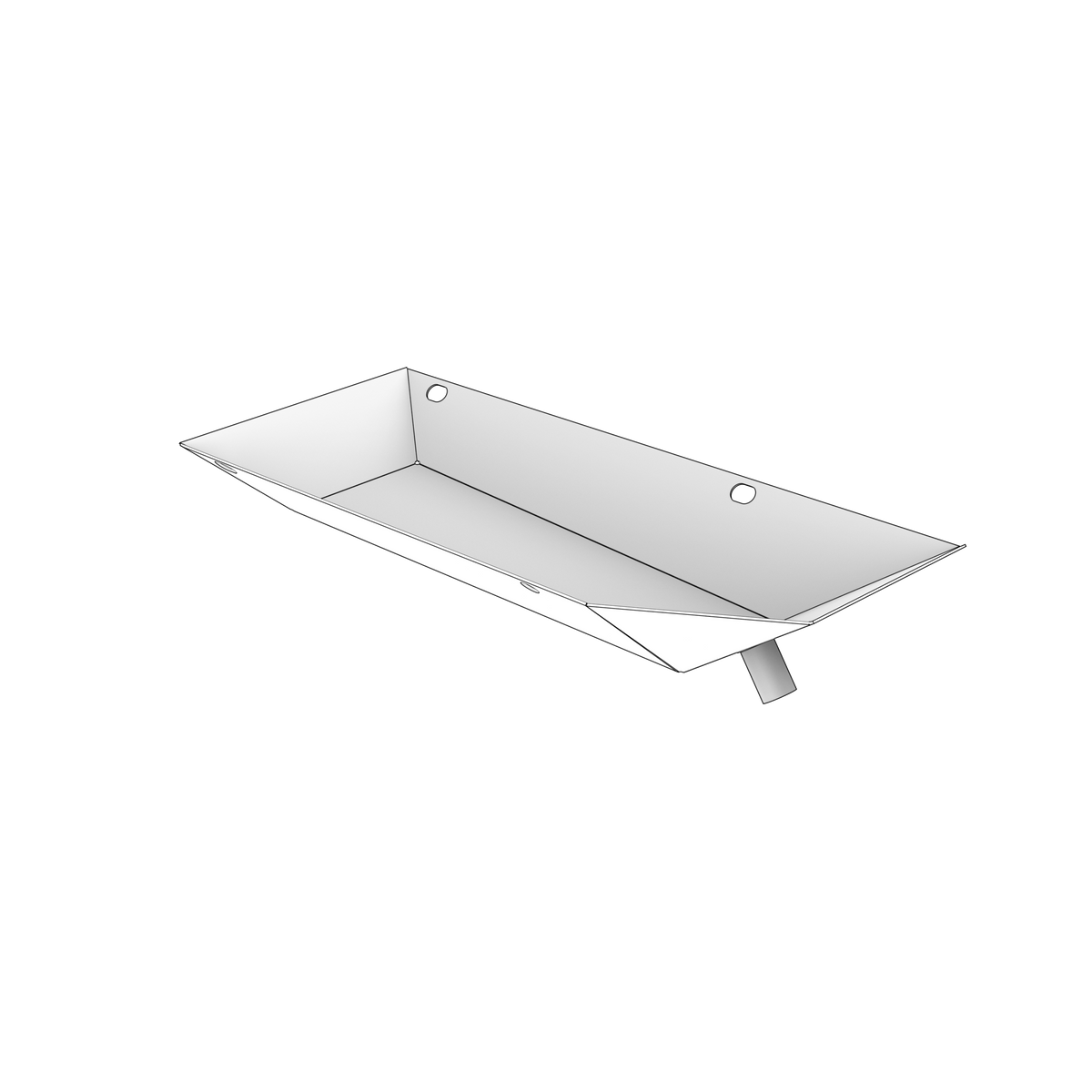

21587977 Spill Plate | Genuine Volvo Penta Part

🔧 Product Description

Internal spill plate fitted in the engine lubrication/oil-pan assembly of the listed Volvo Penta D16 marine engines. It controls oil movement inside the sump so the oil pickup remains supplied during vessel acceleration, trim and roll.

🚤 Compatibility

Typically suits:

• Volvo Penta D16C-A MG
• Volvo Penta D16C-A MH
• Volvo Penta D16C-B MH
• Volvo Penta D16C-C MH
• Volvo Penta D16C1-E MG
• Volvo Penta D16C1-F MG
• Volvo Penta D16C2-E MG
• Volvo Penta D16C2-F MG
• Volvo Penta D16C-D MH
• Volvo Penta D16C1-E MH
• Volvo Penta D16C1-F MH
• Volvo Penta D16C2-E MH
• Volvo Penta D16C2-F MH

• Engine Family: D

⚙️ Key Features

• Genuine Volvo Penta oil-pan spill plate
• Used within the D16 lubrication-system sump assembly
• Controls oil surge and splash inside the oil pan
• Supports stable oil pickup under vessel movement
• Designed to install with the original oil pan and fasteners
• Engine type: 16.1-litre inline six-cylinder turbocharged diesel marine generator or propulsion engine

🔌 Function

Baffles oil movement inside the sump, helping keep the pickup submerged and reducing aeration and uncontrolled oil splash.

⚠️ Common Signs of Failure

• Low or fluctuating oil pressure during vessel movement
• Rattling from a loose or damaged internal plate
• Cracks or fatigue around mounting points
• Oil aeration or foaming
• Damage discovered during oil-pan removal or overhaul

🛠️ Service Notes

• Fit the plate the way round the manual shows, so it does its job of keeping oil settled around the pickup as the boat moves
• Check it sits clear of the oil pickup, the level sensor and anything that moves, and that the sump can still drain fully
• Clean sludge and debris off the plate and out of the sump while it is out, and note what has collected there before refitting
• Renew the locking hardware on the fixings and tighten to the figure in the workshop manual for your engine — a fastener dropped into a running sump does serious damage
• Renew the sump gasket or sealing compound whenever the pan has to come off to reach the plate

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 23513612 oil pan

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
