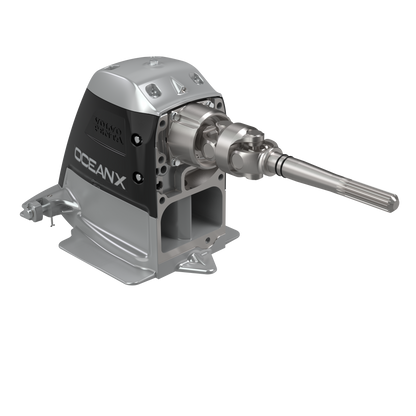

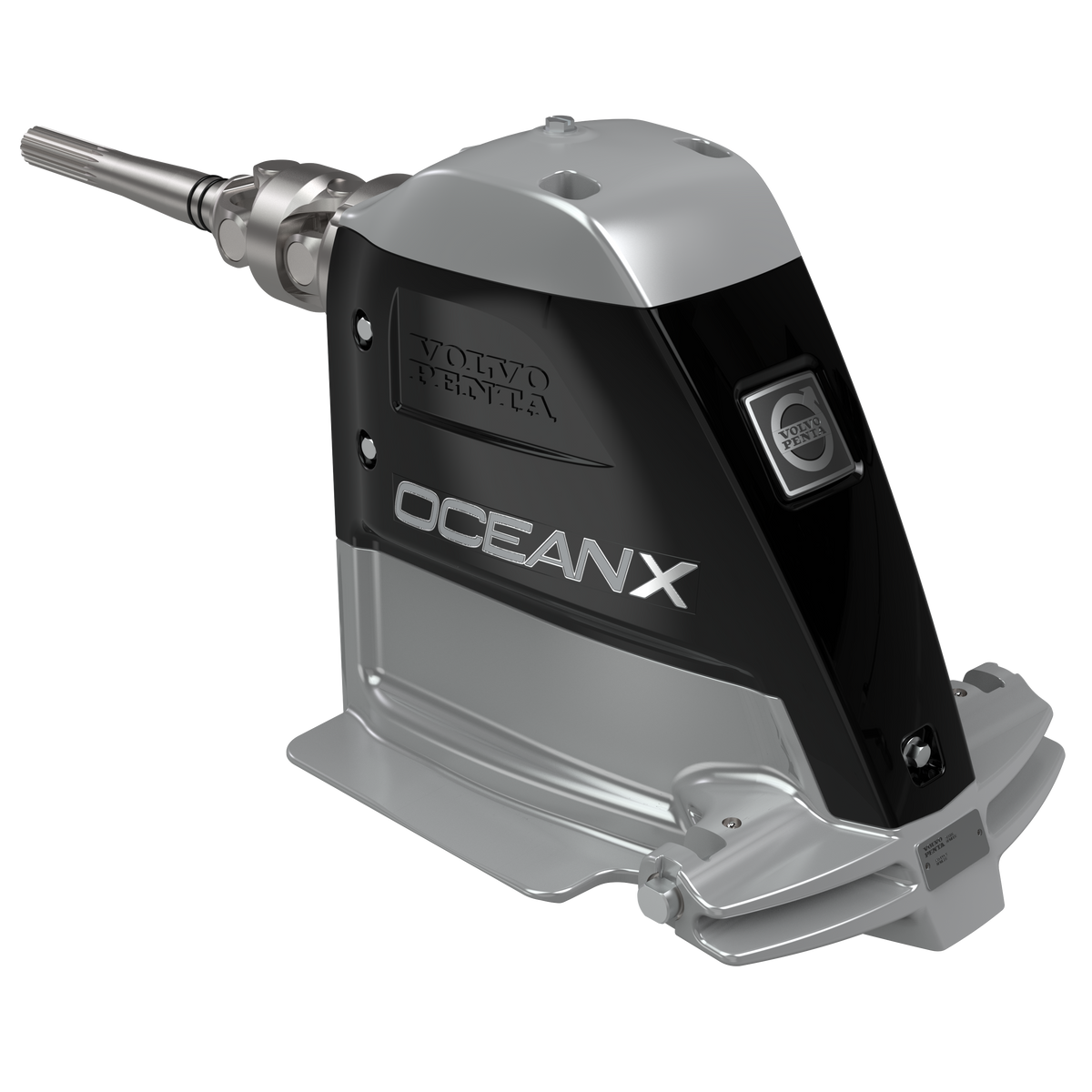

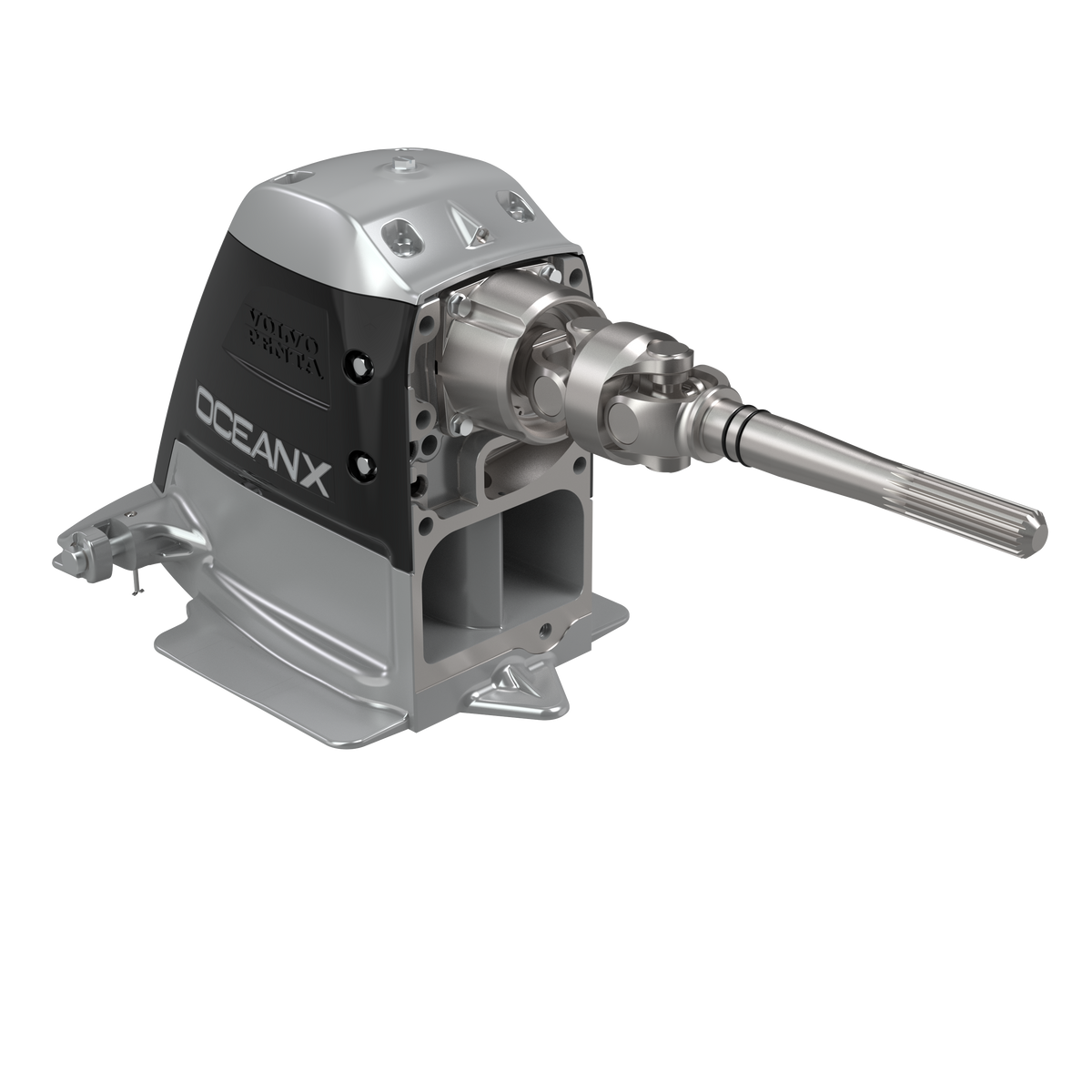

21592053 Upper Gear | Genuine Volvo Penta Part

🔧 Product Description

Complete upper-gear assembly used in the listed Volvo Penta DPS and FWD sterndrive families. It contains the upper transmission gearing and bearing arrangement for the specified drive ratio and transfers engine torque into the vertical drive train.

🚤 Compatibility

• Engine Family: D, V, DPS
• HP Range: 110-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta complete upper-gear assembly
• Used with documented 1.68:1, 1.78:1 and 1.95:1 drive configurations
• Factory gear geometry, bearings and housing interfaces
• Supports DPS-A/DPS-B/DPS-D and FWD drive families
• Drive ratio and complete drive product number must match before installation
• Engine type: Volvo Penta sterndrive transmission assembly

🔌 Function

Changes direction of rotation and transmits engine torque from the input shaft to the vertical shaft and lower gear unit.

⚠️ Common Signs of Failure

• Gear whine, rumble or knocking
• Overheating or discoloured lubricant
• Excess shaft play or seal leakage
• Loss of drive or damaged gear teeth/bearings

🛠️ Service Notes

• The upper gear is part of a shimmed, matched assembly — record and keep the original shims as you strip it, and set gear backlash and bearing preload or rolling torque to the procedure and figures in the workshop manual for your drive
• Fit gears as a set; running a new pinion against an old, worn gear leads quickly to noise and a second failure
• Fit new seals, O-rings and lock rings whenever the housing is opened, and wash the housing out thoroughly so no metal from the old failure is left in it
• Inspect the driveshaft splines, universal joints and bearing carriers while you have the access, and read the drive oil you drained — water or metal in it tells you what actually failed
• Refill with the specified drive oil to the correct level, pressure- or vacuum-test the housing where the manual calls for it, and check for noise and for water in the oil after the first run

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21592054 alternate upper-gear catalogue reference
• 3869464 drive reference — 1.68:1
• 3869465 drive reference — 1.78:1
• 3869466 drive reference — 1.95:1

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta 8.1GiC-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7Gi-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P
• Volvo Penta V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-280-CE-N, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta DPS-A OXI, DPS-B OX, DPS-B1 OX
